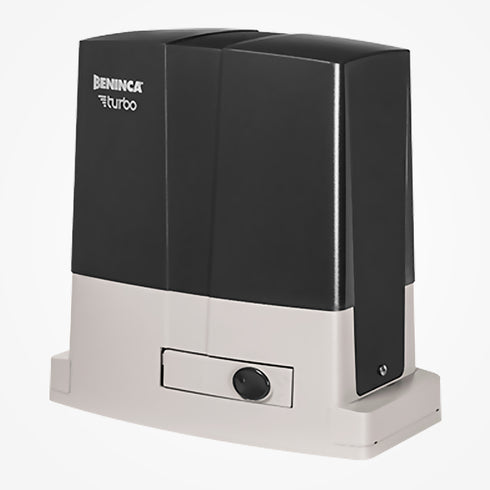

BULL 624 TURBO Fast 24 Vdc Sliding Gate Gear Motor
Fast 24 Vdc gear motor designed for intensive commercial sliding gate applications with integrated control unit and virtual encoder. It delivers high speed movement, precise torque management, and advanced safety through obstacle detection. The top mounted control unit simplifies wiring, while self programming and battery backup ensure reliable operation even during power failures. Suitable for heavy gates up to 600 kg, it offers smooth slowing down phases and consistent performance in demanding environments. :contentReference[oaicite:0]{index=0}
- Fast opening speed up to 25.5 m per minute for heavy sliding gates
- Virtual encoder ensures smooth motion control and enhanced safety
- Integrated control unit simplifies installation and wiring procedures
- Anti crushing system with amperometric obstacle detection
- Supports battery backup and advanced automation accessories
Fast 24 Vdc gear motor designed for intensive commercial use with integrated control unit and virtual encoder for smart automation.
Switching power supply 115/230 Vac minimizes energy consumption and enhances actuator lifespan.
Top-mounted control unit simplifies wiring, improving installation efficiency and accessibility.
Virtual encoder ensures precise control of slowing phases, movement tracking (STC system), and torque management based on gate position.
Enables quick self-programming using a radio transmitter during initial setup for faster deployment.
Features an anti-crushing system with amperometric obstacle detection to ensure user and equipment safety.
Equipped with a safety sensor that disconnects motor power during release operations for enhanced protection.
Supports integration with KNX domotics through X.BE accessory, app-based programming via BeUP, and PRO.UP interface.
Ensures uninterrupted operation during power failures with battery backup that fits directly into the motor housing.
Capable of controlling opposed sliding gates using the SIS accessory for synchronized movements.
Delivers exceptional performance with speeds up to 25.5 m/min for gates weighing up to 600 kg.
Built to operate reliably in temperatures ranging from -20°C to +50°C with IP44 protection level.
Reinforced foundation plate (326x164.5x2 mm) included for secure installation; motor fixing distance 301x75 mm.
Integrated receiver and magnetic limit switches ensure precise, responsive control and positioning.
Compact and lightweight design with 10 kg motor weight, allowing 40 motors per pallet for efficient logistics.
| MODEL NAME | BULL624 TURBO |
| TYPE | Fast 24 Vdc gear motor with integrated control unit |
| APPLICATION | Sliding gates, intensive commercial use |
| POWER SUPPLY | 115 Vac / 230 Vac (50-60Hz) |
| MOTOR SUPPLY | 24 Vdc |
| MAXIMUM THRUST | 330 N |
| OPENING SPEED | 12.5 ÷ 25.5 m/min |
| DUTY CYCLE | 60% |
| MAX GATE WEIGHT | 600 kg |
| WEIGHT | 10 kg |
| KIT WEIGHT | 10.6 kg |
| N. MOTORS PER PALLET | 40 |
| N. KITS PER PALLET | 40 |
| PROTECTION LEVEL | IP44 |
| OPERATING TEMPERATURE | -20°C / +50°C |
| LUBRICATION | Grease |
| CONTROL UNIT | Built-in |
| RECEIVER | Integrated |
| ENCODER | Virtual encoder |
| LIMIT SWITCHES | Magnetic |
| PINION FOR RACK | M4 Z18 |
| SLOWDOWN MANAGEMENT | Virtual encoder and STC system |
| ANTI-CRUSHING SYSTEM | Amperometric obstacle detection |
| SAFETY SENSOR | Stops motor during release operations |
| KNX DOMOTICS INTEGRATION | Compatible via X.BE accessory |
| PROGRAMMING | App BeUP via PRO.UP interface |
| BATTERY BACKUP | Yes, batteries integrate inside motor |
| OPPOSED GATE OPERATION | Via SIS accessory |
| CABLE GUIDES | Practical integrated guides |
| SELF-PROGRAMMING | Available via radio transmitter on first install |
| FOUNDATION PLATE INCLUDED | Yes |
| FOUNDATION PLATE SIZE | 326 x 164.5 x 2 mm |
| MOTOR FIXING DISTANCE | 301 x 75 mm |
| FIXING HOLES | 4 holes Ø 8.5 mm |
| ENERGY SAVING | Switching power supply reduces consumption |
| LONG LIFESPAN | Enhanced by integrated design and efficient power |
BULL624 TURBO Geared Motor from Alfa Iris is engineered for fast, intensive use in commercial sliding gate applications. Operating on 24 Vdc with an integrated control unit and virtual encoder, this motor offers high-speed performance up to 25.5 m/min and is ideal for gates up to 600 kg. Designed for energy efficiency and advanced safety, it includes a switching power supply and anti-crushing system with amperometric detection.
Advanced Performance for Intensive Use
The BULL624 TURBO features a compact design with the control unit placed on top for easy wiring. It supports self-programming via radio transmitter, offers practical cable guides, and enables virtual encoder-driven tracking, torque management, and smooth deceleration. Built-in safety features like a sensor that disables power during release operations and optional battery backup ensure reliable operation even during power failures.
- High-speed operation: up to 25.5 m/min
- Integrated virtual encoder with STC movement tracking
- Amperometric obstacle detection for anti-crushing safety
- KNX domotics compatibility via X.BE accessory
- BeUP app and PRO.UP interface support for smart programming
- Battery backup support for uninterrupted operation
- Supports opposed gate operation with SIS accessory
Durable and Installation-Friendly
Supplied with a reinforced foundation plate for secure installation, the BULL624 TURBO is protected to IP44 standards and operates reliably in temperatures ranging from -20°C to +50°C. Designed for long service life with grease lubrication, the motor is ideal for professional gate automation systems requiring speed, precision, and durability.
- Reinforced foundation plate included (326x164.5x2 mm)
- Motor fixing distance: 301x75 mm with 4 Ø8.5 mm holes
- Weather protection: IP44
- Maximum gate weight: 600 kg
- Duty cycle: 60%
- Operating temperature: -20°C to +50°C
- Lubrication: Grease-based for extended durability
Technical Specifications
- Model: BULL624 TURBO
- Power Supply: 115 Vac / 230 Vac (50-60Hz)
- Motor Supply: 24 Vdc
- Max Absorbed Current: 5 / 3 A
- Maximum Thrust: 330 N
- Opening Speed: 12.5 ÷ 25.5 m/min
- Protection Level: IP44
- Integrated Control Unit: Yes
- Receiver: Built-in
- Encoder: Virtual
- Limit Switches: Magnetic
- Pinion: M4 Z18
- Weight: 10 kg (motor), 10.6 kg (kit)
- Kits per Pallet: 40
- Motors per Pallet: 40
