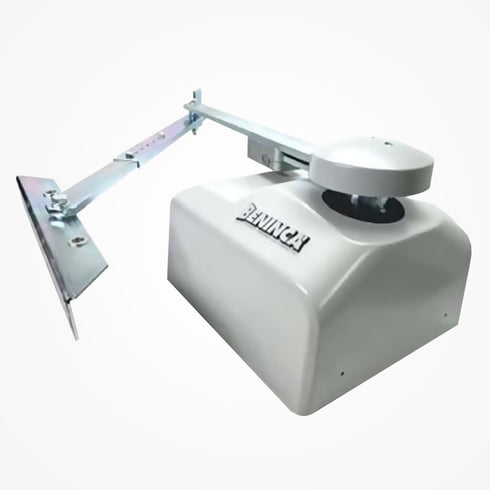

DU 24 FX Low Profile Swing Gate Automation Controller
The DU 24 FX is a compact and waterproof swing gate automation solution designed for demanding residential and commercial environments. Its direct drive sealed gearbox ensures silent and reliable movement with minimal maintenance. The elegant low profile design supports heavy gates while delivering smooth and consistent performance. Built for high cycle use this pad mounted system operates efficiently in extreme temperatures and provides dependable access control for modern properties.
- Lowest profile design with elegant compact housing
- Waterproof construction rated IP67 for outdoor use
- Direct drive sealed gearbox for silent operation
- Supports heavy swing gates up to 500 lb
- High cycle capability ideal for frequent daily use
Equipped with an irreversible and sealed direct-drive gearbox for reliable and maintenance-free operation.
Offers compact and elegant design with the industry's lowest profile at just 11 inches in height.
Waterproof housing rated IP67 ensures high resistance to dust and water for outdoor durability.
Features quick manual release for ease of use during power outages or emergencies.
Adjustable limit switches provide precise control over gate travel and positioning.
Includes a heavy-duty galvanized steel base for enhanced structural support and corrosion resistance.
Arm joint with integrated stopper enhances mechanical stability and safety.
Gate arm and gate bracket are both adjustable to accommodate various gate dimensions and angles.
Supports high-cycle operation with up to 500 cycles per day, ideal for residential and commercial use.
Delivers strong torque output of 280 Nm to handle gates up to 500 lb and 15 ft in length.
Operates efficiently in extreme temperatures ranging from -4°F to +122°F.
Runs on 24 VDC input (from controller) with a maximum current of 11 Amps for consistent power delivery.
Compact actuator and arm weights (38 lb and 24 lb) facilitate easier handling and installation.
Completes a 90° gate swing in approximately 20 seconds, ensuring quick access and exit.
| MODEL NAME | DU 24 FX |
| APPLICATION | Automations for swing gates, pad-mounting |
| CONTROLLER | Separate controller required |
| PROFILE | 11" height elegant low profile (lowest in the industry) |
| OPERATION | Compact, silent, powerful and reliable |
| GEARBOX | Irreversible and sealed direct-drive gearbox |
| MANUAL RELEASE | Quick manual release |
| LIMIT SWITCHES | Adjustable |
| BASE | Heavy duty galvanized steel base |
| ARM JOINT | With stopper |
| GATE ARM | Adjustable |
| GATE BRACKET | Adjustable |
| INPUT VOLTAGE | 24 VDC (from controller) |
| MAX CURRENT | 11 Amp |
| TORQUE | 280 Nm |
| TIME FOR 90° | 20 seconds (approx.) |
| DUTY CYCLE | High-cycle, up to 500 cycles/day |
| MAX GATE WEIGHT | 500 lb |
| MAX GATE LENGTH | 15 ft |
| TEMPERATURE RANGE | -4 °F to +122 °F |
| ACTUATOR WEIGHT | 38 lb |
| ARM WEIGHT | 24 lb |
| OUTDOOR RATING | Waterproof (IP67) |
| INSTALLATION TYPE | Pad-mounting |
| USAGE | Residential and commercial |
| NOTES | Information is not binding |
DU 24 FX Swing Gate Operator from Alfa Iris delivers silent, powerful, and reliable automation for residential and commercial swing gate applications. Featuring a compact and ultra-low profile design, this waterproof (IP67) unit is engineered for pad-mounted installations in demanding environments.
Compact, Durable, and High-Performance
The DU 24 FX is equipped with a sealed irreversible direct-drive gearbox, ensuring longevity and silent operation. Its heavy-duty galvanized steel base and adjustable limit switches provide flexibility and durability. The integrated stopper, adjustable gate arm, and gate bracket make it suitable for a variety of gate sizes and configurations.
- Sealed irreversible direct-drive gearbox
- Heavy-duty galvanized steel base
- Adjustable release and limit switches
- Integrated stopper and gate bracket
- 11" height ultra-low profile for sleek installations
- Waterproof enclosure rated IP67
Engineered for High-Cycle Performance
Operating on 24 VDC (from controller), the DU 24 FX supports up to 500 cycles per day, making it ideal for high-frequency use in gated communities and commercial properties. Its fast actuation time of approximately 20 seconds for 90° rotation ensures efficient gate access control.
- High-cycle rated: 500 operations per day
- Fast opening: approx. 20 seconds for 90°
- Compact and quiet operation
- Ideal for swing gates up to 15 ft and 500 lb
Technical Specifications
- Model: DU 24 FX
- Input Voltage: 24 VDC (from controller)
- Max Current: 11 Amp
- Torque: 280 Nm
- Time for 90°: Approx. 20 seconds
- Max Cycles: 500 cycles/day
- Max Gate Weight: 500 lb
- Max Gate Length: 15 ft
- Operating Temperature: -4 °F to +122 °F
- Actuator & Arm Weight: 38 lb / 24 lb
Note: Information is not binding and subject to change without notice.
