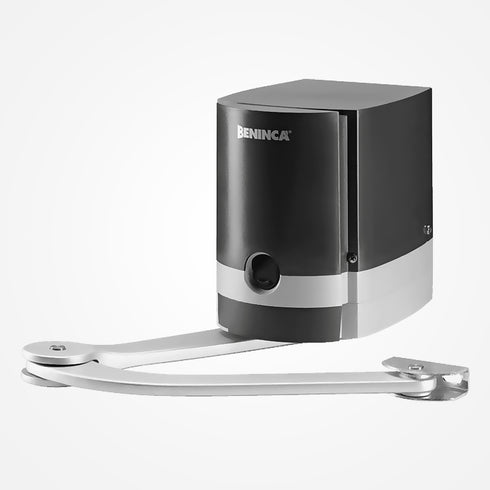

MB 24 Articulated Swing Gate Automation for Intensive Use
The MB 24 articulated swing gate automation is designed for smooth, powerful, and reliable operation on residential and light commercial gates. Its articulated arm makes it ideal for installations with large posts and offset hinges. Operating on 24Vdc, it supports intensive daily use with quiet performance and precise movement. Built with weather resistant materials, aluminum grease lubricated gearbox, adjustable limit switches, and a fast manual release, it ensures long term durability and safety.
- 24Vdc articulated actuator for intensive swing gate operation
- Suitable for large posts and offset hinge installations
- Smooth, silent movement with amperometric anti crushing control
- Weather resistant housing with aluminum lubricated gearbox
- Supports gates up to 400 lb and 8 ft length
Designed for articulated arm swing gates, providing smooth and efficient automation even with large posts.
Features a silent, powerful, and reliable 24Vdc actuator ideal for intensive residential and light commercial use.
Delivers smooth and sharp movement to ensure high-quality performance and minimal gate wear.
Equipped with amperometric anti-crushing control for enhanced safety when paired with the BRAINY24 control panel.
Incorporates a compact and aesthetically pleasing design that complements gate environments.
Built with a weather-resistant plastic cover and an aluminum gearbox with grease lubrication for longevity.
Offers adjustable positive stops (BN 24 model) and limit-switches (MB & PR models) for precise gate control.
Includes a quick manual release function for convenient access during power failures or emergencies.
Optional battery backup system ensures gate functionality during electrical outages.
Capable of handling gates up to 400 lb, 8 ft in length, with an 8-inch offset, operating up to 200 cycles per day.
Completes a 90° gate opening in just 10 seconds, providing fast and efficient access.
Draws 6 amps at 24Vdc input (via BRAINY24 control panel), balancing power efficiency and performance.
Weighs only 20 lb, making it easy to handle during installation while maintaining robust operation.
| MODEL NAME | MB 24 |
| AUTOMATION TYPE | Swing Gate – Articulated Arm |
| SUITABLE FOR | Large posts |
| ACTUATOR TYPE | 24Vdc for intensive use |
| MOVEMENT | Smooth and sharp |
| CONTROL TYPE | Amperometric anticrushing (with BRAINY24) |
| DESIGN | Compact and pleasant |
| COVER MATERIAL | Weather-resistant plastic |
| GEARBOX | Aluminum, grease-lubricated |
| POSITIVE STOPS | Adjustable (BN 24) |
| LIMIT SWITCHES | Adjustable (MB & PR) |
| MANUAL RELEASE | Quick manual release |
| BATTERY BACK-UP | Optional |
| INPUT VOLTAGE | 24 Vdc (from BRAINY24 control panel) |
| CURRENT | 6 Amp |
| TORQUE | 200 Nm |
| TIME FOR 90° | 10 seconds |
| MAX CYCLES/DAY | 200 |
| MAX GATE WEIGHT | 400 lb |
| MAX GATE LENGTH | 8 ft |
| MAX GATE OFFSET | 8 inches |
| ACTUATOR WEIGHT | 20 lb |
| USAGE TYPE | Residential - Light Commercial |
| SPECIFICATION NOTICE | Specification is not binding |
MB 24 Swing Gate Automation from Alfa Iris delivers powerful and silent operation for residential and light commercial swing gates. Equipped with an articulated arm and designed for large posts, this system ensures a smooth and sharp gate movement ideal for intensive use. The 24Vdc actuator combined with amperometric anti-crushing control (with BRAINY24 control panel) enhances both performance and safety.
Engineered for Durability and Precision
The MB 24 is built to handle rigorous use while maintaining quiet operation. Its compact and visually pleasing design features a weather-resistant plastic cover and an aluminum grease-lubricated gearbox for long-term reliability. With adjustable positive stops (BN 24) and adjustable limit switches (MB & PR), this unit ensures precise positioning and control.
- Articulated arm for wide gate compatibility
- Silent, smooth, and powerful gate motion
- Designed for large posts and heavy gates
- Amperometric anti-crushing system with BRAINY24
- Weather-resistant and compact build
- Manual quick release for emergencies
- Optional battery back-up system
Versatile and High-Performance
The MB 24 operates on 24VDC power supplied by the BRAINY24 control panel, supporting up to 200 cycles per day. It is ideal for gates weighing up to 400 lbs and up to 8 feet in length, with a maximum offset of 8 inches. Its adaptable design makes it a strong choice for both residential driveways and light commercial entry points.
- Residential and light commercial swing gates
- Driveway gates with large columns
- Applications requiring frequent gate cycling
Technical Specifications
- Model: MB 24
- Power Input: 24VDC (from BRAINY24 control panel)
- Current: 6 Amp
- Torque: 200 Nm
- Opening Time (90°): 10 seconds
- Maximum Cycles: 200 per day
- Max Gate Weight: 400 lbs
- Max Gate Length: 8 ft
- Max Gate Offset: 8 inches
- Actuator Weight: 20 lbs
