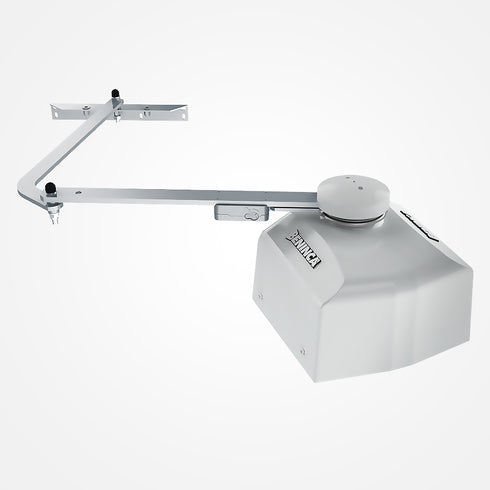

DU 350 FX Geared Motor for Large Swing Gates 230 Vac
High torque irreversible electromechanical geared motor designed for large swing gates and intensive use. Oil lubricated internal components ensure durability and smooth operation in demanding environments. Supplied with a galvanized steel articulated arm and lever release system, it is ideal for retrofit installations where column fixing is not possible. Adjustable cam limit switches provide precise opening and closing control, while the robust enclosure offers reliable outdoor performance.
- Powerful 270 Nm torque for heavy swing gate leaves
- Oil lubricated gearbox for intensive continuous operation
- Articulated galvanized steel arm for flexible installations
- Adjustable cam limit switches for accurate movement control
- IP67 protection suitable for harsh outdoor conditions
Operates on 230 Vac with intensive use capability, making it ideal for heavy-duty swing gate applications.
Features an irreversible electromechanical geared motor designed for gates of considerable sizes.
Equipped with an oil-submerged gear mechanism for enhanced durability and performance.
Comes with a galvanised steel articulated arm and lever release system for robust operation and easy manual override.
Perfect for retrofit installations where mounting on the column is not feasible.
Includes adjustable cam limit switches for precise opening and closing control.
Provides a high torque output of 270 Nm to handle large and heavy gate leaves up to 4 meters long.
Ensures reliable operation in extreme environments with a protection rating of IP67.
Suitable for a wide range of temperatures from -20°C to +50°C, supporting diverse climates.
Designed for intensive duty cycles, supporting frequent operation throughout the day.
Compact and heavy-duty at 26.1 kg, ensuring stability during performance.
Supplied with a fixing plate that has visible holes for straightforward installation and accessibility.
Supports quick installation with motor arrangements allowing for 12 units per pallet.
Offers lubrication with oil to reduce wear and prolong motor lifespan.
| MODEL NAME | DU.350FX |
| PRODUCT TYPE | Irreversible electromechanical geared motor |
| APPLICATION | Swing gates of considerable sizes |
| POWER SUPPLY | 230 Vac (50-60Hz) |
| CURRENT CONSUMPTION | Max 1.4 A |
| TORQUE | 270 Nm |
| OPENING TIME | 16 to 20 seconds |
| DUTY CYCLE | Intensive use |
| PROTECTION LEVEL | IP67 |
| ENCODER | Not specified |
| BUILT-IN CONTROL UNIT | Not specified |
| OPERATING TEMPERATURE | -20°C to +50°C |
| LUBRICATION | Oil submerged gear |
| LEAF MAX DIMENSION | 4 m |
| WEIGHT | 26.1 kg |
| MOTORS PER PALLET | 12 |
| INSTALLATION FEATURES | Ideal where automation cannot be fixed to the column |
| ARM TYPE | Galvanised steel articulated arm |
| MANUAL RELEASE | Lever release system |
| LIMIT SWITCH TYPE | Adjustable cam limit switches for opening and closing |
| FIXING PLATE | Visible holes accessible when motor is installed |
DU.350FX Geared Motor from Alfa Iris is a powerful irreversible electromechanical solution designed for gates of considerable sizes. Engineered for intensive use, it operates on 230 Vac and features an oil-submerged gear system that ensures long-lasting performance under demanding conditions.
Built for Strength, Flexibility, and Tough Environments
The DU.350FX is equipped with a galvanised steel articulated arm and a robust lever release system, making it ideal for installations where column-mounted automation is not feasible. With adjustable cam limit switches for both opening and closing, and a fixing plate with accessible visible holes, this geared motor is designed for easy and secure installation, even after mounting.
- Irreversible geared motor for heavy-duty gates
- Oil-lubricated gear system for durability
- Galvanised steel arm with lever release
- Adjustable cam limit switches
- Accessible fixing plate for easier installation
Reliable Operation in All Conditions
Optimized for outdoor and high-usage applications, the DU.350FX delivers a torque of 270 Nm and handles leaf sizes up to 4 meters. Its IP67-rated protection and operating temperature range of -20°C to +50°C make it highly suitable for various environmental conditions. Whether used in residential, commercial, or industrial setups, it offers unmatched reliability and safety.
- 230 Vac motor supply
- Max absorbed current: 1.4 A
- Torque: 270 Nm
- Opening time: 16" ÷ 20"
- Duty cycle: Intensive use
- Protection level: IP67
- Leaf max dimension: 4 m
- Weight: 26.1 kg
- Operating temperature: -20°C / +50°C
- Lubrication: OIL
Technical Specifications
- Model: DU.350FX
- Motor Supply: 230 Vac (50-60Hz)
- Torque: 270 Nm
- Max Current: 1.4 A
- Opening Time: 16" ÷ 20"
- Duty Cycle: Intensive use
- Protection Rating: IP67
- Max Leaf Length: 4 m
- Weight: 26.1 kg
- Operating Temp: -20°C to +50°C
- Lubrication: Oil-submerged
- Motors per Pallet: 12
