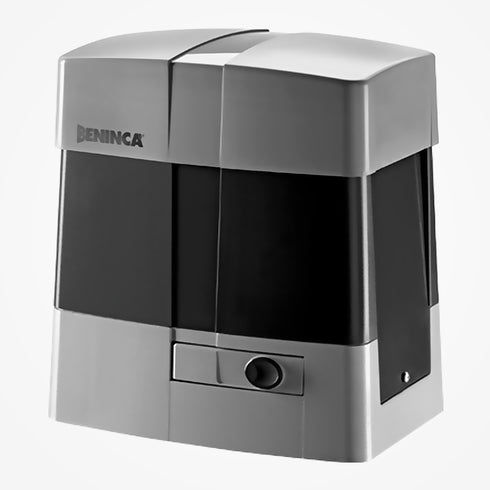

BULL10MA Commercial Industrial Sliding Gate Operator
The BULL10MA commercial and industrial gate operator is designed for heavy duty sliding gate applications requiring reliability and smooth performance. It operates on 115Vac single phase power and includes an integrated control panel for efficient operation. The self ventilated motor with encoder ensures precise movement control, while the adjustable mounting options allow flexible horizontal or vertical installation. Easy wiring and a fast manual release system simplify installation and maintenance in demanding environments.
- 115Vac single phase operator with integrated control panel
- Self ventilated motor with encoder for precise gate control
- Supports sliding gates up to 2000 lb weight capacity
- Adjustable horizontal and vertical mounting configuration
- Simple wiring design with fast manual unlock mechanism
Operates on a 115Vac single-phase power supply, with 230Vac available upon request for flexible installation needs.
Features a built-in control panel, providing integrated automation and simplifying setup procedures.
Equipped with an encoder for precise movement control and reliable operation in commercial and industrial settings.
Self-ventilated motor design enhances cooling efficiency and promotes long-term durability.
Offers a fast and easy-to-use unlock device for manual access when needed.
Supports both horizontal and vertical mounting positions, allowing versatile installation configurations.
Designed for quick and easy wiring, reducing installation time and complexity for technicians.
Delivers a powerful 40 Nm torque output, ideal for handling heavy-duty gate applications.
Supports a maximum gate weight of up to 2000 lbs, suitable for robust commercial and industrial gates.
Operates at a speed of 35 feet per minute, ensuring efficient gate opening and closing cycles.
Built to handle 30% duty cycle, supporting regular and moderate usage conditions.
Functions reliably in a wide operating temperature range from 0°F to 150°F, making it suitable for diverse climates.
Lubricated with grease for smooth mechanical operation and reduced maintenance requirements.
Compact and robust design with a total unit weight of 44 lbs, providing stable and secure mounting.
| MODEL NAME | BULL10MA |
| APPLICATION | Commercial / Industrial |
| POWER SUPPLY | 115Vac 60Hz (230Vac available on request) |
| MOTOR SUPPLY | 115Vac |
| POWER CONSUMPTION | 300 W |
| MAX. ABSORBED CURRENT | 4 A |
| TORQUE | 40 Nm |
| OPENING SPEED | 35 Ft/min |
| OPERATION CYCLE | 30% |
| OPERATING TEMPERATURE | 0 – 150 °F |
| MAX GATE WEIGHT | 2000 Lb |
| INSTALLATION TYPE | Horizontal and vertical adjustable fitting positions |
| ENCODER | Equipped with encoder |
| VENTILATION | Self-ventilated |
| MANUAL RELEASE | Fast and easy to use unlock device |
| WIRING METHOD | Fast and easy to wire |
| LUBRICATION | Grease |
| WEIGHT | 44 Lb |
BULL10MA Commercial/Industrial Gate Operator from Alfa Iris is engineered for high-performance applications requiring power and durability. Designed to automate heavy-duty gates, this 115Vac single-phase operator features a built-in control panel and encoder for precise operation and user convenience.
Rugged, Adjustable, and Reliable
The BULL10MA is built for long-term use in commercial and industrial environments. Its adjustable fitting allows both horizontal and vertical mounting positions, providing installation flexibility. The operator includes a self-ventilated motor to prevent overheating, and a quick-access unlocking system for manual gate release during maintenance or power outages.
- 115Vac single-phase motor with built-in control panel
- Self-ventilated and equipped with encoder
- Quick and easy manual unlock system
- Adjustable horizontal and vertical fitting positions
- Fast wiring process for efficient installation
- Also available in 230Vac upon request
Engineered for Demanding Use
The BULL10MA operates smoothly even under high load, making it suitable for heavy sliding gates up to 2000 lb. It delivers consistent performance with a powerful 40 Nm torque and a fast 35 ft/min opening speed, ensuring security and operational efficiency in high-traffic commercial or industrial sites.
- Supports gate weight up to 2000 lb
- High-torque 40 Nm motor
- Opening speed: 35 ft/min
- Operation cycle: 30%
- Operating temperature range: 0 – 150°F
- Power consumption: 300 W
- Max. absorbed current: 4 A
- Weight: 44 lb
- Lubricated with high-performance grease
