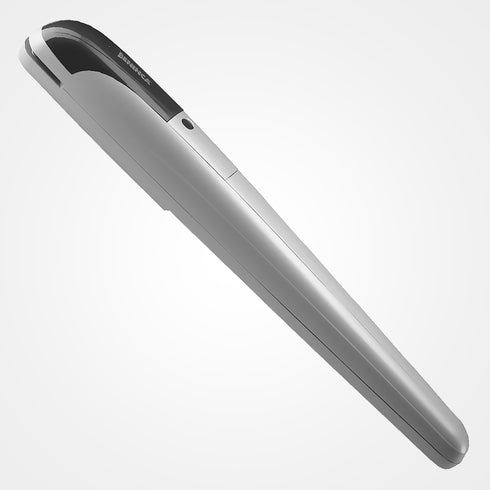

BOB5024E 24 Vdc Intensive Use Swing Gate Geared Motor
The BOB5024E is a 24 Vdc irreversible electromechanical geared motor designed for intensive swing gate applications. It integrates an encoder for precise movement control and enhanced operational safety. The system includes obstacle detection through amperometric sensing, adjustable mechanical stops for accurate opening and closing, and a robust rolled ball screw design. Quiet operation, fast installation, and optional battery powered functionality make it suitable for demanding residential and industrial environments.
- Irreversible 24 Vdc geared motor for intensive swing gate use
- Integrated encoder for precise and safe gate movement
- Obstacle detection system to prevent crushing incidents
- Adjustable mechanical stops for opening and closing control
- Supports large gate leaves up to five meters
Irreversible 24 Vdc electromechanical geared motor designed for intensive use, ensuring robust and reliable operation for swing gate automation.
Equipped with an encoder that provides high precision and maximum safety during gate movement phases.
Includes an amperometric obstacle detection system to prevent crushing, enhancing user and property safety.
Supports optional battery-powered operation, allowing continued functionality during power outages.
Incorporates two adjustable mechanical stops for opening and closing, simplifying installation and alignment.
Features rolled ball screws Ø 20 mm for enhanced mechanical efficiency and durability.
Easy manual release with top-access design enables quick intervention when needed.
Supports a maximum leaf dimension of 5.0 meters, accommodating large gate installations.
Delivers a powerful maximum thrust of 2200 N to handle demanding gate movements.
Quick 21-second opening time improves access convenience without compromising safety.
Rated for intensive duty cycles, ideal for frequent daily operations in residential or commercial settings.
IP44 protection level offers resistance against dust and water splashes for reliable outdoor performance.
Lubricated with grease to ensure smooth, maintenance-friendly mechanical performance.
Operates in temperatures ranging from -20°C to +50°C, suitable for various climatic conditions.
Compact and lightweight at 10.2 kg, with efficient packaging allowing 30 motors per pallet for optimized logistics.
| MODEL NAME | BOB5024E |
| DEVICE TYPE | Irreversible electromechanical geared motor |
| POWER SUPPLY | 24 Vdc |
| USAGE TYPE | Intensive use |
| ENCODER | Yes, included |
| CONTROL UNIT | Built-in |
| MAX ABSORBED CURRENT | 6.7 A |
| MAXIMUM THRUST | 2200 N |
| OPENING TIME | 21 seconds |
| STANDARD STROKE | 455 mm |
| MAXIMUM STROKE | 520 mm |
| DUTY CYCLE | Intensive use |
| PROTECTION LEVEL | IP44 |
| OPERATING TEMPERATURE | -20°C to +50°C |
| LUBRICATION | Grease |
| LEAF MAX DIMENSION | 5.0 m |
| WEIGHT | 10.2 kg |
| MOTORS PER PALLET | 30 |
| ENCODER FUNCTION | Ensures safety and precision during movement |
| OBSTACLE DETECTION | Amperometric sensor system to prevent crushing |
| BATTERY OPTION | Optional battery-powered operation |
| MECHANICAL STOPS | 2 adjustable for opening and closing |
| SCREW TYPE | Rolled ball screws Ø 20 mm |
| RELEASE ACCESS | Easy access from above |
| INSTALLATION | Quick to install |
| NOISE LEVEL | Quiet operation |
| APPLICATION | Automations for swing gates |
BOB5024E Geared Motor from Alfa Iris is a 24 Vdc irreversible electromechanical unit designed for intensive swing gate automation. Engineered with an integrated encoder, it ensures maximum safety and precision during gate movement, making it ideal for high-frequency usage in residential and commercial environments.
Engineered for Safety and Efficiency
The BOB5024E features an amperometric sensor obstacle detection system that enhances user protection by preventing gate crushing incidents. It includes two adjustable mechanical stops for customized opening and closing, plus easy top-access manual release. Its rolled ball screws Ø 20 mm deliver reliable, quiet performance, while the optional battery backup ensures continuous operation during power failures.
- 24 Vdc geared motor for intensive use
- Integrated encoder for safety and accuracy
- Amperometric obstacle detection system
- Optional battery powered functionality
- Rolled ball screws Ø 20 mm
- Quick and quiet operation with easy setup
- Manual top-access release for convenience
Reliable Gate Automation Performance
With a maximum thrust of 2200 N and opening time of 21 seconds, the BOB5024E supports gate leaves up to 5.0 meters in length. Its IP44-rated build and grease lubrication enable stable operation in temperatures ranging from -20°C to +50°C, making it ideal for outdoor installations. This model is supplied without a built-in control unit, allowing flexible system integration.
- Max thrust: 2200 N
- Opening time: 21 seconds
- Max stroke: 520 mm (standard: 455 mm)
- Leaf max dimension: 5.0 m
- Protection level: IP44
- Operating temperature: -20°C / +50°C
- Lubrication: Grease
- Weight: 10.2 kg
- Motors per pallet: 30
