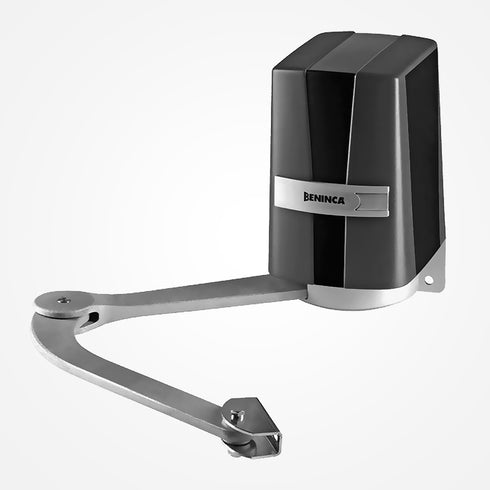

BN 24 24Vdc Articulated Swing Gate Automation for Residential Use
The BN 24 articulated swing gate automation is designed for residential applications requiring smooth, quiet, and reliable operation. It supports large posts and features a powerful 24Vdc actuator suitable for intensive daily use. The system offers precise movement control, enhanced safety through amperometric anticrushing technology, and a compact weather resistant housing. Adjustable stops and quick manual release ensure flexibility and convenience, while optional battery backup enhances reliability during power interruptions.
- Articulated arm design suitable for large gate posts
- Silent and powerful 24Vdc actuator for intensive use
- Amperometric anticrushing control for enhanced safety
- Adjustable positive stops and smooth gate movement
- Weather resistant cover with compact modern design
Features an articulated arm mechanism, ideal for swing gates installed on large posts with space constraints.
Equipped with a 24Vdc actuator designed for intensive use, ensuring consistent performance in high-frequency applications.
Offers a smooth and sharp movement for precise gate control, enhancing user convenience and gate alignment.
Integrates an amperometric anti-crushing safety system when paired with the BRAINY24 control panel.
Engineered for silent operation while delivering powerful and reliable gate automation.
Includes a weather-resistant plastic cover to protect internal components from environmental wear.
Constructed with an aluminum gearbox that is grease-lubricated for long-lasting durability.
Provides adjustable positive stops on BN 24 models for accurate gate positioning.
Features adjustable limit-switches on MB and PR models, allowing customized gate travel limits.
Allows for quick manual release, ensuring gate operation during power outages or emergencies.
Supports an optional battery back-up system to maintain functionality during power failure.
Designed with a compact and aesthetically pleasing form to complement residential gate setups.
Delivers up to 120 Nm of torque and operates in just 10 seconds for a 90° gate swing.
Handles up to 100 cycles per day and supports gates up to 200 lb, 6 ft in length, and 6 inches offset.
Lightweight at only 15 lb, making installation and maintenance manageable.
| MODEL NAME | BN 24 AUTOMATIONS FOR SWING GATES ARTICULATED |
| ARM TYPE | Articulated arm |
| POST COMPATIBILITY | Suitable for large posts |
| OPERATION | Silent, powerful and reliable |
| ACTUATOR TYPE | 24Vdc actuator for intensive use |
| MOVEMENT | Smooth and sharp |
| ANTICRUSHING CONTROL | Amperometric with BRAINY24 control panel |
| DESIGN | Compact & pleasant |
| COVER MATERIAL | Weather resistant plastic |
| GEAR-BOX | Aluminum, grease-lubricated |
| POSITIVE STOPS | Adjustable (BN 24) |
| LIMIT SWITCHES | Adjustable (MB & PR) |
| MANUAL RELEASE | Quick manual release |
| BATTERY BACK-UP | Optional |
| INPUT VOLTAGE | 24 Vdc (from control panel BRAINY 24) |
| CURRENT | 4 Amp |
| TORQUE | 120 Nm |
| OPENING TIME FOR 90° | 10 sec |
| MAX CYCLES PER DAY | 100 |
| MAX GATE WEIGHT | 200 lb |
| MAX GATE LENGTH | 6 ft |
| MAX GATE OFFSET | 6 inch |
| ACTUATOR WEIGHT | 15 lb |
| SPECIFICATION NOTICE | Specification is not binding |
BN 24 Articulated Arm Gate Operator from Alfa Iris is designed for residential swing gates with large posts, offering silent and powerful performance. With its 24Vdc actuator and articulated arm, it ensures smooth, sharp movement and is ideal for intensive use. Integrated with amperometric anti-crushing control when paired with the BRAINY24 control panel, the BN 24 prioritizes safety and reliability.
Engineered for Intensive Use and Weather Resistance
BN 24 features a compact and aesthetically pleasing design, housed in a weather-resistant plastic cover. The aluminum gear-box is grease-lubricated for durability, while adjustable positive stops and optional limit-switches provide enhanced precision during operation. A quick manual release and optional battery back-up system offer flexibility and convenience during power interruptions.
- Articulated arm design suitable for large posts
- Silent, smooth, and powerful operation
- 24Vdc actuator designed for intensive daily use
- Amperometric anti-crushing safety feature with BRAINY24 panel
- Compact and attractive casing with weatherproof materials
- Aluminum gear-box with grease lubrication
- Adjustable mechanical stops and limit-switches (model dependent)
- Quick manual release for emergency access
- Battery backup system available as optional add-on
Residential Gate Performance
The BN 24 operator is optimized for residential gates up to 200 lb and 6 ft in length, with a maximum gate offset of 6 inches. It delivers high torque of 120 Nm, completes a 90° opening in just 10 seconds, and supports up to 100 cycles per day, ensuring reliable performance for residential entry systems.
- Max Gate Weight: 200 lb
- Max Gate Length: 6 ft
- Max Gate Offset: 6 inches
- Torque: 120 Nm
- Time for 90° Opening: 10 seconds
- Max Cycles per Day: 100
- Input Voltage: 24Vdc (from BRAINY24 control panel)
- Current: 4 Amp
- Actuator Weight: 15 lb
