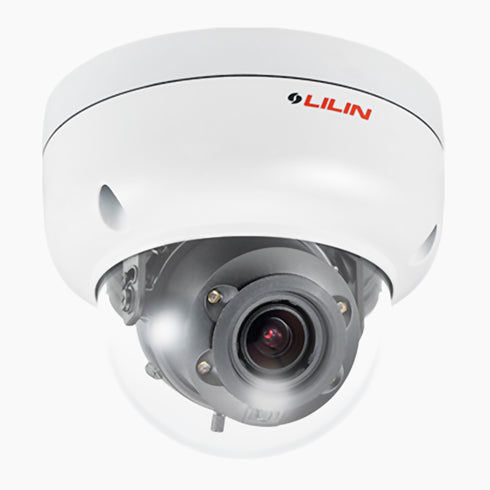

Z5R6452X3 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
The Z5R8922X3 delivers reliable 1080P surveillance performance with a 2MP CMOS sensor and advanced video compression for efficient bandwidth usage. Designed for day and night operation, it features motorized zoom and auto focus, IR illumination up to 35 meters, and superior image clarity with 3D noise reduction and wide dynamic range. Built with an IP68 weatherproof and IK10 vandal-resistant housing, it ensures durability in outdoor environments. The camera supports SD card recording, PoE power, and ONVIF compatibility, making it an ideal choice for secure industrial and commercial monitoring applications.
- Full HD 1080P resolution with 2MP CMOS sensor
- Motorized zoom lens with auto focus 2.8–12mm
- IR range up to 35 meters for night visibility
- Weatherproof IP68 and vandal resistant IK10 housing
- Supports PoE power and ONVIF integration
Equipped with a Full HD 2MP CMOS sensor (1920×1080) for clear and detailed video capture.
Utilizes H.265/HEVC and H.264 video compression for efficient storage and bandwidth use.
Features a motorized zoom and auto focus lens (2.8–12mm) for flexible viewing options.
Supports advanced 3D Noise Reduction (MCTF), 2D WDR, and DWDR up to 100dB for image clarity in varied lighting.
Integrated IR LEDs provide up to 35m night vision range for effective day and night monitoring.
Day & Night functionality with a removable IR cut filter ensures optimal image quality in all lighting conditions.
Includes alarm input and output (1 in / 1 out) for enhanced security system integration.
ONVIF Profile S compatibility allows seamless interoperability with other surveillance equipment.
Boasts IP68 weatherproof and IK10 vandal-resistant housing for reliable outdoor use.
Supports SD card recording up to 128GB (card not included) for local video storage.
Operates in a wide temperature range from -30°C to +50°C, suitable for various environments.
Delivers real-time video at 30FPS @ 1080p (60Hz) or 25FPS @ 1080p (50Hz) for smooth playback.
Compact and lightweight design: 75 × 75 × 206 mm, 575g for easy installation.
Dual power support with DC12V and PoE, max power consumption of 10W.
Certified with CE and FCC, backed by a 2-year warranty for added assurance.
| MODEL NAME | Z5R8922X3 1080P Day & Night Auto Focus IR Bullet IP Camera |
| PRODUCT TYPE | IP Bullet Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.7" 2MP CMOS, 1932×1092 pixels |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| LENS | 2.8–12mm motorized, F1.8–F3.3 |
| FOCAL LENGTH | 2.8–12mm |
| AUTO FOCUS | Yes |
| IR DISTANCE | 35m (850nm) |
| DAY & NIGHT | IR cut removable |
| MINIMUM ILLUMINATION | 0.01 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 104°–37° (H), 55°–20° (V), 126°–42° (D) |
| FRAME RATE | 30FPS @ 1080p (60Hz) / 25FPS @ 1080p (50Hz) |
| RESOLUTION OPTIONS | 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| WDR | 2D WDR, DWDR up to 100dB |
| 3D NOISE REDUCTION | MCTF |
| ALARM I/O | 1 in / 1 out |
| ONVIF SUPPORT | Profile S |
| WEATHERPROOF RATING | IP68 |
| VANDAL RESISTANT | IK10 |
| SD CARD RECORDING | Yes, up to 128GB (card not included) |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 10W |
| OPERATING TEMPERATURE | -30°C ~ +50°C |
| DIMENSIONS | 75 × 75 × 206 mm |
| WEIGHT | 575g |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 2 Years |
Z5R8922X3 1080P Day & Night Auto Focus IR Bullet IP Camera from LILIN delivers high-definition surveillance with intelligent imaging and superior durability. Equipped with a Full HD 2MP CMOS sensor, this camera ensures clear footage day or night, making it ideal for a wide range of outdoor security applications.
High-Performance Surveillance in Any Light
The Z5R8922X3 is designed for dependable monitoring with features like motorized zoom and auto focus lens (2.8–12mm), 3D noise reduction, and DWDR up to 100dB for balanced exposure in challenging lighting. Infrared LEDs with a 35-meter range provide reliable night vision, while the removable IR cut filter enables true day/night functionality. Built to withstand harsh environments, it is IP68 weatherproof and IK10 vandal resistant.
- Full HD 2MP CMOS image sensor (1920×1080)
- H.265/HEVC & H.264 high-efficiency video compression
- 2.8–12mm motorized zoom & auto focus lens
- 3D Noise Reduction (MCTF), DWDR up to 100dB
- Infrared night vision up to 35m
- Day & Night function with IR cut filter
- 1 alarm input / 1 alarm output
- ONVIF Profile S compliant for integration
- IP68 weatherproof, IK10 vandal resistant
- Edge recording with SD card (up to 128GB)
Flexible Installation and Wide Compatibility
Supporting both DC12V and PoE power options, the Z5R8922X3 offers flexible installation and integration with modern IP surveillance systems. It is suitable for residential, commercial, and industrial environments requiring robust security and seamless system compatibility.
- 2MP resolution with up to 30FPS @ 1080p
- 0.01 Lux (Color), 0.001 Lux (B/W), 0 Lux with IR
- Angle of view: 104°–37° (H), 55°–20° (V), 126°–42° (D)
- Operates in temperatures from -30°C to +50°C
- Compact size: 75 × 75 × 206 mm, weight: 575g
- Complies with CE and FCC certifications
- 2-Year warranty included
Security professionals looking for a rugged, full-featured bullet IP camera will find the Z5R8922X3 from LILIN to be an excellent choice for dependable performance in all lighting and weather conditions.
