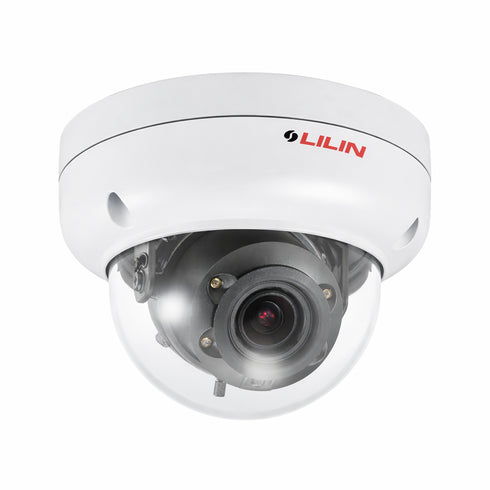

Z3R6422X3 1080P Auto Focus IR Vandal Resistant Dome IP Camera

1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera (Z3R6422X3) from Alfa Iris is a high-performance surveillance solution designed for demanding indoor and outdoor security applications. Featuring a 2MP CMOS sensor with Full HD 1080P resolution, this camera delivers crisp, detailed video with advanced H.265/H.264 compression for efficient bandwidth and storage usage. Its motorized varifocal lens (2.8–12mm) with auto focus enables flexible viewing angles, making it ideal for monitoring entrances, parking areas, commercial properties, and critical infrastructure.

Advanced Imaging and Night Performance

Engineered for reliable 24/7 surveillance, the Z3R6422X3 features true day/night functionality with IR cut filter and high-efficiency IR LEDs that provide visibility up to 30 meters in complete darkness. With HDR up to 120dB, 3D noise reduction, and 2D WDR, the camera ensures clear images even in challenging lighting conditions such as backlight or low light environments.

• Full HD 1080P resolution with 2MP CMOS sensor
• Motorized zoom and auto focus lens (2.8–12mm)
• Infrared night vision up to 30 meters
• HDR up to 120dB for high-contrast scenes
• 3D noise reduction and 2D WDR enhancement

Rugged Design for Harsh Environments

Built with a durable aluminum alloy housing and impact-resistant polycarbonate dome, this camera is rated IP67 for dust and water resistance and IK10 for vandal protection. Its 3-axis mounting design allows flexible installation on walls, ceilings, or poles, ensuring optimal positioning in any environment.

• IP67-rated for outdoor weather resistance
• IK10 vandal-resistant dome cover
• Wide operating temperature: -40°C to +50°C
• Flexible 3-axis mounting system

Smart Surveillance and Integration

The camera supports advanced IVS (Intelligent Video Surveillance) features such as motion detection, tripwire detection, object counting, and optional AI analytics including face detection and crowd monitoring. With ONVIF Profile S and T support, it integrates seamlessly with third-party VMS platforms and network systems. Multiple streaming options and up to 4 configurable video streams ensure flexible deployment across various network environments.

• Smart IVS features: motion, tampering, tripwire, object counting
• Optional AI analytics: face detection, loitering, crowd detection
• ONVIF Profile S & T compliant for system integration
• Up to 4 simultaneous video streams

Reliable Storage, Security, and Connectivity

Designed for secure and scalable operation, the Z3R6422X3 supports microSD storage up to 128GB for edge recording and offers robust cybersecurity features including HTTPS encryption and authentication protocols. With PoE support, installation is simplified by combining power and data transmission over a single cable.

• Supports microSD/SDHC/SDXC cards up to 128GB
• PoE (IEEE 802.3af) and DC12V power options
• Secure access with HTTPS and authentication protocols
• Up to 10 simultaneous user connections

Security professionals and integrators looking for a reliable vandal-resistant IP dome camera will benefit from the advanced imaging, durability, and intelligent features of the Z3R6422X3 from Alfa Iris. Ideal for commercial, industrial, and high-risk environments requiring dependable surveillance performance.

Technical Specifications

• Model: Z3R6422X3
• Image Sensor: 1/2.8" CMOS, 2MP
• Resolution: 1920 × 1080 (Full HD)
• Lens: 2.8 – 12mm motorized (auto focus)
• IR Distance: Up to 30 meters
• Compression: H.265 / H.264 / MJPEG
• Frame Rate: Up to 30 fps @ 1080P
• WDR / HDR: 2D WDR, HDR up to 120dB
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Power Supply: DC12V ±10% / PoE
• Power Consumption: 6.6W (DC), 7.7W (PoE)
• Operating Temperature: -40°C to +50°C
• Storage: MicroSD up to 128GB
• Network: RJ-45, 10/100 Mbps Ethernet
