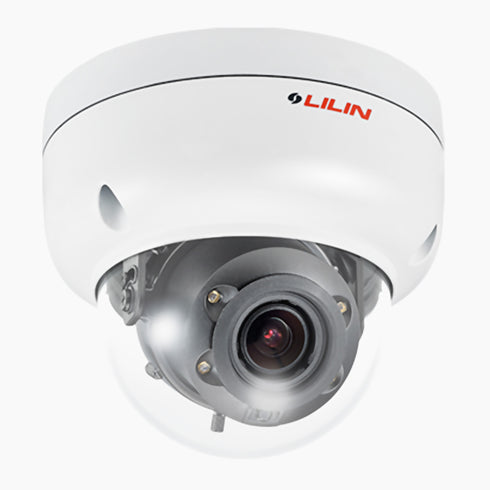

Z5R6452X 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
The Z5R6452X 5MP dome camera delivers superior image quality with a high-performance CMOS sensor and advanced video compression technology. Designed for demanding environments, it features motorized zoom, auto focus, and true day and night functionality with powerful infrared illumination. The camera is built to withstand vandalism and harsh weather with its robust IK10 and IP67-rated housing, making it ideal for indoor and outdoor security installations. Its digital I/O support, ONVIF compatibility, and mobile app integration ensure flexible deployment and efficient remote monitoring for professional surveillance needs.
- 5MP CMOS sensor with H.265 and H.264 video compression
- Motorized 2.8–8mm auto focus lens for flexible viewing
- IR illumination up to 30 meters for night vision
- Rugged IK10 and IP67-rated vandal resistant housing
- Supports ONVIF Profile S and mobile app integration
Captures high-resolution video with a 5MP CMOS image sensor (2592×1920) for enhanced image clarity.
Supports H.265/HEVC and H.264 video compression to reduce bandwidth and storage usage.
Equipped with a 2.8–8mm motorized zoom lens and auto focus for flexible and precise monitoring.
Delivers clear footage in challenging lighting with 3D Noise Reduction (MCTF), 2D WDR, and DWDR up to 100dB.
Features IR LEDs with a 30m range (850nm) for superior night vision performance.
Day & Night functionality with IR cut filter for accurate color reproduction during daytime.
Built with IK10 vandal resistance and IP67 weatherproof rating for robust outdoor use.
Offers one digital input and one output for external alarm integration and control.
Impact-resistant polycarbonate dome cover with 3-axis construction for versatile installation.
Compatible with ONVIF Profile S for seamless integration with third-party systems.
Includes integrated support for LILIN Pro mobile app on both iOS and Android platforms.
Operates in wide temperature ranges from -30°C to +50°C, suitable for various environments.
Supports multiple resolutions including 5MP, 4MP, 3MP, and lower for system flexibility.
Offers dual power options: DC12V or PoE, with a maximum power consumption of 10W.
Certified with CE and FCC, and backed by a 2-year warranty for peace of mind.
| MODEL NAME | Z5R6452X 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 5MP CMOS image sensor (2592×1920) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| LENS TYPE | Motorized Zoom & Auto Focus Lens (2.8–8mm) |
| NOISE REDUCTION | 3D Noise Reduction (MCTF), 2D WDR, DWDR up to 100dB |
| IR ILLUMINATION | IR LEDs with 30m range (850nm, 60°/90°) |
| DAY & NIGHT | IR cut removable |
| VANDAL RESISTANCE | IK10 Vandal Resistant |
| WEATHERPROOF RATING | IP67 |
| DIGITAL I/O | 1 input, 1 output |
| CONSTRUCTION | Impact Resistant Polycarbonate Dome Cover, 3-Axis construction |
| ONVIF SUPPORT | Profile S |
| MOBILE APP SUPPORT | Integrated LILIN Pro (iOS, Android) |
| MIN. ILLUMINATION | 0.04 Lux (Color), 0.006 Lux (B/W), 0 Lux (IR) |
| LENS APERTURE | F1.6 |
| ANGLE OF VIEW | 104.2°–51.9° (H), 75.2°–38.6° (V), 137°–64.5° (D) |
| MAX IR DISTANCE | 30m |
| SENSOR SIZE | 1/2.7" CMOS |
| SUPPORTED RESOLUTIONS | 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Up to 20 fps @ 2592×1920 |
| OPERATING TEMPERATURE | -30°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 10W |
| DIMENSIONS | Ø120 × 106 mm |
| WEIGHT | 760g |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 2 Years |
Z5R6452X 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera from LILIN delivers high-resolution surveillance with advanced image processing and robust construction for harsh environments. Featuring a powerful 5MP CMOS sensor and motorized zoom lens, this camera ensures clear, detailed footage around the clock, making it ideal for commercial, industrial, and public space monitoring.
Designed for High-Performance Surveillance
The Z5R6452X combines H.265 video compression with 3D noise reduction and DWDR up to 100dB, ensuring optimal clarity in various lighting conditions. With integrated IR LEDs supporting up to 30 meters of night vision and a removable IR cut filter, this camera provides true day and night functionality. Its impact-resistant polycarbonate dome and IK10/IP67 ratings guarantee reliable operation in vandal-prone or extreme outdoor environments.
- 5MP resolution (2592×1920) with CMOS image sensor
- H.265/HEVC, H.264, and MJPEG compression options
- Motorized 2.8–8mm lens with auto focus
- 3D Noise Reduction and Digital/DWDR (100dB)
- IR LEDs with 30m range for night vision
- IK10 vandal-resistant, IP67 weatherproof housing
- Day & Night functionality with removable IR cut filter
- Digital I/O for integration with alarm systems
- Mobile app support via LILIN Pro (iOS, Android)
Reliable and Flexible Integration
Powered via DC12V or PoE, the Z5R6452X supports ONVIF Profile S for seamless integration with third-party systems. With a 3-axis design and compact form factor, it allows for versatile mounting and easy adjustment during installation. Its multi-resolution output makes it suitable for various recording and streaming needs across security platforms.
- Compatible with ONVIF Profile S systems
- Flexible power options: DC12V / PoE
- Easy-to-install 3-axis mechanical construction
- Multiple resolution support: 5MP to CIF
- Frame rate: Up to 20 fps at full resolution
Security integrators seeking a rugged and intelligent dome camera will find the Z5R6452X from LILIN an excellent choice for reliable surveillance in both indoor and outdoor applications.
Technical Specifications
- Model: Z5R6452X
- Image Sensor: 1/2.7" 5MP CMOS
- Lens: Motorized 2.8–8mm, F1.6
- Viewing Angle: H 104.2°–51.9°, V 75.2°–38.6°, D 137°–64.5°
- Min. Illumination: 0.04 Lux (Color), 0.006 Lux (B/W), 0 Lux (IR)
- Max IR Distance: 30m
- Video Compression: H.265, H.264, MJPEG
- Resolutions: 5MP to CIF
- Frame Rate: Up to 20 fps @ 2592×1920
- Operating Temperature: -30°C ~ +50°C
- Power Supply: DC12V / PoE, Max 10W
- Dimensions: Ø120 × 106 mm
- Weight: 760g
- Certifications: CE, FCC
- Warranty: 2 Years
