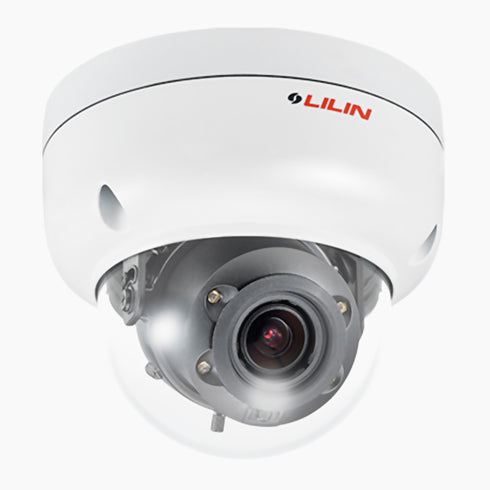

Z5R6422X3 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
The Z5R6422X3 is a high-performance IP dome camera designed for dependable surveillance in demanding environments. It features a 2MP CMOS sensor delivering 1080P resolution with crisp detail and enhanced image clarity. The motorized zoom lens allows precise focus adjustment, while IR illumination ensures reliable night vision up to 30 meters. Its vandal-resistant and weatherproof housing ensures durability in both indoor and outdoor installations. Advanced features like 3D noise reduction, wide dynamic range, and ONVIF compatibility make it a flexible choice for modern security systems.
- 2MP CMOS sensor with 1080P Full HD resolution
- Motorized zoom and auto focus lens 2.8–12mm
- 30m infrared range with automatic day and night mode
- IK10 vandal resistant and IP67 weatherproof design
- Supports ONVIF Profile S and mobile remote access
Delivers full HD surveillance with a 2MP CMOS image sensor (1920×1080 resolution) for crisp and clear video.
Utilizes advanced H.265/HEVC and H.264 video compression to reduce bandwidth and storage usage.
Features a 2.8–12mm motorized zoom lens with auto focus, allowing flexible viewing angles and ease of setup.
Offers superior image quality in varying light conditions with 3D Noise Reduction (MCTF), 2D WDR, and DWDR up to 100dB.
Equipped with high-efficiency IR LEDs providing up to 30 meters night vision range for round-the-clock monitoring.
Day & Night function with IR cut filter for optimal image performance across lighting conditions.
Built with IK10 vandal-resistant and IP67 weatherproof housing for reliable operation in harsh environments.
Includes Digital I/O interface (1 input, 1 output) for integration with external devices and alarms.
Sturdy polycarbonate dome cover and 3-axis construction for versatile installation options.
Supports ONVIF Profile S for broad compatibility with third-party VMS and NVR systems.
Compatible with LILIN Pro mobile app (iOS and Android) for convenient remote viewing and control.
Operates in extreme temperatures from -30°C to +50°C, making it suitable for diverse installations.
Supports multiple resolutions and frame rates, including 30 fps at 1080p for smooth video playback.
Powered via DC12V or PoE with a maximum consumption of 9.6W for flexible deployment.
Backed by a 2-year warranty and certifications including CE and FCC for quality assurance.
| MODEL NAME | Z5R6422X3 1080P Day & Night Auto Focus IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 2MP CMOS (1920×1080) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| LENS TYPE | Motorized Zoom & Auto Focus (2.8–12mm) |
| 3D NOISE REDUCTION | MCTF |
| WDR | 2D WDR, DWDR up to 100dB |
| IR DISTANCE | 30m (850nm, 60°/90°) |
| DAY & NIGHT | IR cut removable |
| VANDAL RESISTANCE | IK10 |
| WEATHERPROOF RATING | IP67 |
| DIGITAL I/O | 1 input, 1 output |
| DOME COVER | Impact Resistant Polycarbonate |
| CONSTRUCTION | 3-Axis |
| ONVIF COMPLIANCE | Profile S |
| MOBILE APP SUPPORT | Integrated LILIN Pro (iOS, Android) |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR) |
| LENS APERTURE | F1.8–F3.3 |
| ANGLE OF VIEW (H) | 105.9°–36.5° |
| ANGLE OF VIEW (V) | 56.3°–20.4° |
| ANGLE OF VIEW (D) | 128°–41.6° |
| SENSOR SIZE | 1/2.7" CMOS |
| RESOLUTION OPTIONS | 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | 30 fps @ 1080p (60Hz), 25 fps @ 1080p (50Hz) |
| OPERATING TEMPERATURE | -30°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 9.6W |
| DIMENSIONS | Ø120 × 106 mm |
| WEIGHT | 760g |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 2 Years |
Z5R6422X3 1080P Dome IP Camera from LILIN delivers high-definition surveillance with advanced features suited for demanding environments. Featuring a 2MP CMOS sensor and motorized zoom with auto focus, this camera offers exceptional clarity and convenience for commercial and outdoor security installations. Built to withstand impact and weather, it’s the ideal choice for vandal-prone or outdoor areas.
Engineered for High Performance and Durability
The Z5R6422X3 is equipped with powerful IR LEDs offering up to 30 meters of night vision, and supports H.265/HEVC compression for efficient bandwidth usage. Its IK10 vandal resistance and IP67 weatherproof rating ensure reliable operation in extreme conditions. The camera's 3-axis construction and impact-resistant polycarbonate dome cover provide flexibility and robustness for secure mounting and long-term use.
- 2MP CMOS image sensor (1920×1080 resolution)
- Motorized 2.8–12mm lens with auto focus
- IR LEDs (850nm) with 30m range, 60°/90° beam angle
- H.265/HEVC, H.264, and MJPEG video compression
- Day & Night with removable IR-cut filter
- 3D Noise Reduction (MCTF), 2D WDR, DWDR up to 100dB
- IK10-rated vandal-resistant housing
- IP67 weatherproof certification
- Digital I/O: 1 input, 1 output
- ONVIF Profile S compliant for integration
- Compatible with LILIN Pro mobile app (iOS & Android)
Ideal for Commercial and Outdoor Security
With dual power support (DC12V / PoE) and a compact design, the Z5R6422X3 integrates seamlessly into a variety of professional security systems. From business premises to industrial perimeters, this camera provides consistent performance and reliable image quality. Installers benefit from its easy setup and flexible viewing angles.
- Corporate buildings and office parks
- Warehouse and industrial perimeters
- Retail stores and parking facilities
- School campuses and public spaces
Security professionals looking for a rugged and intelligent surveillance solution can rely on the Z5R6422X3 from LILIN for versatile deployment and advanced imaging features. Available through trusted USA access control and CCTV distributors.
Technical Specifications
- Model: Z5R6422X3
- Sensor: 1/2.7" CMOS, 2MP
- Min. Illumination: 0.01 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR)
- Lens: 2.8–12mm motorized, F1.8–F3.3
- Angle of View: H 105.9°–36.5°, V 56.3°–20.4°, D 128°–41.6°
- Max IR Distance: 30m
- Resolution: 2MP / 1.3MP / 1MP / D1 / VGA / CIF
- Frame Rate: 30 fps @ 1080p (60Hz), 25 fps @ 1080p (50Hz)
- Video Compression: H.265, H.264, MJPEG
- Power Supply: DC12V / PoE, Max 9.6W
- Operating Temperature: -30°C ~ +50°C
- Dimensions: Ø120 × 106 mm
- Weight: 760g
- Certifications: CE, FCC
- Warranty: 2 Years
