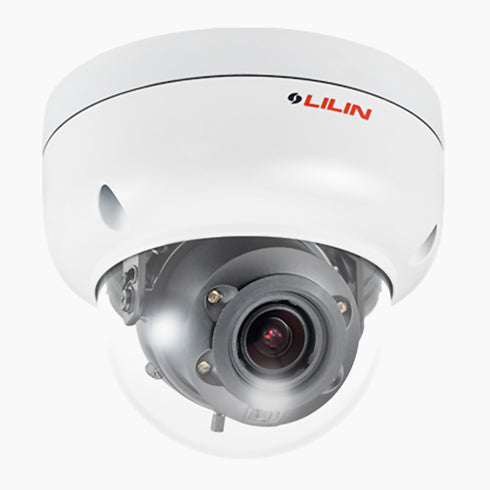

Z2R6452AX-P 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera (P-IRIS)
The Z2R6452AX-P is a high-performance 5MP dome IP camera designed for demanding security environments. It delivers full HD resolution with H.265 compression, offering superior image quality and efficient bandwidth usage. Featuring motorized zoom, auto focus, and P-IRIS technology, this camera ensures precise control and clarity. Built with vandal-resistant IK10 housing and IP67 weatherproof protection, it operates reliably in extreme conditions. Advanced features include smart IR illumination up to 30m, intelligent video analytics, digital PTZ, and flexible alarm/audio integration for versatile surveillance applications.
- 5MP CMOS sensor delivers 2592×1944 resolution at 25 FPS
- Motorized 2.8–12mm P-IRIS lens with auto focus
- Smart IR up to 30m with day and night functionality
- Weatherproof IP67 and vandal resistant IK10 design
- Supports H.265/H.264 compression with intelligent video analytics
Delivers crisp 5MP resolution (2592×1944) using a high-performance CMOS sensor for superior image clarity.
Supports H.265/HEVC and H.264 compression formats to optimize bandwidth and storage usage.
Equipped with a motorized 2.8–12mm P-IRIS lens featuring auto focus for flexible installation and sharp focusing.
Includes advanced Smart H.264/H.265 encoding for more efficient video streaming.
Offers 3D Noise Reduction (MCTF), 2D WDR, and 120dB HDR to enhance image quality in various lighting conditions.
Features built-in Digital PTZ, IVS (Intelligent Video Surveillance), and Smart Event detection for proactive monitoring.
Supports multiple detection types including tampering, audio, alarm, motion, and network loss.
Infrared LEDs provide up to 30 meters of night vision with Smart IR for balanced illumination in darkness.
Built-in Day & Night functionality with removable IR-cut filter ensures accurate color reproduction during the day and optimal performance at night.
Enables two-way audio communication and includes 1 input / 1 output alarm interface for enhanced interactivity.
Housed in a vandal-resistant IK10 and weatherproof IP67-rated polycarbonate dome cover with a 3-axis construction for versatile mounting.
ONVIF Profiles S and T supported for broad compatibility with third-party systems.
Operates reliably in extreme temperatures ranging from -40°C to +50°C, suitable for harsh environments.
Compact design with dimensions Ø120 × 106 mm and a weight of 760g for discreet surveillance deployment.
Powered via DC12V or PoE with a low power consumption of up to 9W for flexible installation options.
| MODEL NAME | Z2R6452AX-P 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera (P-IRIS) |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| SENSOR | 1/2.8" 5MP CMOS, 2616×1964 pixels |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR) |
| LENS | 2.8–12mm motorized, F1.4–F2.8, P-IRIS |
| ANGLE OF VIEW | 87°–30° (H), 62°–23° (V), 114°–37° (D) |
| MAX IR DISTANCE | 30m |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| RESOLUTION | 5MP (2592×1944) @ 25 FPS |
| SMART CODEC | Smart H.264/H.265 supported |
| IMAGE ENHANCEMENT | 3D Noise Reduction (MCTF), 2D WDR, HDR 120dB |
| DIGITAL FEATURES | Digital PTZ, IVS, Smart Event |
| DETECTION | Tampering / Audio / Alarm / Motion / Network Lost Detection |
| IR LED | 850nm, Smart IR |
| DAY & NIGHT | IR cut removable |
| AUDIO | Two-way Audio |
| ALARM I/O | 1-in / 1-out |
| CONSTRUCTION | Polycarbonate Dome Cover, 3-Axis construction |
| INTERFACE | ONVIF Profiles S/T supported |
| WEATHER RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE, Max 9W |
| DIMENSIONS | Ø120 × 106 mm |
| WEIGHT | 760g |
Z2R6452AX-P 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera (P-IRIS) from LILIN delivers high-performance surveillance with robust features for commercial and industrial environments. Designed with a vandal-resistant dome and weatherproof housing, this IP camera ensures reliable monitoring in both indoor and outdoor settings.
Advanced Imaging and Smart Surveillance
Equipped with a 5MP CMOS sensor and delivering Full HD resolution up to 2592×1944, the Z2R6452AX-P offers crystal-clear image quality. Its motorized zoom and auto focus lens (2.8–12mm, P-IRIS) allows flexible viewing angles and optimized clarity. With support for Smart H.264/H.265 compression, it reduces bandwidth and storage usage without compromising video quality.
- 5MP CMOS sensor, resolution up to 2592×1944
- H.265/HEVC & H.264 video compression
- Motorized zoom & auto focus lens (2.8–12mm, P-IRIS)
- Smart compression (H.264/H.265) for efficient streaming
- 3D Noise Reduction, 2D WDR, HDR 120dB
- Digital PTZ, IVS, Smart Event detection
- Advanced detection: Tampering, Audio, Alarm, Motion, Network Loss
- Smart IR LEDs with 30m range (850nm)
- Day & Night with removable IR cut filter
Durable, Secure, and Easy to Integrate
The Z2R6452AX-P features a polycarbonate dome cover and 3-axis construction for flexible installation. It is IK10 vandal-resistant and IP67 weatherproof, ensuring durability in harsh environments. ONVIF Profiles S/T support guarantees compatibility with various video management systems.
- Two-way audio support
- 1-in / 1-out Alarm I/O interface
- Weatherproof IP67, Vandal Resistant IK10
- ONVIF Profiles S/T compliant for integration
Technical Specifications
- Model: Z2R6452AX-P
- Min. Illumination: 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR)
- Lens: 2.8–12mm motorized, F1.4–F2.8, P-IRIS
- Angle of View: 87°–30° (H), 62°–23° (V), 114°–37° (D)
- Max IR Distance: 30m
- Sensor: 1/2.8" 5MP CMOS, 2616×1964 pixels
- Video Compression: H.265, H.264, MJPEG
- Resolution: 5MP (2592×1944) @ 25 FPS
- Operating Temperature: -40°C ~ +50°C
- Power: DC12V / PoE, Max 9W
- Dimensions: Ø120 × 106 mm
- Weight: 760g
