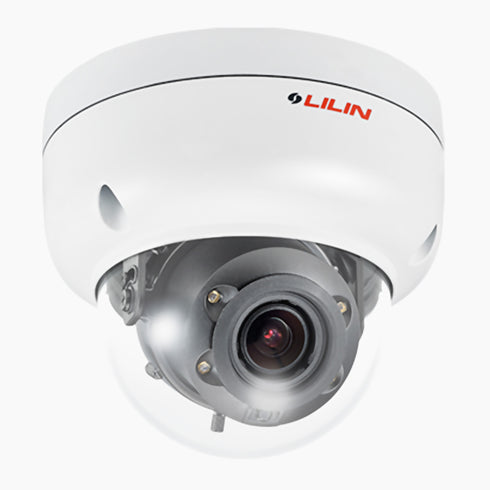

Z2R6452AX 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera
The Z2R6452AX 5MP Dome Camera provides superior image clarity and performance for both indoor and outdoor environments. Equipped with a 5MP CMOS sensor and a motorized 2.8–8mm autofocus lens, it captures detailed footage in Full HD resolution. The camera supports H.265/H.264 compression, ensuring efficient bandwidth and storage use. Featuring 3D noise reduction, HDR 120dB, and IR illumination up to 30 meters, it delivers clear images even in low-light conditions. Its vandal-resistant and weatherproof housing ensures reliable operation in harsh environments.
- 5MP CMOS sensor with Full HD resolution up to 2592×1944
- Motorized zoom lens with autofocus (2.8–8mm, F1.6)
- Infrared night vision up to 30 meters range
- Weatherproof IP67 and vandal-resistant IK10 housing
- Supports H.265/H.264 compression and ONVIF S/T profiles
Delivers high-resolution surveillance with a 5MP CMOS sensor supporting up to 2592×1944 Full HD video.
Supports H.265/HEVC and H.264 compression for efficient bandwidth and storage management.
Features a 2.8–8mm motorized zoom lens with auto focus for versatile monitoring and installation ease.
Equipped with Smart H.264/H.265 encoding to enhance streaming performance and reduce data usage.
Offers advanced image clarity using 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB.
Includes digital PTZ and intelligent video surveillance (IVS) functions for dynamic scene analysis.
Detects tampering, audio, motion, alarm events, and network disconnection for comprehensive security coverage.
Infrared LEDs provide clear night vision up to 30 meters with 850nm wavelength.
Day & Night functionality with IR cut filter ensures optimal performance in various lighting conditions.
Supports two-way audio communication and features 1 input / 1 output alarm interface.
Durable design with polycarbonate dome cover and 3-axis construction for flexible installation.
ONVIF Profiles S and T compliant for seamless integration with other surveillance systems.
Rated IP67 weatherproof and IK10 vandal resistant for reliable outdoor use in harsh environments.
Operates in extreme temperatures ranging from -40°C to +50°C for year-round functionality.
Compact and lightweight build with Ø120 × 106 mm dimensions and 760g weight, CE and FCC certified.
| MODEL NAME | Z2R6452AX 5MP Day & Night Auto Focus IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 5MP CMOS, 2616×1964 pixels |
| RESOLUTION | 5MP (2592×1944) @ 25 FPS |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| LENS | 2.8–8mm motorized, F1.6 |
| FOCUS | Auto Focus |
| ZOOM | Motorized Zoom |
| ANGLE OF VIEW | 95.3°–51.8° (H), 69.4°–38.6° (V), 124.2°–64.6° (D) |
| IR RANGE | 30m (850nm) |
| DAY/NIGHT FUNCTION | IR cut removable |
| MINIMUM ILLUMINATION | 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR) |
| DYNAMIC RANGE | HDR 120dB, 2D WDR |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| DIGITAL PTZ | Supported |
| SMART FEATURES | IVS, Smart Event |
| DETECTION | Tampering / Audio / Alarm / Motion / Network Lost |
| AUDIO | Two-way Audio |
| AUDIO I/O | 1-in / 1-out |
| ALARM I/O | 1-in / 1-out |
| NETWORK PROTOCOL | ONVIF Profiles S/T |
| HOUSING | Polycarbonate Dome Cover |
| MOUNTING | 3-Axis construction |
| WEATHERPROOF | IP67 |
| VANDAL RESISTANT | IK10 |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 9W |
| DIMENSIONS | Ø120 × 106 mm |
| WEIGHT | 760g |
| CERTIFICATIONS | CE, FCC |
Z2R6452AX 5MP Dome IP Camera from LILIN is a high-performance security solution built for versatile indoor and outdoor surveillance. Equipped with a 5MP CMOS sensor and advanced auto-focus motorized lens, this dome camera delivers detailed Full HD video at up to 2592×1944 resolution. Designed to endure tough environments, it is vandal-resistant (IK10) and weatherproof (IP67), ensuring reliable performance in all conditions.
Smart Surveillance with Advanced Imaging
The Z2R6452AX incorporates H.265/H.264 compression, Smart Codec support, and 120dB HDR for efficient bandwidth use and clear imaging in challenging light. With 3D Noise Reduction, 2D WDR, and Digital PTZ capabilities, it captures crisp footage in diverse scenarios. Enhanced with IVS and Smart Events, this camera detects motion, tampering, audio anomalies, network loss, and more for proactive monitoring.
- 5MP CMOS sensor with Full HD 2592×1944 resolution
- Motorized 2.8–8mm lens with auto focus
- Smart H.264/H.265 video compression
- HDR 120dB, 2D WDR, 3D Noise Reduction (MCTF)
- 30m IR range with removable IR cut filter
- Digital PTZ and Intelligent Video Surveillance (IVS)
- Supports tampering, motion, audio, alarm, and network loss detection
- Two-way audio and 1-in/1-out alarm I/O
- Durable polycarbonate dome with 3-axis construction
- Compliant with ONVIF Profiles S/T
- IK10 vandal resistance, IP67 weatherproof rating
Reliable Integration and Performance
Designed for integration with modern security systems, the Z2R6452AX supports ONVIF protocols and operates efficiently on DC12V or PoE power. Whether it's day or night, indoor or outdoor, this camera provides consistent, secure video surveillance for commercial, industrial, or public settings.
- Commercial and retail spaces
- Public safety and infrastructure
- Perimeter and facility surveillance
Security professionals looking for a high-resolution, rugged dome camera will find the Z2R6452AX from LILIN ideal for demanding surveillance environments.
Technical Specifications
- Model: Z2R6452AX
- Min. Illumination: 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR)
- Lens: 2.8–8mm motorized, F1.6
- Angle of View: H: 95.3°–51.8°, V: 69.4°–38.6°, D: 124.2°–64.6°
- Max IR Distance: 30m
- Sensor: 1/2.8" 5MP CMOS, 2616×1964 pixels
- Video Compression: H.265, H.264, MJPEG
- Resolution: 5MP (2592×1944) @ 25 FPS
- Operating Temperature: -40°C ~ +50°C
- Power: DC12V / PoE, Max 9W
- Dimensions: Ø120 × 106 mm
- Weight: 760g
- Certifications: CE, FCC
