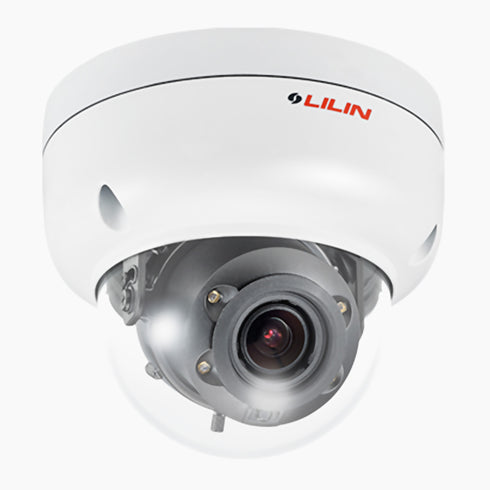

Z2R6422AX-P 1080P Day & Night Auto Focus IR Vandal Resistant IP Dome Camera (P-IRIS)
This 2MP Full HD dome camera delivers sharp 1080p video at up to 60FPS for round-the-clock surveillance. Equipped with a motorized zoom and auto-focus P-IRIS lens, it ensures clear imaging in varying light conditions. The camera features 3D noise reduction, HDR 120dB, and Smart IR with a 30m range for enhanced night visibility. Its rugged IP67 and IK10-rated housing provides superior protection against harsh weather and vandalism, making it ideal for industrial, commercial, or outdoor security applications.
- 2MP Full HD 1080p resolution at 60FPS
- Motorized zoom and auto-focus P-IRIS lens 2.8–12mm
- HDR 120dB and 3D noise reduction for clear imaging
- Smart IR illumination with 30m range for night vision
- IP67 and IK10 rated weatherproof vandal resistant housing
Delivers Full HD 1080p resolution at 60 frames per second for crisp, high-speed video surveillance.
Equipped with advanced H.265/HEVC and H.264 compression for efficient bandwidth and storage management.
Features a motorized 2.8–12mm zoom lens with Auto Focus and P-IRIS control for optimal image clarity.
Utilizes 3D Noise Reduction (MCTF), 2D WDR, and 120dB HDR to enhance image quality in challenging lighting.
Supports Digital PTZ and Intelligent Video Surveillance (IVS) for dynamic monitoring and smart event detection.
Built-in tampering, audio, alarm, motion, and network loss detection enhances security and system awareness.
Integrated Smart IR LEDs provide up to 30m of night vision with 850nm infrared illumination.
True Day & Night functionality with removable IR cut filter for round-the-clock surveillance.
Includes two-way audio and 1 input / 1 output alarm interface for interactive communication and alerts.
ONVIF Profile S/T/G compliant, ensuring broad compatibility with third-party systems.
Encased in weatherproof IP67 and vandal-resistant IK10 housing for reliable outdoor deployment.
Operates in extreme temperatures ranging from -40°C to +50°C, suitable for harsh environments.
Compact and durable design with 120mm diameter and 106mm height, weighing just 760g.
Supports DC12V and PoE power options, consuming a maximum of 9W for flexible installation.
Certified to CE, FCC, and UL standards for global compliance and trusted performance.
| MODEL NAME | Z2R6422AX-P |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 2MP CMOS, 1945×1097 pixels |
| RESOLUTION | 1920×1080 @ 60 FPS |
| MIN. ILLUMINATION | 0.003 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR) |
| LENS | 2.8–12mm motorized, F1.4–F2.8, P-IRIS |
| ANGLE OF VIEW | 93.1°–31.4° (H), 48.5°–18.1° (V), 110.2°–36.1° (D) |
| IR RANGE | 30m (850nm, Smart IR) |
| DAY & NIGHT | IR cut removable |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| FEATURES | 3D Noise Reduction (MCTF), 2D WDR, HDR 120dB |
| DIGITAL PTZ | Supported |
| SMART EVENTS | IVS, Tampering, Audio, Alarm, Motion, Network Lost Detection |
| AUDIO | Two-way Audio |
| ALARM I/O | 1-in / 1-out |
| ONVIF SUPPORT | Profile S/T/G |
| POWER | DC12V / PoE, Max 9W |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| DIMENSIONS | Ø120 × 106 mm |
| WEIGHT | 760g |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| CERTIFICATIONS | CE, FCC, UL |
Z2R6422AX-P 1080P Day & Night Auto Focus IR Vandal Resistant IP Dome Camera (P-IRIS) from LILIN delivers high-performance video surveillance in challenging environments. Designed with a 2MP CMOS sensor and capable of Full HD 1080p at 60FPS, this dome camera ensures superior image quality both day and night. Equipped with motorized zoom and auto focus via a 2.8–12mm P-IRIS lens, it provides exceptional clarity and flexibility for various surveillance needs.
Advanced Imaging and Smart Surveillance
The Z2R6422AX-P features advanced 3D Noise Reduction (MCTF), 2D WDR, and HDR 120dB for enhanced image quality in diverse lighting conditions. Its Digital PTZ and Intelligent Video Surveillance (IVS) capabilities enable efficient monitoring and event detection, while tampering, motion, audio, alarm, and network loss detection ensure reliable operation in any security setup.
- 2MP CMOS, Full HD 1080p @ 60FPS
- H.265/HEVC & H.264 compression
- Motorized Zoom & Auto Focus Lens (2.8–12mm, P-IRIS)
- HDR 120dB, 2D WDR, 3D Noise Reduction
- Smart IR LEDs with 30m range
- Day & Night with IR cut removable
- Digital PTZ, IVS, Smart Event features
- Two-way Audio, 1-in / 1-out Alarm I/O
- ONVIF Profile S/T/G supported
- IP67 Weatherproof, IK10 Vandal Resistant
Reliable Performance in Harsh Environments
Built to endure extreme conditions, the Z2R6422AX-P operates in temperatures ranging from -40°C to +50°C and features a rugged housing certified to IP67 and IK10 standards. With Smart IR and IR LEDs supporting up to 30 meters, it offers clear visibility in total darkness, making it ideal for commercial, industrial, and urban security applications.
- Pedestrian and vehicle monitoring in commercial spaces
- Perimeter and infrastructure surveillance
- High-traffic and vandal-prone locations
Security professionals trust LILIN to provide robust and intelligent IP surveillance solutions. The Z2R6422AX-P combines cutting-edge imaging, intelligent features, and rugged durability, making it a top choice for professional installations across diverse environments.
Technical Specifications
- Model: Z2R6422AX-P
- Min. Illumination: 0.003 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR)
- Lens: 2.8–12mm motorized, F1.4–F2.8, P-IRIS
- Angle of View: 93.1°–31.4° (H), 48.5°–18.1° (V), 110.2°–36.1° (D)
- Max IR Distance: 30m
- Sensor: 1/2.8" 2MP CMOS, 1945×1097 pixels
- Video Compression: H.265, H.264, MJPEG
- Resolution: 1920×1080 @ 60 FPS
- Operating Temp: -40°C ~ +50°C
- Power: DC12V / PoE, Max 9W
- Dimensions: Ø120 × 106 mm, Weight: 760g
- Certifications: CE, FCC, UL
