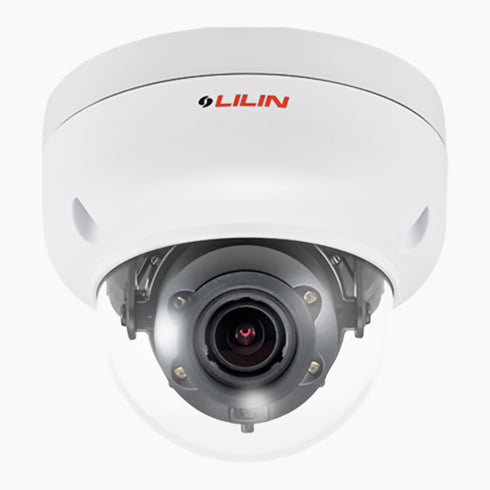

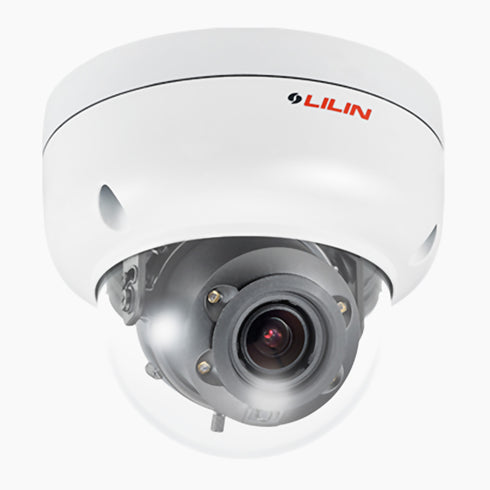

Z2R6422AX 1080P Day & Night Auto Focus IR Vandal Resistant IP Dome Camera
The Z2R6422AX is a professional-grade 2MP dome camera designed for reliable surveillance in demanding environments. It captures crystal-clear 1080p video at up to 60 frames per second with superior image quality using advanced HDR and 3D noise reduction technologies. Its motorized zoom lens and auto focus simplify installation and adjustment. Equipped with infrared illumination for up to 30 meters and weatherproof, vandal-resistant housing, this camera ensures dependable operation day and night, indoors or outdoors, even under extreme temperatures.
- 2MP CMOS sensor with Full HD 1080p resolution at 60FPS
- Motorized 2.8–8mm auto focus zoom lens
- Infrared range up to 30 meters for night vision
- Weatherproof IP67 and vandal-resistant IK10 rating
- Supports H.265, H.264, and ONVIF Profiles S T G
Delivers crisp Full HD 1080p video at 60FPS using a 2MP CMOS sensor for high-quality surveillance footage.
Supports advanced video compression standards including H.265/HEVC and H.264 for efficient storage and streaming.
Features a motorized 2.8–8mm zoom lens with auto focus for flexible and precise field of view adjustments.
Equipped with 3D Noise Reduction (MCTF), 2D WDR, and HDR 120dB for enhanced image clarity in varied lighting conditions.
Offers digital PTZ and intelligent video surveillance (IVS) capabilities for smart monitoring and analytics.
Includes tampering, audio, alarm, motion, and network loss detection for comprehensive security event coverage.
Infrared LEDs provide clear night vision up to 30 meters, with a removable IR cut filter for true day/night functionality.
Supports two-way audio and includes 1 input and 1 output alarm interface for interactive security setups.
Compliant with ONVIF Profile S/T/G for seamless integration with third-party systems and platforms.
Built to withstand harsh conditions with an IP67 weatherproof rating and IK10 vandal resistance for outdoor use.
Operates reliably in extreme temperatures ranging from -40°C to +50°C for versatile deployment environments.
Compact design with dimensions Ø120 × 106 mm and a weight of 760g for unobtrusive installation.
Certified to CE, FCC, and UL standards for assured safety and regulatory compliance.
Supports dual power options with DC12V or PoE, consuming a maximum of 9W for energy-efficient operation.
Wide viewing angles: Horizontal 108.1°–56.7°, Vertical 57.6°–31.6°, Diagonal 130.4°–64.8° for expansive coverage.
| MODEL NAME | Z2R6422AX 1080P Day & Night Auto Focus IR Vandal Resistant IP Dome Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 2MP CMOS, 1945×1097 pixels |
| MIN. ILLUMINATION | 0.007 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR) |
| LENS | 2.8–8mm motorized, F1.6 |
| ANGLE OF VIEW | 108.1°–56.7° (H), 57.6°–31.6° (V), 130.4°–64.8° (D) |
| IR DISTANCE | 30m (850nm) |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| RESOLUTION / FRAME RATE | 1920×1080 @ 60 FPS |
| WDR / HDR | 2D WDR, HDR 120dB |
| 3D NOISE REDUCTION | Yes (MCTF) |
| DIGITAL PTZ | Supported |
| SMART FEATURES | IVS, Smart Event |
| DETECTION | Tampering, Audio, Alarm, Motion, Network Lost |
| DAY & NIGHT | IR Cut Removable |
| AUDIO | Two-way Audio |
| ALARM I/O | 1-in / 1-out |
| ONVIF | Profile S/T/G supported |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 9W |
| DIMENSIONS | Ø120 × 106 mm |
| WEIGHT | 760g |
| CERTIFICATIONS | CE, FCC, UL |
Z2R6422AX 1080P Day & Night Auto Focus IR Vandal Resistant IP Dome Camera from LILIN delivers high-performance surveillance with full HD resolution and intelligent monitoring capabilities. Engineered with a 2MP CMOS sensor and advanced H.265/HEVC compression, it ensures sharp video quality and efficient data storage for professional security applications.
Advanced Surveillance Features
The Z2R6422AX comes equipped with a motorized zoom and auto focus lens (2.8–8mm) that provides flexible viewing angles and precision focusing. It includes 3D noise reduction (MCTF), 2D WDR, and HDR 120dB for clear imaging in diverse lighting conditions. The built-in IR LEDs support up to 30 meters of night vision for round-the-clock monitoring, while features like Digital PTZ, IVS, and smart event detection enhance situational awareness.
- 2MP CMOS, Full HD 1080p @ 60FPS
- H.265/HEVC & H.264 compression
- Motorized Zoom & Auto Focus Lens (2.8–8mm)
- 3D Noise Reduction (MCTF), 2D WDR, HDR 120dB
- Digital PTZ, IVS, Smart Event
- IR LEDs with 30m range (850nm)
- Two-way Audio, Alarm I/O, and Network Detection
- ONVIF Profile S/T/G support for system integration
- IP67 weatherproof and IK10 vandal-resistant
Reliable Integration for Professional Environments
Designed for harsh environments and high-security installations, the Z2R6422AX supports DC12V and PoE power options and offers robust protection against tampering and weather exposure. Its compact form factor and versatile installation options make it ideal for commercial buildings, public infrastructure, and remote surveillance points.
- Public infrastructure surveillance
- Commercial and industrial facilities
- Transportation and logistics security
Security integrators and professionals trust LILIN for durable, intelligent IP dome cameras that deliver top-tier performance in dynamic security environments. The Z2R6422AX ensures comprehensive coverage and reliable operation with minimal maintenance.
Technical Specifications
- Model: Z2R6422AX
- Min. Illumination: 0.007 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR)
- Lens: 2.8–8mm motorized, F1.6
- Angle of View: 108.1°–56.7° (H), 57.6°–31.6° (V), 130.4°–64.8° (D)
- Max IR Distance: 30m
- Sensor: 1/2.8" 2MP CMOS, 1945×1097 pixels
- Video Compression: H.265, H.264, MJPEG
- Resolution: 1920×1080 @ 60 FPS
- Operating Temp: -40°C ~ +50°C
- Power: DC12V / PoE, Max 9W
- Dimensions: Ø120 × 106 mm, Weight: 760g
- Certifications: CE, FCC, UL
