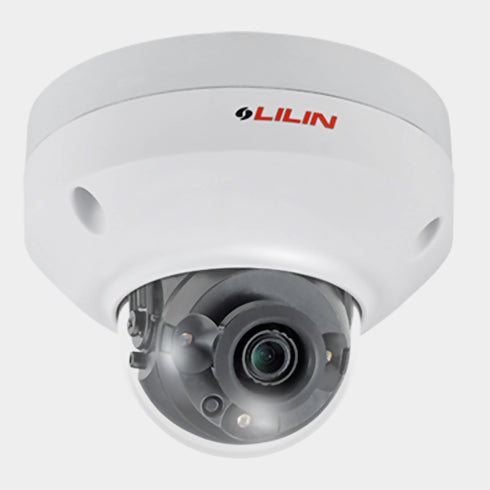

P2R6352AE4 5MP Day & Night Fixed IR Vandal Resistant Dome IP Camera
This 5MP dome IP camera offers high-definition surveillance performance with advanced image clarity for both day and night operation. Featuring a fixed 4mm lens, IR range up to 30 meters, and wide dynamic range support, it ensures optimal performance in diverse lighting conditions. Built with weatherproof and vandal-resistant housing, it is ideal for outdoor and high-security installations. The camera supports H.265 compression, two-way audio, and intelligent video analytics for enhanced monitoring and system integration.
- 5MP high-resolution CMOS image sensor for clear, detailed footage
- Fixed 4mm lens with 76.6° horizontal field of view
- IR LEDs provide up to 30m night vision coverage
- IP67 weatherproof and IK10 vandal-resistant construction
- Supports ONVIF profiles S, T, and G for compatibility
Captures crisp surveillance footage with a high-resolution 5MP CMOS image sensor (2592×1944).
Supports H.265/HEVC and H.264 compression formats for efficient video storage and streaming.
Features a fixed 4mm F1.6 lens, delivering a 76.6° horizontal field of view for broad area coverage.
Enhanced low-light performance with Day & Night functionality and removable IR-cut filter.
Integrated IR LEDs offer up to 30 meters of night vision with 850nm infrared illumination.
Delivers excellent image clarity with 3D Noise Reduction (MCTF), 2D WDR, and up to 120dB HDR.
Enables two-way audio with support for G.711, PCM, and AAC codecs, requiring an external mic.
Supports advanced analytics like Digital PTZ, IVS, and Smart Events for intelligent monitoring.
Built to endure harsh conditions with an IP67 weatherproof and IK10 vandal-resistant housing.
ONVIF Profiles S / T / G compliant for seamless integration with third-party systems.
Equipped with 1 alarm input and 1 output for enhanced security control.
Features a rugged polycarbonate dome cover and 3-axis mounting design for flexible installation.
Compatible with the LILIN Pro mobile app for remote viewing on iOS and Android devices.
Operates in extreme temperatures ranging from -40°C to +50°C, ideal for varied environments.
Backed by CE, FCC, and UL certifications and comes with a 3-year manufacturer's warranty.
| MODEL NAME | P2R6352AE4 5MP Day & Night Fixed IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 5MP CMOS (2592×1944) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| LENS | Fixed 4mm, F1.6 |
| SMART VIDEO CODEC | Smart H.264/H.265 supported |
| DYNAMIC RANGE | 2D WDR, HDR up to 120dB |
| 3D NOISE REDUCTION | MCTF |
| IR RANGE | 30m (850nm, 60°) |
| DAY & NIGHT | IR cut removable |
| AUDIO | 2-way Audio (G.711/PCM/AAC, SIP), external mic required |
| ALARM I/O | 1 in / 1 out |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANT | IK10 |
| ONVIF SUPPORT | Profiles S / T / G |
| DIGITAL PTZ | Supported |
| IVS / SMART EVENTS | Supported |
| HOUSING | Impact resistant polycarbonate dome cover |
| CAMERA CONSTRUCTION | 3-Axis |
| MOBILE APP SUPPORT | Integrated LILIN Pro (iOS, Android) |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 76.6°(H), 55.8°(V), 98.6°(D) |
| SENSOR SIZE | 1/2.8" CMOS |
| SUPPORTED RESOLUTIONS | 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Up to 25 fps @ 5MP |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 7.5W |
| DIMENSIONS | Ø110 × 89 mm |
| WEIGHT | 520g |
| CERTIFICATIONS | CE, FCC, UL |
| WARRANTY | 3 Years |
P2R6352AE4 5MP Day & Night Fixed IR Vandal Resistant Dome IP Camera from LILIN is a high-performance surveillance solution built for dependable operation in challenging environments. Equipped with a 5MP CMOS sensor and H.265/H.264 compression, this compact IP dome camera delivers superior video quality, advanced IR capabilities, and robust durability for both indoor and outdoor installations.
Advanced Imaging and Intelligent Features
The P2R6352AE4 offers excellent video clarity with HDR up to 120dB and 3D noise reduction. It is ideal for low-light applications with a minimum illumination of 0.01 Lux (Color) and 0 Lux with IR. The integrated 30m IR LEDs and day & night IR cut filter ensure round-the-clock surveillance performance. With support for digital PTZ, IVS, and smart events, this camera enhances situational awareness and proactive security management.
- 5MP CMOS sensor (2592×1944 resolution)
- Fixed 4mm lens, F1.6 with 98.6° diagonal view
- Smart H.265/H.264 video compression
- HDR up to 120dB, 3D Noise Reduction, 2D WDR
- IR LEDs with 30m range for night vision
- 2-way audio support (external mic required)
- Alarm I/O: 1 input / 1 output
- Digital PTZ, IVS, and smart event detection
Rugged, Vandal-Resistant, and Mobile-Ready
Engineered for durability, the P2R6352AE4 features an impact-resistant polycarbonate dome, IK10 vandal resistance, and IP67 weatherproofing. Its 3-axis construction allows flexible installation, while the LILIN Pro mobile app ensures remote access from iOS and Android devices. ONVIF compliance guarantees compatibility with leading NVRs and VMS platforms.
- IP67 weatherproof and IK10 vandal resistant
- Impact-resistant dome with 3-axis adjustment
- Integrated mobile support (iOS/Android)
- ONVIF Profiles S / T / G supported
- CE, FCC, UL certified
Security professionals seeking a rugged, high-resolution IP dome camera can rely on the P2R6352AE4 from LILIN for smart, efficient, and dependable surveillance coverage in any environment.
Technical Specifications
- Model: P2R6352AE4
- Image Sensor: 1/2.8" CMOS, 5MP
- Min. Illumination: 0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR)
- Lens: Fixed 4mm, F1.6
- Angle of View: 76.6°(H), 55.8°(V), 98.6°(D)
- IR Distance: Max 30m
- Video Compression: H.265, H.264, MJPEG
- Resolutions: 5MP to CIF
- Frame Rate: Up to 25 fps @ 5MP
- Audio: 2-way (G.711/PCM/AAC, SIP)
- Alarm I/O: 1 in / 1 out
- Power: DC12V / PoE, Max 7.5W
- Operating Temp: -40°C ~ +50°C
- Dimensions: Ø110 × 89 mm
- Weight: 520g
- Certifications: CE, FCC, UL
- Warranty: 3 Years
