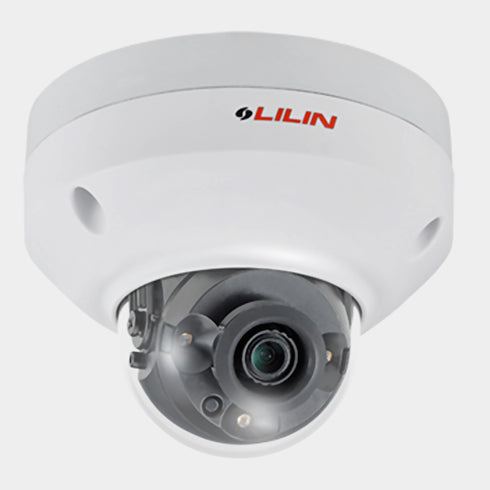

P2R6322AE4 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera
The P2R6322AE4 1080P Dome IP Camera delivers outstanding Full HD surveillance performance with a 2MP CMOS sensor and advanced H.265 compression. Designed for day and night monitoring, it features IR illumination up to 30 meters, a 4mm fixed lens, and wide dynamic range for superior image clarity. The weatherproof and vandal-resistant housing ensures reliable operation in harsh environments. With smart event detection, 2-way audio, and microSD storage up to 1TB, this camera offers dependable security for professional installations in both indoor and outdoor settings.
- Full HD 1080p resolution with 2MP CMOS sensor
- IR range up to 30 meters for clear night vision
- Fixed 4mm lens with wide 91° viewing angle
- IP67 weatherproof and IK10 vandal resistant design
- Supports PoE power and microSD storage up to 1TB
Delivers full HD 2MP resolution (1920×1080) using a high-quality CMOS image sensor for crisp, detailed video capture.
Supports advanced H.265/HEVC and H.264 compression formats for efficient bandwidth and storage usage.
Equipped with a fixed 4mm lens (F1.6) offering a wide horizontal viewing angle of 91.0° for optimal surveillance coverage.
Features Day & Night functionality with a removable IR-cut filter for seamless transitions between lighting conditions.
Built-in IR LEDs provide night vision capabilities up to 30 meters with 850nm illumination.
Includes 3D Noise Reduction (MCTF), 2D Wide Dynamic Range, and HDR up to 120dB for enhanced image clarity in varied lighting.
Integrates 2-way audio support via external microphone and speaker, compatible with G.711/PCM/AAC codecs and SIP protocol.
Offers alarm input/output (1 in / 1 out) for external sensor or device integration in security systems.
Constructed with IP67-rated weatherproof housing and IK10 vandal resistance for robust outdoor durability.
Supports ONVIF Profiles S / T / G, ensuring broad compatibility with third-party systems and VMS platforms.
Features digital PTZ, intelligent video surveillance (IVS), and smart event capabilities for proactive monitoring.
Designed with a 3-axis polycarbonate dome structure for flexible and secure installation.
Compatible with LILIN Pro mobile app for convenient remote access via iOS and Android devices.
Supports microSD card recording up to 1TB capacity for edge storage (card not included).
Operates reliably in extreme temperatures from -40°C to +50°C, ideal for diverse environments.
| MODEL NAME | P2R6322AE4 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | Full HD 2MP CMOS (1920×1080) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| LENS | Fixed 4mm, F1.6 |
| 3D NOISE REDUCTION | Yes (MCTF) |
| WDR | 2D WDR, HDR up to 120dB |
| IR DISTANCE | 30m (850nm, 60°) |
| DAY & NIGHT | IR cut removable |
| AUDIO | 2-way Audio (G.711/PCM/AAC, SIP), external mic required |
| ALARM I/O | 1 in / 1 out |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| ONVIF SUPPORT | Profiles S / T / G |
| PTZ | Digital PTZ |
| SMART FEATURES | IVS, Smart Events |
| DOME COVER | Impact resistant polycarbonate |
| CONSTRUCTION | 3-Axis |
| MOBILE APP SUPPORT | Integrated LILIN Pro (iOS, Android) |
| SD CARD RECORDING | Supported (microSD up to 1TB, not included) |
| MIN. ILLUMINATION | 0.004 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 91.0°(H), 48.0°(V), 109.0°(D) |
| SENSOR SIZE | 1/2.8" CMOS, 2MP |
| RESOLUTIONS SUPPORTED | 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Up to 60 fps @ 1080p |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE, Max 7.5W |
| DIMENSIONS | Ø110 × 89 mm |
| WEIGHT | 520g |
| CERTIFICATIONS | CE, FCC, UL |
| WARRANTY | 3 Years |
P2R6322AE4 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera from LILIN delivers exceptional Full HD performance with advanced image processing and rugged construction, ideal for both indoor and outdoor surveillance. Featuring a 2MP CMOS sensor and H.265/H.264 compression, this IP dome camera ensures crisp, efficient video streaming under varying lighting conditions.
High-Definition Imaging and Smart Video Technology
The P2R6322AE4 captures sharp details with 1920×1080 resolution and a fixed 4mm lens (F1.6), providing wide coverage with minimal distortion. Advanced imaging technologies such as 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB deliver clear footage in complex lighting. The IR LEDs extend visibility up to 30 meters for superior night performance.
- Full HD 1080p resolution (2MP CMOS sensor)
- H.265/HEVC & H.264 video compression for bandwidth efficiency
- Fixed 4mm lens with F1.6 aperture
- 3D Noise Reduction, WDR, HDR (120dB) for superior clarity
- IR illumination up to 30m range (850nm, 60° coverage)
Reliable Surveillance in Any Environment
Engineered with IP67 weatherproof and IK10 vandal-resistant housing, the P2R6322AE4 performs reliably in harsh outdoor conditions. Its 3-axis construction allows easy installation and positioning. The camera supports Day & Night operation with removable IR-cut filter, ensuring precise color accuracy during the day and sharp monochrome vision at night.
- IP67 weatherproof and IK10 vandal-resistant construction
- 3-axis design for flexible installation
- Impact-resistant polycarbonate dome cover
- Operating temperature: -40°C to +50°C
- Supports PoE or 12VDC power input
Smart Integration and Advanced Features
Built for intelligent monitoring, this camera supports ONVIF Profiles S/T/G, digital PTZ, and Smart IVS events for analytics-driven security. It includes 2-way audio support (external mic required), alarm I/O (1 in / 1 out), and microSD recording up to 1TB. Compatible with the LILIN Pro mobile app for iOS and Android, it enables remote access and real-time monitoring from anywhere.
- ONVIF compliant (Profiles S / T / G)
- Digital PTZ and intelligent video analytics
- Two-way audio communication (G.711/PCM/AAC)
- MicroSD recording up to 1TB (card not included)
- LILIN Pro app for iOS and Android remote monitoring
Technical Specifications
- Model: P2R6322AE4
- Sensor: 1/2.8" CMOS, 2MP (1920×1080)
- Lens: Fixed 4mm, F1.6
- Angle of View: 91°(H), 48°(V), 109°(D)
- Min. Illumination: 0.004 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR)
- Max IR Distance: 30m
- Video Compression: H.265, H.264, MJPEG
- Frame Rate: up to 60 fps @ 1080p
- Audio: 2-way, G.711/PCM/AAC
- Alarm I/O: 1 input / 1 output
- Power Supply: DC12V / PoE (Max 7.5W)
- Operating Temperature: -40°C ~ +50°C
- Dimensions: Ø110 × 89 mm
- Weight: 520g
- Certifications: CE, FCC, UL
- Warranty: 3 Years
Designed for professional-grade IP surveillance, the LILIN P2R6322AE4 provides clear video, robust build quality, and smart integration for security systems in commercial, industrial, and public environments.
