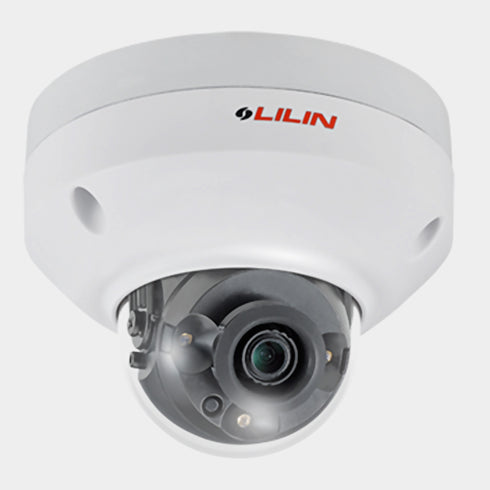

P2R6322AE2 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera
The P2R6322AE2 dome camera delivers high-definition 1080P video performance with advanced H.265 compression for efficient storage and streaming. Designed for durability, it features an IK10 vandal-resistant housing and IP67 weatherproof protection, ensuring reliable operation in demanding environments. Equipped with infrared LEDs providing up to 30 meters of night vision, the camera captures clear footage even in total darkness. It supports smart events, digital PTZ, and two-way audio functionality for comprehensive monitoring. Ideal for both indoor and outdoor security setups, it offers flexible installation with PoE or 12V DC power options.
- Full HD 1080P resolution with H.265/H.264 compression
- IR LEDs with 30m night vision range
- Vandal resistant and weatherproof housing
- Supports smart events and digital PTZ
- Operates in temperatures from -40°C to +50°C
Captures clear video with a Full HD 2MP CMOS sensor (1920×1080 resolution).
Supports advanced H.265/HEVC and H.264 video compression for efficient bandwidth usage.
Equipped with a fixed 2.8mm lens (F1.6) delivering a wide 119.1° diagonal field of view.
Provides superior low-light performance with 0.005 Lux (Color), 0.002 Lux (B/W), and 0 Lux with IR.
Built-in IR LEDs with 30m range and 850nm wavelength for enhanced night vision.
Features 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB for image clarity in varied lighting.
Supports Day & Night functionality with an IR-cut removable filter for seamless transition.
Includes 2-way audio capability (G.711/PCM/AAC, SIP) with external microphone support.
Alarm I/O interface with 1 input and 1 output for integrated security event management.
Rugged IP67 weatherproof and IK10 vandal-resistant construction for outdoor use.
ONVIF Profiles S, T, and G compliant for compatibility with third-party systems.
Enables Digital PTZ, Intelligent Video Surveillance (IVS), and smart event detection features.
Impact-resistant polycarbonate dome with 3-axis adjustment for flexible installation.
Supports microSD card recording up to 1TB for local video storage (card not included).
Compatible with the LILIN Pro mobile app for iOS and Android for remote monitoring.
| MODEL NAME | P2R6322AE2 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | Full HD 2MP CMOS (1920×1080) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| LENS | Fixed 2.8mm, F1.6 |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| DYNAMIC RANGE | 2D WDR, HDR up to 120dB |
| IR LED RANGE | 30m (850nm, 60°) |
| DAY/NIGHT FUNCTION | IR cut removable |
| AUDIO | 2-way Audio (G.711/PCM/AAC, SIP), external mic required |
| ALARM I/O | 1 input / 1 output |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| ONVIF SUPPORT | Profiles S / T / G |
| DIGITAL PTZ | Supported |
| INTELLIGENT VIDEO | IVS, Smart Events |
| HOUSING | Impact resistant polycarbonate dome, 3-Axis construction |
| MOBILE APP | Integrated LILIN Pro mobile app (iOS, Android) |
| SD CARD SUPPORT | microSD up to 1TB (not included) |
| MIN. ILLUMINATION | 0.005 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 104.4°(H), 58.1°(V), 119.1°(D) |
| MAX IR DISTANCE | 30m |
| SENSOR SIZE | 1/2.8" CMOS |
| SUPPORTED RESOLUTIONS | 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Up to 60 fps @ 1080p |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 7.5W |
| DIMENSIONS | Ø110 × 89 mm |
| WEIGHT | 520g |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 3 Years |
P2R6322AE2 1080P Day & Night Fixed IR Vandal Resistant Dome IP Camera from LILIN delivers professional-grade video surveillance in a compact and durable form. With a Full HD 2MP CMOS image sensor and advanced video compression technologies, it ensures high-quality footage with efficient bandwidth use. The fixed 2.8mm lens offers wide-angle coverage, while integrated IR LEDs provide clear night vision up to 30 meters.
High-Performance Imaging and Smart Features
The P2R6322AE2 is equipped with 3D Noise Reduction, 2D WDR, and HDR up to 120dB for superior image clarity in diverse lighting conditions. Its digital PTZ, IVS, and smart event detection capabilities enable intelligent monitoring and detailed scene analysis. Ideal for both day and night applications, the camera supports removable IR cut filters for enhanced low-light performance.
- 2MP resolution (1920x1080) at up to 60fps
- Smart H.264/H.265 compression
- Fixed 2.8mm lens, F1.6
- IR range up to 30m with 850nm LEDs
- Day & Night functionality with removable IR cut
- 3D Noise Reduction, HDR up to 120dB
- 2-way audio support with external mic
- Alarm I/O: 1 input / 1 output
Rugged Design for Demanding Environments
Built to endure tough conditions, the camera boasts an IP67 weatherproof and IK10 vandal resistant housing. Its compact 3-axis construction and impact-resistant polycarbonate dome make it suitable for installations in public and high-risk areas. With integrated mobile app support for iOS and Android, remote monitoring is seamless and intuitive.
- IP67-rated weatherproof housing
- IK10-rated vandal resistance
- Impact-resistant polycarbonate dome
- 3-axis mechanical design for flexible installation
- Integrated LILIN Pro app (iOS/Android)
- SD card recording (microSD up to 1TB, not included)
Technical Specifications
- Model: P2R6322AE2
- Min. Illumination: 0.005 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR)
- Lens: Fixed 2.8mm, F1.6
- Angle of View: 104.4°(H), 58.1°(V), 119.1°(D)
- Sensor: 1/2.8" CMOS, 2MP
- Video Compression: H.265, H.264, MJPEG
- Resolution Options: 2MP / 1.3MP / 1MP / D1 / VGA / CIF
- Frame Rate: Up to 60fps @ 1080p
- Max IR Distance: 30 meters
- Power Input: DC12V / PoE, Max 7.5W
- Operating Temperature: -40°C ~ +50°C
- Dimensions: Ø110 × 89 mm
- Weight: 520g
- Certifications: CE, FCC
- Warranty: 3 Years
