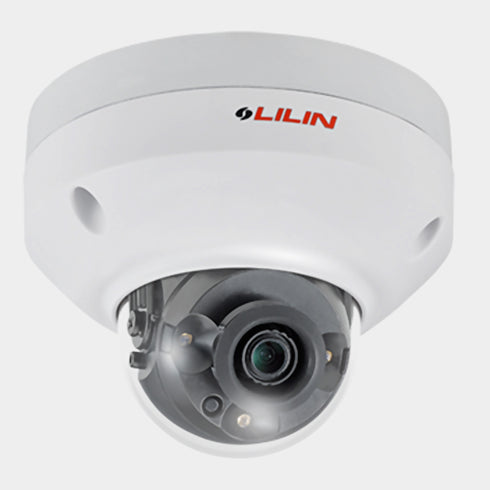

P2R3052AE2 5MP Day & Night Fixed IR Dome IP Camera
The P2R3052AE2 is a high-performance 5MP dome IP camera designed for clear day and night surveillance. Featuring advanced H.265/H.264 compression, a fixed 2.8mm lens, and built-in infrared illumination up to 30 meters, it ensures detailed imaging in all lighting conditions. The camera supports 3D noise reduction, HDR up to 120dB, and two-way audio communication. With ONVIF compatibility, MicroSD recording, and mobile app integration, it offers a flexible and reliable solution for professional indoor and outdoor monitoring applications.
- 5MP CMOS sensor delivers 2592×1944 resolution with vivid image quality
- H.265/H.264 compression reduces bandwidth and storage usage
- IR illumination up to 30 meters for effective night monitoring
- Supports two-way audio and alarm input/output for enhanced control
- PoE and 12V DC power options for flexible installation
Captures high-resolution footage with a 5MP CMOS image sensor (2592×1944) for detailed video surveillance.
Supports advanced H.265/HEVC and H.264 compression standards to reduce bandwidth and storage usage.
Equipped with a 2.8mm fixed lens (F1.6) to provide a wide angle of view: 92.8° horizontal, 68.8° vertical, and 116.5° diagonal.
Integrates a sensitive built-in microphone and supports two-way audio (G.711/PCM/AAC, SIP) for enhanced communication capabilities.
Includes 1 audio input and 1 audio output, along with 1 alarm input and 1 alarm output for external device integration.
Features Smart H.264/H.265 support and advanced image enhancements such as 3D Noise Reduction (MCTF), 2D WDR, and HDR up to 120dB.
Built-in IR LEDs provide clear night vision up to 30 meters with an IR wavelength of 850nm and a 60° beam angle.
Day & Night functionality with removable IR cut filter for true color reproduction in varying lighting conditions.
Supports digital PTZ, intelligent video surveillance (IVS), and smart event detection for proactive monitoring.
Compatible with ONVIF Profiles S / T / G, ensuring broad interoperability with third-party systems.
Features 3-axis construction for flexible and easy installation at various angles.
Integrated with the LILIN Pro mobile app (iOS, Android) for remote viewing and control.
Supports local video storage with MicroSD card up to 1TB (card not included).
Operates reliably in temperatures ranging from -20°C to +50°C and powered via DC12V or PoE (IEEE 802.3af).
Comes with CE and FCC certifications and backed by a 3-year warranty for quality assurance.
| MODEL NAME | P2R3052AE2 5MP Day & Night Fixed IR Dome IP Camera |
| PRODUCT TYPE | IP Dome Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 5MP CMOS image sensor (2592×1944) |
| COMPRESSION FORMAT | H.265/HEVC & H.264 high-performance compression |
| LENS | Fixed 2.8mm lens, F1.6 |
| AUDIO | Built-in sensitive microphone & 2-way audio (G.711/PCM/AAC, SIP) |
| AUDIO I/O | 1 in / 1 out |
| ALARM I/O | 1 in / 1 out |
| SMART CODEC SUPPORT | Smart H.264/H.265 supported |
| IMAGE ENHANCEMENT | 3D Noise Reduction (MCTF), 2D WDR, HDR up to 120dB |
| IR LED RANGE | 30m range (850nm, 60°) |
| DAY & NIGHT FUNCTION | IR cut removable |
| PTZ FUNCTION | Digital PTZ |
| INTELLIGENT VIDEO | IVS, Smart Events |
| ONVIF SUPPORT | Profiles S / T / G supported |
| CONSTRUCTION | 3-Axis construction |
| MOBILE APP INTEGRATION | Integrated with LILIN Pro mobile app (iOS, Android) |
| STORAGE | MicroSD recording supported (up to 1TB, card not included) |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR) |
| ANGLE OF VIEW | 92.8°(H), 68.8°(V), 116.5°(D) |
| MAX IR DISTANCE | 30m |
| VIDEO RESOLUTION | 5MP / 4MP / 3.1MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Up to 25 fps @ 5MP |
| OPERATING TEMPERATURE | -20°C ~ +50°C |
| POWER SUPPLY | DC12V ±10% / PoE (IEEE 802.3af), Max 7.5W |
| DIMENSIONS | Ø110 × 89 mm |
| WEIGHT | 365g |
| CASING | Plastic |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 3 Years |
P2R3052AE2 5MP Day & Night Fixed IR Dome IP Camera from LILIN delivers high-resolution surveillance performance for both day and night conditions. Designed with a robust 5MP CMOS image sensor and advanced compression technologies, this dome IP camera ensures clear, efficient video capture in commercial, residential, or industrial environments. The integrated microphone and 2-way audio support provide enhanced situational awareness and communication.
Advanced Imaging and Smart Surveillance
Equipped with a fixed 2.8mm lens and HDR up to 120dB, the P2R3052AE2 captures wide-angle, high-clarity footage even in variable lighting. It includes smart features like IVS, Digital PTZ, and Smart Events for proactive monitoring. Built-in IR LEDs extend night vision capabilities up to 30 meters, and the 3-axis construction ensures flexible installation on various surfaces. ONVIF compliance ensures compatibility with major NVR systems.
- 5MP CMOS sensor (2592×1944) resolution
- H.265/HEVC & H.264 compression technology
- Fixed 2.8mm lens with F1.6 aperture
- Built-in mic and 2-way audio (G.711/PCM/AAC, SIP)
- Smart H.264/H.265, IVS, Smart Events
- IR range up to 30m with 850nm LEDs
- 2D WDR and HDR (up to 120dB) for challenging lighting
- 3D Noise Reduction (MCTF) for enhanced clarity
- ONVIF Profiles S / T / G supported
- Integrated with LILIN Pro mobile app (iOS, Android)
Reliable, Easy to Deploy, and Scalable
The P2R3052AE2 supports MicroSD card recording (up to 1TB, card not included) and is powered via DC12V or PoE for flexible deployment. It is ideal for small-to-large scale surveillance setups requiring dependable, high-quality video. The compact, plastic-cased dome is built for both indoor and sheltered outdoor use, with CE and FCC certifications for assurance of quality and compliance.
- Homes, offices, and retail spaces
- Parking lots and warehouse perimeters
- Commercial and public facilities
Security professionals and system integrators can rely on the P2R3052AE2 from LILIN for intelligent, scalable, and efficient video surveillance with full audio and smart event capabilities.
Technical Specifications
- Model: P2R3052AE2
- Image Sensor: 5MP CMOS (2592×1944)
- Min. Illumination: 0.01 Lux (Color), 0.004 Lux (B/W), 0 Lux (IR)
- Lens: Fixed 2.8mm, F1.6
- Angle of View: 92.8°(H), 68.8°(V), 116.5°(D)
- Max IR Distance: 30 meters
- Frame Rate: Up to 25 fps @ 5MP
- Power Supply: DC12V ±10% / PoE (IEEE 802.3af)
- Power Consumption: Max 7.5W
- Operating Temperature: -20°C ~ +50°C
- Audio I/O: 1 in / 1 out
- Alarm I/O: 1 in / 1 out
- Dimensions: Ø110 × 89 mm
- Weight: 365g
- Housing: Plastic
- Certifications: CE, FCC
- Warranty: 3 Years
