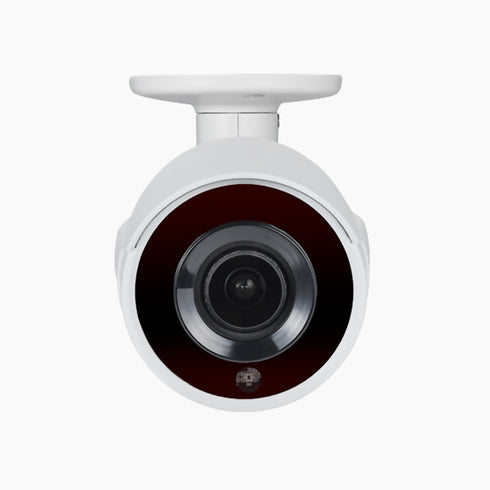

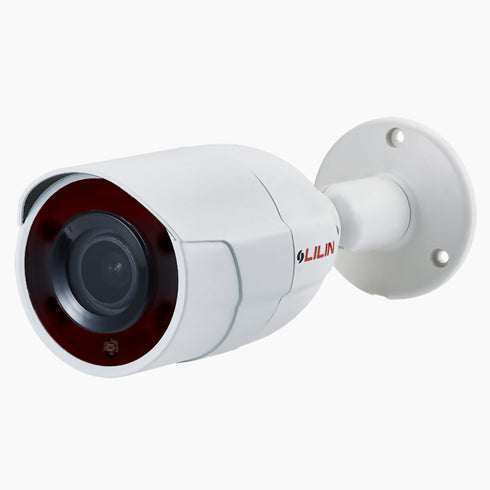

Z5R8922X3 1080P Day & Night Auto Focus IR Bullet IP Camera
The Z5R8922X3 is a high-definition 2MP bullet camera designed for reliable day and night surveillance. It delivers crisp 1080p video with H.265 compression and features a motorized zoom lens for flexible viewing angles. With advanced image enhancements such as 3D noise reduction and digital wide dynamic range, it ensures clear footage in diverse lighting. The camera includes infrared LEDs with up to 35 meters range and supports PoE for easy installation. Its weatherproof IP68 and vandal-resistant IK10 housing make it ideal for outdoor and industrial environments.
- 2MP Full HD resolution with H.265 video compression
- Motorized 2.8–12mm zoom lens with auto focus
- Infrared night vision up to 35 meters range
- Durable IP68 and IK10 rated housing
- Supports PoE power and ONVIF Profile S
Equipped with a Full HD 2MP CMOS image sensor (1920×1080) for sharp and clear video surveillance.
Utilizes H.265/HEVC and H.264 high-efficiency video compression for optimized storage and bandwidth usage.
Features a motorized zoom and auto-focus lens (2.8–12mm) to quickly adapt to varying monitoring needs.
Supports 3D Noise Reduction (MCTF) and advanced 2D/DWDR (up to 100dB) for improved image clarity in diverse lighting conditions.
Infrared LEDs provide night vision capabilities up to 35 meters with IR cut filter for true Day & Night performance.
Robust weatherproof (IP68) and vandal-resistant (IK10) housing for reliable outdoor use in harsh environments.
Integrated alarm I/O (1 input / 1 output) allows for external device connectivity and event-based triggers.
ONVIF Profile S compliant, ensuring seamless integration with third-party surveillance systems.
Supports SD card recording up to 128GB (card not included) for flexible local video storage options.
Wide angle of view from 104° to 37° (horizontal), accommodating broad monitoring coverage areas.
Low-light performance down to 0.01 Lux (color), 0.001 Lux (B/W), and 0 Lux with IR illumination.
Offers multiple resolution settings (2MP, 1.3MP, 1MP, D1, VGA, CIF) with up to 30FPS at 1080p.
Operates in extreme temperatures ranging from -30°C to +50°C, ideal for various climates.
Powered via DC12V or PoE with a maximum power consumption of 10W.
Backed by CE and FCC certifications and includes a 2-year manufacturer warranty.
| MODEL NAME | Z5R8922X3 1080P Day & Night Auto Focus IR Bullet IP Camera |
| PRODUCT TYPE | IP Bullet Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.7" 2MP CMOS (1920×1080) |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| LENS | 2.8–12mm motorized, F1.8–F3.3 |
| FOCUS | Auto Focus |
| ZOOM | Motorized Zoom |
| ANGLE OF VIEW | 104°–37° (H), 55°–20° (V), 126°–42° (D) |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR) |
| IR DISTANCE | 35m (850nm) |
| DAY & NIGHT | IR cut removable |
| WDR | 2D WDR, DWDR up to 100dB |
| 3D NOISE REDUCTION | Yes (MCTF) |
| RESOLUTION OPTIONS | 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | 30FPS @ 1080p (60Hz) / 25FPS @ 1080p (50Hz) |
| ALARM I/O | 1 input / 1 output |
| ONVIF SUPPORT | Profile S |
| WEATHERPROOF RATING | IP68 |
| VANDAL RESISTANCE | IK10 |
| SD CARD SUPPORT | Up to 128GB (card not included) |
| OPERATING TEMPERATURE | -30°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 10W |
| DIMENSIONS | 75 × 75 × 206 mm |
| WEIGHT | 575g |
| CERTIFICATIONS | CE, FCC |
| WARRANTY | 2 Years |
Z5R8922X3 1080P Day & Night Auto Focus IR Bullet IP Camera from LILIN offers robust surveillance capabilities with advanced imaging features, making it ideal for commercial and industrial security installations. Featuring a Full HD 2MP CMOS sensor and motorized zoom with autofocus, this camera captures high-resolution footage day and night, even in complete darkness thanks to its integrated IR LEDs with a 35-meter range.
Advanced Surveillance Technology
Designed for optimal video performance, the Z5R8922X3 includes H.265/HEVC compression for efficient video storage, 3D Noise Reduction, and Wide Dynamic Range (DWDR) up to 100dB for clear imaging in diverse lighting conditions. The day/night IR cut filter ensures seamless switching between lighting environments, while the camera's rugged IP68 weatherproof and IK10 vandal-resistant housing provides reliable operation in harsh environments.
- 2MP Full HD CMOS sensor (1920x1080)
- H.265/HEVC & H.264 compression formats
- Motorized zoom lens (2.8–12mm) with auto focus
- IR illumination up to 35 meters
- 3D Noise Reduction, 2D WDR, DWDR (100dB)
- IR Cut Removable filter for day/night functionality
- 1 alarm input / 1 alarm output
- ONVIF Profile S compliant
- IP68-rated weatherproof, IK10 vandal resistant
- SD card slot supports up to 128GB (card not included)
Flexible Installation and Integration
With support for both DC12V and PoE power options, the Z5R8922X3 is suitable for flexible deployment scenarios. It supports multiple resolutions and frame rates, ensuring smooth video playback, and integrates seamlessly with ONVIF-compliant systems. Built for reliability in extreme temperatures, this camera is a trusted solution for outdoor and indoor monitoring applications.
- Supports 2MP / 1.3MP / 1MP / D1 / VGA / CIF resolutions
- 30FPS @ 1080p (60Hz) / 25FPS @ 1080p (50Hz)
- Power: DC12V / PoE (Max 10W)
- Operating Temperature: -30°C ~ +50°C
- Dimensions: 75 x 75 x 206 mm
- Weight: 575g
- Certifications: CE, FCC
- Warranty: 2 Years
Professionals in need of durable, high-resolution IP bullet cameras will appreciate the performance and dependability of the Z5R8922X3 from LILIN. Ideal for use in commercial properties, critical infrastructure, and high-security outdoor environments.
