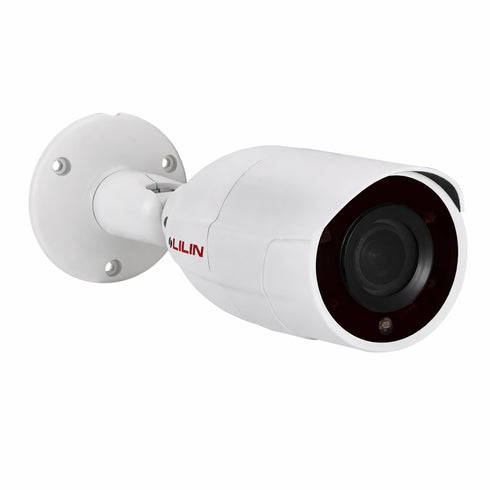

Z5R8852X 5MP Day Night Auto Focus IR IP Bullet Camera (Copy)
The Z5R8852X 5MP bullet camera delivers high-resolution surveillance with advanced imaging and reliable performance in demanding environments. Equipped with a motorized zoom lens and auto focus, it ensures precise coverage and clarity. Enhanced low-light capability and infrared illumination provide clear visibility up to 35 meters in complete darkness. Built with durable housing, it supports IP67 weather resistance and IK10 vandal protection, making it suitable for outdoor and high-risk installations. Flexible streaming, multiple resolutions, and ONVIF compatibility ensure seamless integration into modern security systems.
- 5MP CMOS sensor delivers sharp high resolution video
- Motorized 2.8 to 8 mm lens with auto focus
- Infrared night vision up to 35 meters distance
- IP67 weatherproof and IK10 vandal resistant design
- Supports H265 H264 dual streaming and ONVIF Profile S
You Save: $1,090.99 (91%)
Delivers high-quality imaging with a 5 megapixel CMOS sensor, providing sharp and detailed surveillance footage for enhanced monitoring. :contentReference[oaicite:0]{index=0}
Supports advanced H.265/HEVC and H.264/AVC compression, reducing bandwidth and storage requirements while maintaining excellent video quality. :contentReference[oaicite:1]{index=1}
Enables simultaneous dual streaming in H.265 and H.264 formats, allowing flexible integration with various network and recording systems. :contentReference[oaicite:2]{index=2}
Features a motorized lens with auto focus and zoom control, simplifying installation and enabling precise remote adjustments. :contentReference[oaicite:3]{index=3}
Incorporates 3D noise reduction (MCTF) technology to minimize image noise and improve clarity in low-light conditions. :contentReference[oaicite:4]{index=4}
Equipped with 2D WDR and DWDR up to 100dB, ensuring balanced exposure and clear visibility in high-contrast lighting environments. :contentReference[oaicite:5]{index=5}
Provides powerful IR illumination with up to 35 meters range, enabling reliable night surveillance even in complete darkness. :contentReference[oaicite:6]{index=6}
Includes true Day & Night functionality with IR cut filter, delivering accurate color images during the day and enhanced sensitivity at night. :contentReference[oaicite:7]{index=7}
Built with IP67-rated housing for excellent protection against dust and water, making it suitable for harsh outdoor environments. :contentReference[oaicite:8]{index=8}
Offers IK10-rated vandal resistance, ensuring durability and protection against physical impacts in high-risk areas. :contentReference[oaicite:9]{index=9}
Supports ONVIF Profile S compatibility, allowing seamless integration with a wide range of third-party video management systems. :contentReference[oaicite:10]{index=10}
Features digital input and output interfaces for alarm integration, enabling responsive security event handling. :contentReference[oaicite:11]{index=11}
Allows flexible power options with DC12V and PoE support, simplifying installation and reducing cabling requirements. :contentReference[oaicite:12]{index=12}
Includes microSD card support up to 128GB for onboard storage, enabling local recording and backup without additional devices.
| MODEL NAME | Z5R8852X 5MP Day & Night Auto Focus IR IP Bullet Camera |
| IMAGE SENSOR | 1/2.7" CMOS image sensor |
| MAX RESOLUTION | 5MP (2592 × 1920) |
| EFFECTIVE PIXELS | 2608(H) × 1960(V) = 5,111,680 pixels |
| VIDEO COMPRESSION | H.265/HEVC, H.264/AVC, Motion JPEG |
| VIDEO STREAMING | RTSP/UDP, RTSP/TCP, dual stream support |
| MAX FRAME RATE | 20 fps @ 2592 × 1920 |
| BITRATE | 128 Kbps – 8192 Kbps (VBR/CBR) |
| LENS TYPE | Motorized zoom / focus lens |
| FOCAL LENGTH | 2.8 – 8 mm |
| APERTURE | F1.6 |
| ANGLE OF VIEW (H) | 97.2° (Wide) – 52.5° (Tele) |
| ANGLE OF VIEW (V) | 70.6° (Wide) – 34.1° (Tele) |
| ANGLE OF VIEW (D) | 127.5° (Wide) – 65.5° (Tele) |
| MIN ILLUMINATION (COLOR) | 0.04 Lux @ F1.6 |
| MIN ILLUMINATION (B/W) | 0.006 Lux @ F1.6 |
| IR MODE | 0 Lux with IR ON |
| IR DISTANCE | Up to 35 meters |
| IR WAVELENGTH | 850 nm |
| DAY/NIGHT | IR cut removable |
| WDR | 2D WDR / DWDR up to 100dB |
| HDR | Up to 70dB |
| NOISE REDUCTION | 3D DNR (MCTF) / 2D selectable |
| SHUTTER SPEED | 1/30 – 1/20000 sec |
| GAIN CONTROL | 36 dB variable |
| S/N RATIO | > 48dB |
| WHITE BALANCE | Auto / Manual |
| SENSE-UP | Off / x2 / x4 / Sense Up+ |
| FOCUS CONTROL | One push auto focus |
| IMAGE SETTINGS | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| PRIVACY MASK | 4 configurable zones |
| NETWORK INTERFACE | RJ-45 10/100 Mbps |
| PROTOCOLS | IPv4, TCP, UDP, HTTP, HTTPS, FTP, RTSP, ONVIF, etc. |
| ONVIF SUPPORT | Profile S |
| SECURITY | HTTP Digest, RTSP authentication, HTTPS |
| ENCRYPTION | Base64 / HTTP encryption |
| USER ACCESS | Multiple levels with password protection |
| SIMULTANEOUS USERS | Up to 7 users |
| STORAGE | Micro SD up to 128GB (not included) |
| EVENT TRIGGERS | Motion, Alarm, Network loss, Metadata |
| EVENT ACTIONS | FTP, SMTP, HTTP POST, SD card, Alarm output |
| DIGITAL I/O | 1 input / 1 output |
| ALARM INPUT | TTL +3 – 5VDC |
| ALARM OUTPUT | MOS relay (40VDC / 300mA max) |
| MOBILE SUPPORT | LILIN Pro (iOS / Android) |
| VMS SUPPORT | LILIN Navigator / Third-party VMS |
| OPERATING SYSTEM | Windows 7 or above |
| CPU REQUIREMENT | Intel Core i7 or higher |
| RAM REQUIREMENT | 8GB or more |
| BROWSER SUPPORT | Internet Explorer 9+, Edge (IE mode) |
| POWER SUPPLY | DC12V ±10% / PoE (IEEE 802.3af) |
| POWER CONSUMPTION | 7.5W (DC12V) / 10W (PoE) |
| OPERATING TEMPERATURE | -30°C to +50°C |
| STORAGE TEMPERATURE | -25°C to +60°C |
| OPERATING HUMIDITY | 0% – 90% RH |
| INGRESS PROTECTION | IP67 |
| VANDAL RESISTANCE | IK10 |
| CERTIFICATIONS | CE, FCC (Class A) |
| DIMENSIONS | Ø75 × 189 mm |
| WEIGHT | 575 g |
| GLASS TYPE | Heat resistant glass Ø61 |
| LIGHT SENSOR | Yes |
| SCANNING SYSTEM | Progressive scan |
| LANGUAGES | Multi-language support |
| FIRMWARE UPDATE | HTTP / IP Scan |
Z5R8852X 5MP Day & Night Auto Focus IR IP Bullet Camera from Alfa Iris delivers high-resolution surveillance performance with advanced imaging, intelligent video compression, and rugged outdoor durability. Equipped with a 5MP CMOS sensor and supporting H.265/HEVC and H.264 compression, this camera ensures crystal-clear video while optimizing bandwidth and storage efficiency. Its motorized auto-focus zoom lens (2.8–8mm) allows flexible field-of-view adjustment, making it ideal for a wide range of security applications.
Advanced Imaging and Night Performance
Designed for reliable day and night monitoring, the Z5R8852X features IR illumination up to 35 meters and ultra-low light sensitivity for superior visibility in dark environments. With DWDR up to 100dB, 3D noise reduction, and automatic IR cut filter, the camera delivers balanced, sharp images even in challenging lighting conditions.
- 5MP resolution (2592 × 1920) at up to 20fps
- Motorized zoom and one-push auto focus
- Infrared range up to 35 meters for night surveillance
- DWDR (up to 100dB) and 3D noise reduction
- Excellent low-light performance (0 Lux with IR on)
Built for Outdoor Reliability
Engineered for demanding environments, this camera features an IP67-rated weatherproof housing and IK10 vandal-resistant protection. It operates in extreme temperatures and provides stable performance in rain, dust, and harsh outdoor conditions, making it suitable for industrial, commercial, and perimeter security installations.
- IP67-rated for rain and dust resistance
- IK10-rated vandal-resistant design
- Operating temperature: -30°C to +50°C
- Durable metal housing with heat-resistant glass
Flexible Integration and Smart Features
The Z5R8852X supports ONVIF Profile S for seamless integration with third-party VMS platforms and includes multiple streaming options. With built-in event triggers, alarm I/O, and secure network protocols, it is well-suited for professional surveillance systems requiring reliability and scalability.
- Dual streaming (H.265 / H.264 / MJPEG)
- ONVIF Profile S compatible
- Digital I/O: 1 input / 1 output
- Supports up to 7 simultaneous users
- MicroSD card support up to 128GB for local recording
Versatile Applications
This camera is ideal for a wide range of security applications, including commercial buildings, warehouses, parking areas, gated facilities, and outdoor perimeters. Its combination of high resolution, intelligent features, and rugged construction makes it a dependable choice for professional CCTV deployments.
- Commercial and industrial surveillance
- Outdoor perimeter security
- Parking lots and access points
- Warehouses and logistics facilities
Security professionals seeking a high-performance 5MP IP bullet camera will find the Z5R8852X from Alfa Iris to be a reliable and feature-rich solution for modern surveillance systems.
Technical Specifications
- Model: Z5R8852X
- Image Sensor: 1/2.7" 5MP CMOS
- Resolution: Up to 2592 × 1920 @ 20fps
- Lens: 2.8 – 8 mm motorized zoom, F1.6
- IR Distance: Up to 35 meters (850nm)
- Minimum Illumination: 0.04 Lux (Color), 0 Lux with IR
- Video Compression: H.265 / H.264 / MJPEG
- WDR: DWDR up to 100dB
- Storage: MicroSD (up to 128GB)
- Power Supply: DC12V ±10% / PoE (IEEE 802.3af)
- Power Consumption: 7.5W (DC12V), 10W (PoE)
- Ingress Protection: IP67
- Vandal Resistance: IK10
- Operating Temperature: -30°C to +50°C
- Network Interface: RJ-45 (10/100 Mbps)
