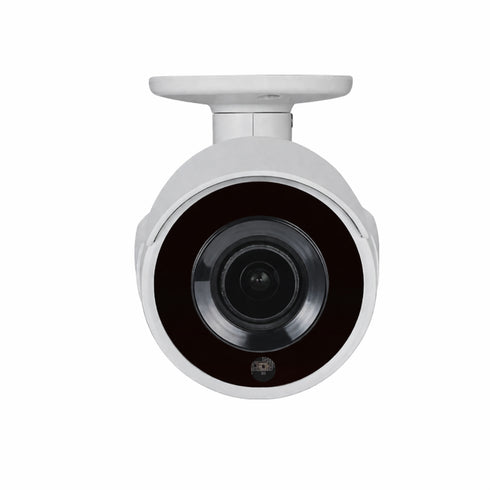

Z5R8922X3 1080P Auto Focus IR Bullet IP Camera
Delivering reliable full HD surveillance, this 2MP bullet IP camera features advanced video compression, motorized zoom and auto focus, and strong low light performance. Built for demanding environments, it includes infrared illumination up to 35 meters, wide dynamic range, and intelligent noise reduction for clear imaging day and night. Its durable housing ensures resistance against weather and vandalism, while flexible streaming and storage options support efficient monitoring across various security applications. :contentReference[oaicite:0]{index=0}
- Full HD 1080P resolution with efficient H265 and H264 compression
- Motorized 2.8 to 12 mm lens with auto focus capability
- Infrared night vision up to 35 meters distance
- Rugged IP67 rated housing with IK10 vandal resistance
- Supports ONVIF Profile S and multiple video streams
Delivers Full HD 1080P resolution using a high-performance 2MP CMOS image sensor for clear and detailed video surveillance.
Supports advanced H.265/HEVC and H.264/AVC compression technologies, optimizing bandwidth and storage efficiency without compromising image quality.
Enables simultaneous dual streaming in H.265 and H.264 formats, providing flexible integration with various network systems.
Equipped with a motorized lens featuring auto focus and zoom (2.8–12mm), allowing precise remote adjustment for optimal field of view.
Incorporates 3D noise reduction (MCTF) and 2D WDR technologies to enhance image clarity in low-light and high-contrast environments.
Features DWDR capability up to 100dB, improving visibility in scenes with uneven lighting conditions.
Provides powerful infrared illumination with up to 35 meters range, ensuring reliable night-time monitoring.
Designed with true Day & Night functionality and IR cut filter for accurate color reproduction during the day and clear monochrome images at night.
Built with a rugged IP67-rated aluminum housing and IK10 vandal resistance, making it suitable for harsh outdoor environments.
Supports ONVIF Profile S for seamless compatibility with third-party video management systems.
Includes digital input and output interfaces for integration with external alarm and automation systems.
Offers flexible power options with DC12V and PoE (IEEE 802.3af), simplifying installation and deployment.
| MODEL NAME | Z5R8922X3 |
| PRODUCT TYPE | 1080P Day & Night Auto Focus IR Bullet IP Camera |
| IMAGE SENSOR | 1/2.7" CMOS image sensor |
| EFFECTIVE PIXELS | 1932(H) × 1092(V) = 2,109,744 pixels |
| MAX RESOLUTION | 1920 × 1080 (Full HD) |
| VIDEO COMPRESSION | H.265/HEVC, H.264/AVC, Motion JPEG |
| STREAMING | Simultaneous H.265 and H.264 streams |
| NUMBER OF STREAMS | 3 streams |
| FRAME RATE | 30 fps @ 1080p (60Hz), 25 fps @ 1080p (50Hz) |
| VIDEO BITRATE | 128 Kbps – 8192 Kbps (VBR / CBR supported) |
| LENS TYPE | Motorized zoom / focus lens |
| FOCAL LENGTH | 2.8 – 12 mm |
| IRIS | F1.8 (Wide) – F3.3 (Tele) |
| IRIS CONTROL | Fixed IRIS |
| ANGLE OF VIEW (H) | 104.0° – 36.6° |
| ANGLE OF VIEW (V) | 54.7° – 20.4° |
| ANGLE OF VIEW (D) | 126.1° – 41.7° |
| MIN ILLUMINATION (COLOR) | 0.01 Lux @ F1.8 |
| MIN ILLUMINATION (B/W) | 0.001 Lux @ F1.8 |
| MIN ILLUMINATION (IR ON) | 0 Lux |
| DAY & NIGHT | IR cut removable |
| IR LED | High efficiency IR LED |
| IR DISTANCE | Up to 35 meters |
| IR WAVELENGTH | 850 nm |
| BEAM SPREAD | 60° |
| WDR | 2D WDR and DWDR up to 100 dB |
| HDR | Up to 70 dB |
| 3D NOISE REDUCTION | Selectable (1–32 levels) |
| WHITE BALANCE | Auto / Manual |
| SHUTTER SPEED | 1/30 – 1/20000 sec |
| SENSE-UP | Off / x2 / x4 |
| AUTO GAIN CONTROL | 42 dB variable gain |
| S/N RATIO | > 48 dB |
| IMAGE SETTINGS | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| PRIVACY MASKING | 4 configurable zones |
| AUTO FOCUS | One push auto focus |
| NETWORK INTERFACE | RJ-45, 10/100 Mbps Ethernet |
| PROTOCOLS | IPv4, TCP, UDP, HTTP, HTTPS, FTP, RTSP, ONVIF, SSL/TLS |
| ONVIF SUPPORT | Profile S |
| VIDEO STREAMING | RTSP/UDP, RTSP/TCP |
| SECURITY | HTTP encryption, RTSP authentication, HTTPS DDNS |
| USER ACCESS | Up to 7 simultaneous users |
| STORAGE | Micro SD card up to 128GB |
| NETWORK STORAGE | NAS (SAMBA/CIFS) |
| ALARM INPUT/OUTPUT | 1 input / 1 output |
| EVENT TRIGGERS | Motion, alarm, network loss, metadata |
| EVENT ACTIONS | FTP, SMTP, HTTP POST, SD, SAMBA |
| POWER SUPPLY | DC12V ±10% / PoE (IEEE 802.3af) |
| POWER CONSUMPTION | 7.7W (DC12V), 10W (PoE) |
| OPERATING TEMPERATURE | -30°C to +50°C |
| STARTING TEMPERATURE | -10°C to +50°C |
| STORAGE TEMPERATURE | -25°C to +60°C |
| OPERATING HUMIDITY | 0% – 90% RH |
| WEATHER PROTECTION | IP67 rated |
| VANDAL RESISTANCE | IK10 rated |
| CASING MATERIAL | Aluminum alloy |
| DIMENSIONS | 75 × 75 × 206 mm |
| WEIGHT | 575 g |
| GLASS | Heat resistant glass Ø61 |
| CPU | ARM Cortex-A7 800MHz |
| MEMORY | 128MB DDR3 RAM, 128MB Flash |
| OPERATING SYSTEM | Embedded Linux 3.10 |
| MOBILE SUPPORT | iOS & Android (LILIN Pro app) |
| BROWSER SUPPORT | Internet Explorer 9+, Edge (IE mode) |
| LANGUAGES | Multi-language support |
| FIRMWARE UPDATE | Via HTTP and IP scan |
| LOG FUNCTIONS | System, network, alarm, storage logs |
| CERTIFICATIONS | CE, FCC (Class A) |
| WARRANTY | 2 Years |
Z5R8922X3 1080P Day & Night Auto Focus IR Bullet IP Camera from Alfa Iris delivers reliable Full HD surveillance with advanced imaging and rugged outdoor performance. Featuring a 2MP CMOS sensor and support for H.265/HEVC and H.264 compression, this camera ensures high-quality video with efficient bandwidth usage. Its motorized zoom and auto focus lens (2.8–12mm) allows flexible viewing angles, making it ideal for a wide range of security applications.
Advanced Imaging and Night Performance
The Z5R8922X3 is engineered for superior image clarity in both day and night conditions. With IR LEDs reaching up to 35 meters, 3D noise reduction, and DWDR up to 100dB, it delivers clear and balanced images even in low-light or high-contrast environments. The automatic IR cut filter ensures seamless transition between color and monochrome modes.
- Full HD 1080P resolution (1920 × 1080)
- Motorized zoom lens (2.8 – 12mm) with auto focus
- Infrared night vision up to 35 meters
- 3D noise reduction and 2D/ DWDR imaging enhancement
- Day & Night functionality with IR cut filter
Durable Design for Outdoor Security
Built with a robust IP67-rated aluminum housing and IK10 vandal resistance, this bullet camera is designed to withstand harsh weather and physical impact. It operates reliably in extreme temperatures, making it suitable for demanding outdoor environments such as commercial properties, parking areas, and industrial sites.
- IP67 weatherproof and dust-resistant design
- IK10-rated vandal-resistant casing
- Operating temperature: -30°C to +50°C
- Aluminum alloy construction with heat-resistant glass
Smart Integration and Network Features
The camera supports ONVIF Profile S for seamless integration with third-party video management systems. With triple streaming capability, multiple user access, and support for mobile viewing via the LILIN app, it provides flexible monitoring options. Built-in alarm I/O and event triggers enhance system responsiveness and automation.
- Triple streaming (H.265 / H.264 / MJPEG)
- ONVIF Profile S compatibility
- Supports up to 7 simultaneous users
- Alarm input/output with event triggers and actions
- Remote access via mobile app and web browser
Versatile Installation and Power Options
Designed for easy deployment, the Z5R8922X3 supports both DC12V and PoE (IEEE 802.3af) power options. Its flexible mounting and adjustable viewing angles make it suitable for various installations, including entrances, perimeters, and surveillance zones.
- Power input: DC12V or PoE
- Wide viewing angle: up to 104° (wide)
- Supports MicroSD storage up to 128GB
- Compact bullet design for discreet installation
The Z5R8922X3 IP Camera from Alfa Iris is an excellent choice for professionals seeking high-performance outdoor surveillance with advanced imaging, durability, and seamless system integration. Ideal for commercial, industrial, and residential security applications. :contentReference[oaicite:0]{index=0}
Technical Specifications
- Model: Z5R8922X3
- Image Sensor: 1/2.7" CMOS, 2MP
- Resolution: Up to 1920 × 1080 @ 30fps
- Lens: 2.8 – 12 mm motorized zoom
- Minimum Illumination: 0.01 Lux (Color), 0 Lux with IR
- IR Distance: Up to 35 meters
- Video Compression: H.265 / H.264 / MJPEG
- Streaming: Triple stream support
- Power Supply: DC12V / PoE
- Power Consumption: 7.7W (DC), 10W (PoE)
- Ingress Protection: IP67
- Vandal Rating: IK10
- Operating Temperature: -30°C to +50°C
- Storage: MicroSD up to 128GB
- Network Interface: RJ-45, 10/100 Mbps
