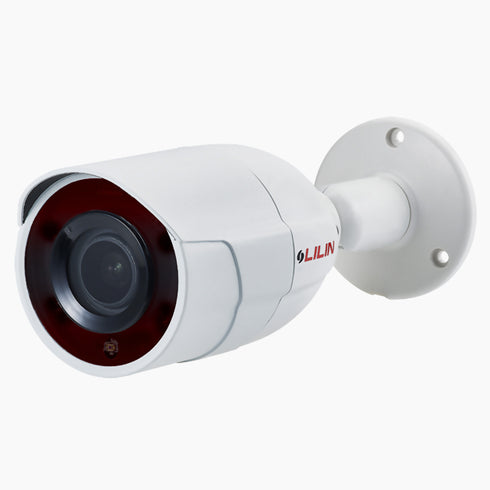

Z2R8852AX 5MP Day & Night Auto Focus IR Bullet IP Camera
The Z2R8852AX is a 5-megapixel IP bullet camera designed for reliable day and night surveillance. It features a motorized zoom lens with autofocus, offering flexible viewing angles and crystal-clear imaging. With Smart IR technology reaching up to 35 meters, it ensures visibility in complete darkness. The camera supports advanced H.265 compression, 3D noise reduction, and HDR up to 120dB for enhanced clarity in challenging lighting conditions. It is weatherproof and vandal-resistant, making it ideal for outdoor security installations in commercial and industrial environments.
- 5MP high-definition CMOS image sensor
- Motorized zoom lens with autofocus 2.8–8mm
- Smart IR illumination up to 35 meters
- Supports H.265 and H.264 compression formats
- Weatherproof IP67 and vandal-resistant IK10 housing
Captures ultra-clear images with a 5MP CMOS sensor (2592×1944) for high-resolution surveillance.
Supports H.265/HEVC and H.264 video compression for efficient storage and bandwidth optimization.
Features a motorized zoom and auto-focus 2.8–8mm lens, allowing flexible installation and focus control.
Smart H.264/H.265 functionality improves video efficiency and streaming quality.
Equipped with 3D Noise Reduction (MCTF), 2D Wide Dynamic Range (WDR), and HDR up to 120dB for excellent image clarity in varying light conditions.
Supports Digital PTZ and intelligent video surveillance (IVS) with advanced smart event detection.
Detects tampering, audio anomalies, motion, alarm triggers, and network loss to enhance security responsiveness.
Integrated IR LEDs with Smart IR technology deliver clear night vision up to 35 meters.
Day & Night functionality with a removable IR cut filter ensures accurate color reproduction during the day and clear images at night.
Includes two-way audio and 1-in/1-out alarm I/O for interactive monitoring and alarm integration.
Compatible with ONVIF Profiles S, T, and G for seamless interoperability with third-party devices.
Rated IP67 weatherproof and IK10 vandal-resistant for robust outdoor performance.
Operates reliably in extreme temperatures ranging from -40°C to +50°C.
Dual power support with DC12V and PoE, consuming a maximum of 9.2W for flexible installation.
Certified by CE, FCC, and UL standards for quality and compliance assurance.
| MODEL NAME | Z2R8852AX 5MP Day & Night Auto Focus IR Bullet IP Camera |
| PRODUCT TYPE | IP Bullet Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 5MP CMOS, 2616×1964 pixels |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| LENS TYPE | 2.8–8mm motorized, F1.6 |
| FOCUS | Auto Focus |
| ANGLE OF VIEW | 95°–52° (H), 69°–39° (V), 124°–65° (D) |
| SMART VIDEO | Smart H.264/H.265 supported |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| WDR | 2D WDR, HDR up to 120dB |
| DIGITAL ZOOM | Digital PTZ |
| INTELLIGENT VIDEO | IVS, Smart Event |
| DETECTION FEATURES | Tampering / Audio / Alarm / Motion / Network Lost Detection |
| IR ILLUMINATION | IR LEDs with 35m range (850nm, Smart IR) |
| DAY/NIGHT MODE | IR cut removable (Day & Night) |
| AUDIO | Two-way Audio |
| ALARM I/O | 1-in / 1-out |
| ONVIF SUPPORT | Profiles S/T/G supported |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| MINIMUM ILLUMINATION | 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR) |
| MAX IR DISTANCE | 35m |
| SUPPORTED RESOLUTIONS | 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / D1 / VGA / CIF |
| FRAME RATE | Normal – up to 25FPS @ 5MP; HDR – up to 25FPS @ 5MP |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE |
| POWER CONSUMPTION | Max 9.2W |
| DIMENSIONS | 75 × 75 × 189 mm |
| WEIGHT | 575g |
| CERTIFICATIONS | CE, FCC, UL |
Z2R8852AX 5MP Day & Night Auto Focus IR Bullet IP Camera from LILIN is a high-performance surveillance solution designed for comprehensive day and night monitoring. Featuring a 5MP CMOS sensor and motorized zoom lens, it delivers crystal-clear imaging with advanced smart detection capabilities suitable for commercial and industrial environments.
High-Definition Surveillance with Smart Features
The Z2R8852AX supports H.265/HEVC and H.264 compression formats, optimizing bandwidth and storage efficiency without compromising image quality. Integrated 3D Noise Reduction, 2D WDR, and HDR up to 120dB ensure reliable performance in challenging lighting conditions. With Smart IR and IR LEDs reaching up to 35 meters, this camera guarantees visibility in total darkness.
- 5MP CMOS image sensor (2592×1944 resolution)
- Motorized Zoom & Auto Focus Lens (2.8–8mm)
- Smart H.264/H.265 video compression
- HDR up to 120dB with 3DNR and 2D WDR
- IR LEDs with 35m range and Smart IR
- Smart Events: Tampering, Audio, Alarm, Motion, Network Loss Detection
- Digital PTZ, IVS (Intelligent Video Surveillance)
Reliable and Rugged for Outdoor Deployment
Designed for outdoor installations, the camera features a weatherproof IP67 and vandal-resistant IK10 housing. Its robust design supports operation in extreme temperatures from -40°C to +50°C. Supporting two-way audio and ONVIF Profiles S/T/G, it seamlessly integrates with modern surveillance systems.
- Weatherproof IP67 and vandal-resistant IK10 housing
- Operating temperature: -40°C to +50°C
- Two-way audio support
- ONVIF Profiles S/T/G compliant
- Power options: DC12V or PoE (Max 9.2W)
Technical Specifications
- Model: Z2R8852AX
- Min. Illumination: 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR)
- Lens: 2.8–8mm motorized, F1.6
- Angle of View: 95°–52° (H), 69°–39° (V), 124°–65° (D)
- Max IR Distance: 35m
- Sensor: 1/2.8" 5MP CMOS, 2616×1964 pixels
- Video Compression: H.265, H.264, MJPEG
- Resolution: 5MP to CIF
- Frame Rate: Up to 25FPS @ 5MP
- Power: DC12V / PoE, Max 9.2W
- Dimensions: 75 × 75 × 189 mm
- Weight: 575g
- Certifications: CE, FCC, UL
