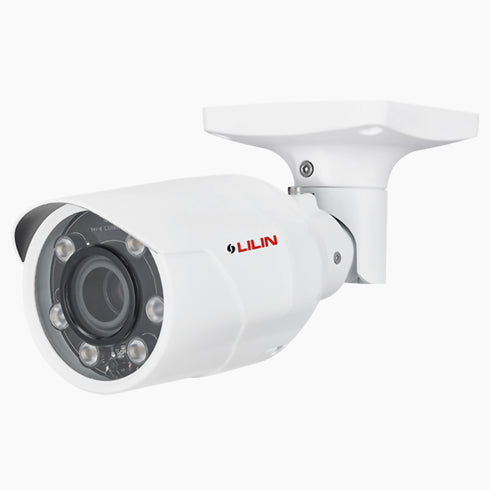

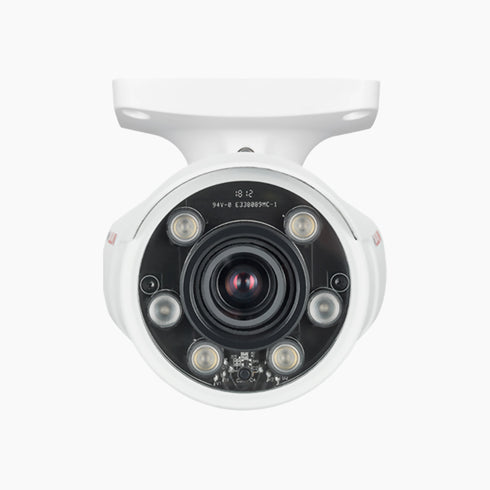

Z2R8152X2-P 5MP Day & Night Auto Focus IR Bullet IP Camera
The Z2R8152X2 P is a high performance 5 megapixel bullet IP camera designed for reliable day and night surveillance. It features a motorized zoom and auto focus lens with P IRIS for precise image control. With advanced video compression, HDR 120dB, and 3D noise reduction, it delivers superior image clarity in various lighting conditions. The camera includes smart detection, digital PTZ, and IR illumination up to 55 meters. Built with an IP68 weatherproof and IK10 vandal resistant housing, it ensures long term durability in harsh environments.
- 5MP CMOS sensor with 2592x1944 resolution at 25FPS
- Motorized zoom 7–22mm lens with auto focus and P IRIS
- HDR 120dB and 3D noise reduction for clear images
- Smart IR LEDs with up to 55 meter night vision
- IP68 and IK10 rated housing for outdoor protection
Captures high-resolution video with a 5MP CMOS sensor, delivering 2592×1944 pixels at up to 25FPS for detailed surveillance footage.
Supports efficient H.265/HEVC and H.264 video compression, reducing bandwidth and storage requirements without compromising quality.
Equipped with a 7–22mm motorized zoom and auto focus lens with P-IRIS, allowing precise control over image clarity and depth of field.
Integrates advanced imaging technologies including 3D Noise Reduction (MCTF), 2D WDR, and HDR 120dB for clear visuals in challenging lighting.
Enables smart surveillance features such as Digital PTZ, Intelligent Video Surveillance (IVS), and various smart event detections.
Includes tampering, audio, alarm, motion, and network loss detection to enhance monitoring and incident awareness.
Delivers powerful infrared night vision with smart IR LEDs covering up to 55 meters for reliable performance in total darkness.
Built with a Day & Night function and removable IR cut filter for optimal image quality in all lighting conditions.
Offers two-way audio support and 1-in / 1-out alarm I/O for interactive monitoring and integration with alarm systems.
Compliant with ONVIF Profiles S/T/G, ensuring seamless interoperability with other IP-based surveillance equipment.
Encased in IP68 weatherproof and IK10 vandal-resistant housing for dependable use in harsh outdoor environments.
Features a cable-managed housing and bracket design to streamline installation and protect cables from environmental damage.
Operates reliably in extreme temperatures ranging from -40°C to +50°C, ideal for various climate conditions.
Certified with CE, FCC, and UL for adherence to international safety and performance standards.
| MODEL NAME | Z2R8152X2-P 5MP Day & Night Auto Focus IR Bullet IP Camera |
| PRODUCT TYPE | IP Bullet Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 5MP CMOS, 2616×1964 pixels |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR) |
| LENS | 7–22mm motorized, F1.8–F2.8, P-IRIS |
| ANGLE OF VIEW | 31°–14° (H), 24°–10° (V), 41°–18° (D) |
| MAX IR DISTANCE | 55m |
| IR TYPE | IR LEDs with Smart IR, 850nm |
| DAY & NIGHT | IR cut removable |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| SMART CODEC | Smart H.264/H.265 supported |
| RESOLUTION OPTIONS | 5MP, 4MP, 3.1MP, 3MP, 2MP, 1.3MP, 1MP, D1, VGA, CIF |
| FRAME RATE | Up to 25FPS @ 2592×1944 |
| 3D NOISE REDUCTION | Yes (MCTF) |
| WDR | 2D WDR, HDR 120dB |
| DIGITAL PTZ | Yes |
| INTELLIGENT VIDEO | IVS, Smart Event |
| DETECTION | Tampering / Audio / Alarm / Motion / Network Lost |
| AUDIO | Two-way Audio |
| ALARM I/O | 1-in / 1-out |
| ONVIF | Profiles S/T/G supported |
| INGRESS PROTECTION | IP68 |
| VANDAL RESISTANCE | IK10 |
| HOUSING | Cable managed housing & bracket |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE+ |
| POWER CONSUMPTION | Max 14.5W |
| DIMENSIONS | 103 × 103 × 258 mm |
| WEIGHT | 1150g |
| CERTIFICATIONS | CE, FCC, UL |
Z2R8152X2-P 5MP Day & Night Auto Focus IR Bullet IP Camera from LILIN delivers advanced video surveillance performance with superior clarity and robust construction. Engineered for both day and night applications, it features a powerful 5MP CMOS sensor and smart IR illumination up to 55 meters, making it ideal for critical outdoor security installations in commercial, industrial, and municipal environments.
Advanced Imaging and Intelligent Monitoring
Equipped with a motorized zoom lens (7–22mm, P-IRIS) and auto focus functionality, the Z2R8152X2-P ensures precise image capture across wide and narrow fields of view. It supports H.265/HEVC and H.264 compression for efficient streaming and storage, along with 3D Noise Reduction, HDR 120dB, and Smart Events like motion, audio, and tampering detection. This bullet camera is built to operate reliably in extreme temperatures and harsh environments, making it suitable for critical surveillance points.
- 5MP CMOS sensor with 2592×1944 resolution up to 25FPS
- H.265/HEVC & H.264 video compression
- Motorized 7–22mm P-IRIS lens with auto focus
- 3D Noise Reduction, HDR (120dB), 2D WDR
- IR LEDs with 55m range and Smart IR (850nm)
- Digital PTZ, IVS, tampering and network loss detection
- ONVIF Profiles S/T/G support
- Two-way audio, alarm I/O (1-in / 1-out)
- Weatherproof IP68 and vandal resistant IK10 rating
- Cable-managed housing and mounting bracket
Flexible Integration and Outdoor Performance
Designed for professional-grade surveillance, the Z2R8152X2-P operates in temperatures ranging from -40°C to +50°C and supports DC12V or PoE+ power sources. With ONVIF compliance and multiple resolution options, it seamlessly integrates into modern IP-based video management systems. Its robust metal housing and compact form factor allow secure installation in high-risk areas while maintaining discreet visibility.
- Remote facilities and critical infrastructure sites
- Transportation hubs and city surveillance
- Commercial perimeters and parking areas
- Warehouses, loading docks, and distribution centers
Security professionals looking for a high-performance, rugged IP camera will appreciate the reliability, image quality, and smart functionality of the Z2R8152X2-P from LILIN. Widely supported by access control and NVR platforms, it's a strong choice for challenging outdoor surveillance needs.
Technical Specifications
- Model: Z2R8152X2-P
- Sensor: 1/2.8" 5MP CMOS, 2616×1964 pixels
- Min. Illumination: 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR)
- Lens: 7–22mm motorized, F1.8–F2.8, P-IRIS
- Angle of View: 31°–14° (H), 24°–10° (V), 41°–18° (D)
- IR Distance: Up to 55 meters
- Video Compression: H.265, H.264, MJPEG
- Resolutions: 5MP to CIF
- Frame Rate: Up to 25FPS @ 2592×1944
- Operating Temperature: -40°C ~ +50°C
- Power Input: DC12V / PoE+, Max 14.5W
- Dimensions: 103 × 103 × 258 mm
- Weight: 1150g
- Certifications: CE, FCC, UL
