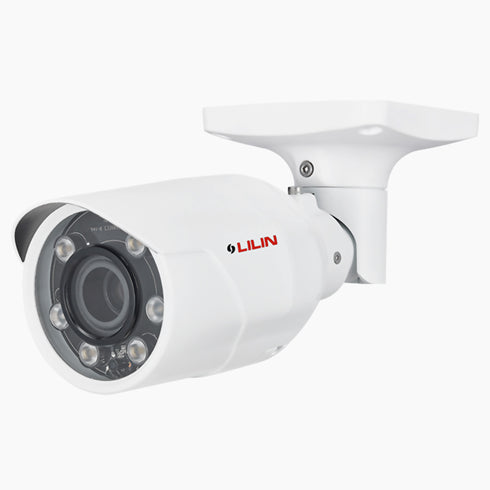

Z2R8152X-P 5MP Day & Night Auto Focus IR Bullet IP Camera
The Z2R8152X-P delivers superior 5MP high-definition imaging with advanced low-light sensitivity for clear visuals day and night. Its motorized zoom lens with P-IRIS control ensures precise focus and flexible viewing angles, while Smart IR extends visibility up to 55 meters. Featuring H.265/H.264 compression, the camera optimizes bandwidth efficiency and storage. Robust weatherproof and vandal-resistant housing ensures reliable performance in harsh outdoor environments, making it ideal for perimeter and industrial surveillance applications.
- 5MP high-resolution CMOS sensor with up to 25FPS performance
- Motorized 2.8–12mm P-IRIS autofocus lens
- Smart IR LEDs provide up to 55m night vision range
- Advanced H.265/H.264 compression for efficient storage
- Weatherproof IP68 and IK10 vandal-resistant design
Captures high-resolution images with a 5MP CMOS sensor (2592×1944) at up to 25FPS for detailed surveillance.
Supports advanced H.265/HEVC and H.264 video compression for efficient bandwidth and storage usage.
Equipped with a motorized zoom and auto focus lens (2.8–12mm, P-IRIS) for flexible and precise viewing angles.
Delivers superior image clarity using Smart H.264/H.265 and 3D Noise Reduction (MCTF) technologies.
Enhances visibility in varied lighting with 2D WDR and HDR support up to 120dB for better dynamic range.
Features built-in Digital PTZ and Intelligent Video Surveillance (IVS) functions for proactive monitoring.
Includes smart detection capabilities such as tampering, audio, alarm, motion, and network loss alerts.
Provides effective night surveillance with Smart IR LEDs covering up to 55 meters.
Ensures 24/7 performance with day & night functionality and a removable IR cut filter.
Offers two-way audio communication and 1-in/1-out alarm I/O for integrated security responses.
Compatible with ONVIF Profiles S, T, and G for seamless integration with third-party systems.
Engineered with IP68 weatherproof and IK10 vandal-resistant ratings for reliable outdoor deployment.
Incorporates cable-managed housing and bracket design for secure and tidy installations.
Operates effectively in extreme temperatures from -40°C to +50°C, ideal for diverse environments.
Certified with CE, FCC, and UL standards for quality assurance and regulatory compliance.
| MODEL NAME | Z2R8152X-P 5MP Day & Night Auto Focus IR Bullet IP Camera |
| PRODUCT TYPE | IP Bullet Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 5MP CMOS, 2616×1964 pixels |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| LENS | 2.8–12mm motorized, F1.4–F2.8, P-IRIS |
| FOCUS TYPE | Motorized Zoom & Auto Focus |
| ANGLE OF VIEW | 87°–30° (H), 62°–23° (V), 114°–37° (D) |
| RESOLUTION | 5MP, 4MP, 3.1MP, 3MP, 2MP, 1.3MP, 1MP, D1, VGA, CIF |
| FRAME RATE | Up to 25FPS @ 2592×1944 |
| DAY & NIGHT | IR cut removable |
| MIN. ILLUMINATION | 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR) |
| IR DISTANCE | 55m (850nm, Smart IR) |
| WDR | HDR up to 120dB, 2D WDR |
| NOISE REDUCTION | 3D Noise Reduction (MCTF) |
| DIGITAL FEATURES | Digital PTZ, IVS, Smart Event |
| DETECTION | Tampering / Audio / Alarm / Motion / Network Lost Detection |
| AUDIO | Two-way Audio |
| ALARM I/O | 1-in / 1-out |
| NETWORK | ONVIF Profiles S/T/G supported |
| PROTECTION | IP68 Weatherproof, IK10 Vandal Resistant |
| CONSTRUCTION | Cable managed housing & bracket |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE+, Max 14.5W |
| DIMENSIONS | 103 × 103 × 258 mm |
| WEIGHT | 1120g |
| CERTIFICATIONS | CE, FCC, UL |
Z2R8152X-P 5MP Day & Night Auto Focus IR Bullet IP Camera from LILIN offers exceptional surveillance performance with cutting-edge imaging technology and advanced video compression. Engineered for versatile deployment in demanding environments, this IP bullet camera ensures detailed monitoring both day and night with a 5MP CMOS sensor and intelligent IR illumination reaching up to 55 meters.
Advanced Surveillance Features
Equipped with a motorized zoom and auto focus lens (2.8–12mm, P-IRIS), the Z2R8152X-P delivers flexibility in field of view and sharpness across lighting conditions. Its support for H.265/HEVC and H.264 compression standards enables efficient video storage without sacrificing quality. Smart features like digital PTZ, smart events, tampering and motion detection, and IVS (Intelligent Video Surveillance) expand its application across commercial and industrial settings.
- 5MP CMOS image sensor (2592×1944) up to 25FPS
- H.265/HEVC & H.264 video compression
- Motorized Zoom & Auto Focus Lens (2.8–12mm, P-IRIS)
- Smart H.264/H.265 supported
- 3D Noise Reduction (MCTF), 2D WDR, HDR up to 120dB
- Digital PTZ, IVS, Smart Event
- Tampering / Audio / Alarm / Motion / Network Lost Detection
- IR LEDs with 55m range (850nm, Smart IR)
- Day & Night functionality with removable IR cut filter
- Two-way Audio, 1-in / 1-out Alarm I/O
- ONVIF Profiles S/T/G supported
- IP68 weatherproof and IK10 vandal resistant housing
- Cable managed housing and bracket for clean installation
Reliable Design and Broad Compatibility
With robust construction and intelligent features, the Z2R8152X-P ensures optimal performance in diverse conditions. Its wide operating temperature range and dual power options (DC12V / PoE+) make it ideal for installations where reliability and flexibility are essential. Compatible with industry-standard ONVIF profiles, this camera integrates seamlessly with various surveillance systems.
- Operating Temperature: -40°C ~ +50°C
- Power: DC12V / PoE+, Max 14.5W
- Dimensions: 103 × 103 × 258 mm
- Weight: 1120g
- Certifications: CE, FCC, UL
Technical Specifications
- Model: Z2R8152X-P
- Sensor: 1/2.8" 5MP CMOS, 2616×1964 pixels
- Min. Illumination: 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR)
- Lens: 2.8–12mm motorized, F1.4–F2.8, P-IRIS
- Angle of View: 87°–30° (H), 62°–23° (V), 114°–37° (D)
- Max IR Distance: 55m
- Resolution Options: 5MP, 4MP, 3.1MP, 3MP, 2MP, 1.3MP, 1MP, D1, VGA, CIF
- Frame Rate: Up to 25FPS @ 2592×1944
- Video Compression: H.265, H.264, MJPEG
