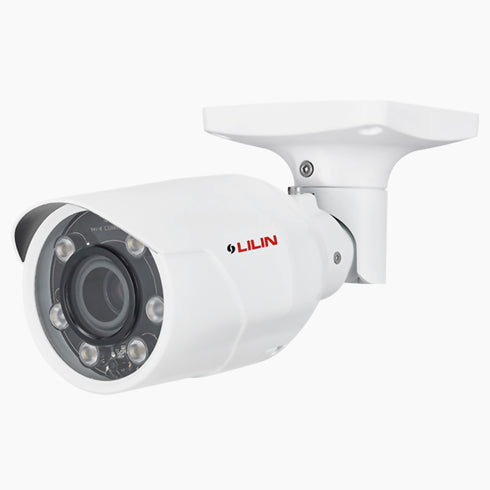

Z2R8122X-P 1080P Day & Night Auto Focus IR Bullet IP Camera
The Z2R8122X-P is a high-performance 1080P IP bullet camera designed for reliable surveillance in any lighting condition. Featuring a 2MP CMOS sensor with up to 60FPS recording, it ensures smooth and detailed video output. Equipped with a motorized zoom P-IRIS lens and 55-meter Smart IR illumination, it delivers exceptional clarity day or night. Built with IP68 weatherproof and IK10 vandal-resistant housing, it offers long-lasting durability for indoor and outdoor use. The camera supports H.265 compression, smart events, and ONVIF profiles for seamless integration with modern security systems.
- 2MP CMOS sensor delivers 1080P video at up to 60FPS
- Motorized zoom P-IRIS lens with auto focus
- Smart IR up to 55m range with day and night function
- Weatherproof IP68 and vandal-resistant IK10 housing
- Supports H.265/H.264 compression and ONVIF integration
Delivers full HD 1080p resolution at up to 60 frames per second using a 2MP CMOS sensor for clear and smooth video capture.
Supports advanced H.265/HEVC and H.264 video compression to optimize bandwidth and storage efficiency.
Features a motorized zoom and auto focus lens (2.8–12mm) with P-IRIS for precise image clarity and flexibility in installation.
Equipped with Smart H.264/H.265 technology for intelligent video streaming and reduced data consumption.
Incorporates 3D Noise Reduction (MCTF), 2D Wide Dynamic Range, and 120dB HDR for superior image quality in varied lighting conditions.
Offers advanced video analytics with Digital PTZ, IVS, and smart event detection such as tampering, motion, and audio triggers.
Infrared LEDs provide night vision up to 55 meters with smart IR for balanced illumination in complete darkness.
Supports day and night functionality with a removable IR cut filter for true color during the day and clear IR images at night.
Includes two-way audio and 1-in/1-out alarm I/O for interactive monitoring and event response capabilities.
Compliant with ONVIF Profiles S, T, and G for seamless integration with third-party systems.
Rated IP68 and IK10 for weatherproof and vandal-resistant performance in harsh outdoor environments.
Designed with a cable-managed housing and bracket to protect connections and simplify installation.
Operates in extreme temperatures from -40°C to +50°C, ideal for diverse climates.
Certified by CE, FCC, and UL, ensuring international compliance and reliability standards.
Power options include DC12V and PoE+ with a maximum power consumption of 14.5W for flexible deployment.
| MODEL NAME | Z2R8122X-P 1080P Day & Night Auto Focus IR Bullet IP Camera |
| PRODUCT TYPE | IP Bullet Camera |
| VENDOR | LILIN |
| IMAGE SENSOR | 1/2.8" 2MP CMOS, 1945×1097 pixels |
| RESOLUTION | 2MP, 1.3MP, 1MP, D1, VGA, CIF |
| FRAME RATE | Up to 60FPS @ 1920×1080 |
| MIN. ILLUMINATION | 0.003 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR) |
| LENS | 2.8–12mm motorized, F1.4–F2.8, P-IRIS |
| ANGLE OF VIEW | 98°–33° (H), 51°–19° (V), 116°–38° (D) |
| MAX IR DISTANCE | 55m |
| IR WAVELENGTH | 850nm, Smart IR |
| DAY & NIGHT | IR cut removable |
| VIDEO COMPRESSION | H.265/HEVC, H.264, MJPEG |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| IMAGE ENHANCEMENT | 3D Noise Reduction (MCTF), 2D WDR, HDR 120dB |
| PTZ | Digital PTZ |
| INTELLIGENT VIDEO | IVS, Smart Event |
| DETECTION | Tampering, Audio, Alarm, Motion, Network Lost Detection |
| AUDIO | Two-way Audio |
| ALARM I/O | 1-in / 1-out |
| ONVIF SUPPORT | Profiles S/T/G |
| WEATHERPROOF RATING | IP68 |
| VANDAL RESISTANCE | IK10 |
| HOUSING | Cable managed housing & bracket |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE+, Max 14.5W |
| DIMENSIONS | 103 × 103 × 258 mm |
| WEIGHT | 1120g |
| CERTIFICATIONS | CE, FCC, UL |
Z2R8122X-P 1080P Day & Night Auto Focus IR Bullet IP Camera from LILIN delivers exceptional performance with its advanced imaging technologies and robust construction. Designed for professional surveillance, it supports 1080P resolution at up to 60FPS with H.265/H.264 compression for efficient video quality in high-motion environments. Ideal for critical monitoring in commercial, industrial, and outdoor settings.
Advanced Surveillance Technology
Equipped with a 2MP CMOS sensor and motorized zoom lens (2.8–12mm, P-IRIS), the Z2R8122X-P captures sharp, high-quality images across various lighting conditions. Features like 3D Noise Reduction, HDR 120dB, and Smart IR enhance image clarity, while Digital PTZ and Smart Events ensure intelligent monitoring. It offers extensive detection capabilities including tampering, audio, motion, and network loss.
- 2MP CMOS sensor, 1920×1080 resolution at up to 60FPS
- H.265/HEVC & H.264 video compression with Smart Codec support
- Motorized zoom & autofocus lens (2.8–12mm, P-IRIS)
- HDR 120dB, 3D Noise Reduction (MCTF), 2D WDR
- Smart Event Detection: Tampering, Audio, Alarm, Motion, Network Loss
- IR range up to 55m with Smart IR (850nm)
- Day & Night capability with removable IR cut filter
- Two-way audio, 1-in / 1-out alarm I/O
- ONVIF Profiles S/T/G supported
- IP68 weatherproof and IK10 vandal-resistant housing
Built for Harsh Environments
The Z2R8122X-P is designed to perform in extreme outdoor conditions. Its IP68-rated weatherproof and IK10 vandal-resistant housing ensures durability against water, dust, and impact. With a wide operating temperature range from -40°C to +50°C, it is ideal for installations requiring continuous operation in tough climates. Integrated cable management further supports clean and secure installations.
- Weatherproof IP68 and vandal resistant IK10 design
- Operating temperature: -40°C ~ +50°C
- Cable managed housing and bracket for clean installations
- Certified with CE, FCC, and UL
Technical Specifications
- Model: Z2R8122X-P
- Sensor: 1/2.8" 2MP CMOS (1945×1097 pixels)
- Minimum Illumination: 0.003 Lux (Color), 0.001 Lux (B/W), 0 Lux (IR)
- Lens: 2.8–12mm motorized, F1.4–F2.8, P-IRIS
- Angle of View: H: 98°–33°, V: 51°–19°, D: 116°–38°
- Video Compression: H.265, H.264, MJPEG
- Resolutions: 2MP, 1.3MP, 1MP, D1, VGA, CIF
- Frame Rate: Up to 60FPS @ 1920×1080
- IR Distance: Up to 55m
- Power: DC12V / PoE+, Max 14.5W
- Dimensions: 103 × 103 × 258 mm
- Weight: 1120g
- Certifications: CE, FCC, UL
