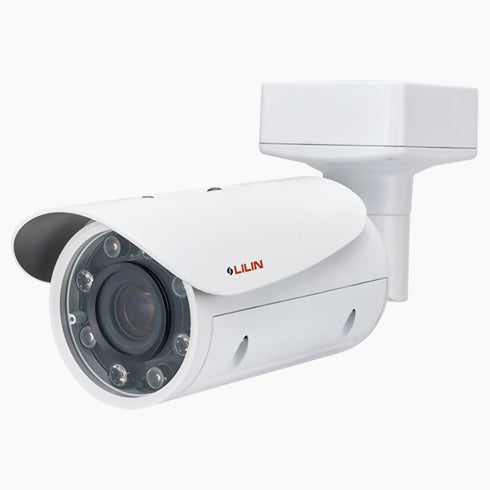

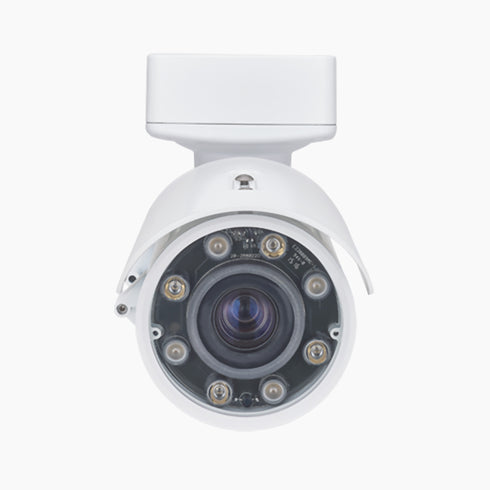

Z2R8022EX25 1080P Day & Night Vari-Focal IR Vandal Resistant Bullet IP Camera
The Z2R8022EX25 is a high-performance IP bullet camera designed for demanding outdoor and industrial environments. It delivers full HD 1080p video at up to 60 frames per second and supports advanced video compression formats for efficient storage and bandwidth use. Featuring a motorized zoom lens, smart IR illumination with a range of 100 meters, and comprehensive event detection capabilities, this camera ensures excellent performance both day and night. Its durable IP67 and IK10-rated housing provides exceptional protection against harsh weather and vandalism, making it ideal for professional security applications.
- Full HD 1080p resolution at 60 frames per second
- Motorized 5.3–130mm lens with auto focus and DC-IRIS
- Smart IR illumination up to 100 meters for night vision
- Advanced event detection and two-way audio support
- IP67 weatherproof and IK10 vandal resistant construction
Delivers crisp Full HD 1080p resolution at an impressive 60 frames per second for high-quality video surveillance.
Supports advanced H.265/HEVC and H.264 video compression for optimized bandwidth and storage usage.
Equipped with a motorized zoom and auto-focus lens (5.3–130mm) for versatile and precise monitoring across varying distances.
Features Smart H.264/H.265 technology for efficient streaming without compromising image quality.
Incorporates 3D Noise Reduction (MCTF) and 2D Wide Dynamic Range (WDR) with 120dB HDR for enhanced clarity in challenging lighting conditions.
Includes digital PTZ, intelligent video surveillance (IVS), and smart event detection capabilities for proactive security monitoring.
Supports multiple detection features including tampering, audio, alarm, motion, and network loss for comprehensive threat awareness.
Infrared LEDs with Smart IR technology provide up to 100m night vision range for reliable 24/7 monitoring.
Day & Night functionality with removable IR cut filter ensures optimal performance in all lighting conditions.
Enables two-way audio communication with built-in audio input/output and supports external alarm I/O and RS-485 connectivity.
ONVIF Profiles S and T compliant, ensuring seamless integration with various third-party systems.
Rugged IP67-rated weatherproof and IK10-rated vandal-resistant housing suitable for harsh outdoor environments.
Operates in extreme temperatures ranging from -40°C to +50°C, maintaining performance in diverse climates.
Compact yet durable design with dimensions of 116 × 112 × 372 mm and a weight of 1900g for flexible installation options.
Certified with CE and FCC for safety, quality, and regulatory compliance across global markets.
| MODEL NAME | Z2R8022EX25 1080P Day & Night Vari-Focal IR Vandal Resistant Bullet IP Camera |
| PRODUCT TYPE | IP Bullet Camera |
| VENDOR | LILIN |
| RESOLUTION | 1920×1080 @ 60 FPS |
| IMAGE SENSOR | 1/2.8" 2MP CMOS, 1945×1097 pixels |
| MIN. ILLUMINATION | 0.02 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR) |
| LENS | 5.3–130mm motorized, F1.6–F4.3, DC-IRIS |
| ANGLE OF VIEW | 58.5°–2.8° (H), 33.2°–1.5° (V), 67.5°–3.2° (D) |
| IR DISTANCE | 100m (850nm, Smart IR) |
| DAY & NIGHT | IR cut removable |
| VIDEO COMPRESSION | H.265, H.264, MJPEG |
| SMART COMPRESSION | Smart H.264/H.265 supported |
| 3D/2D NOISE REDUCTION | 3D Noise Reduction (MCTF), 2D WDR |
| HDR | 120dB |
| DIGITAL PTZ | Supported |
| INTELLIGENT VIDEO ANALYTICS | IVS, Smart Event |
| EVENT DETECTION | Tampering / Audio / Alarm / Motion / Network Lost Detection |
| TWO-WAY AUDIO | Supported |
| AUDIO I/O | 1-in / 1-out |
| ALARM I/O | 1-in / 1-out |
| RS-485 | Supported |
| ONVIF COMPLIANCE | Profiles S/T supported |
| WEATHERPROOF RATING | IP67 |
| VANDAL RESISTANCE | IK10 |
| OPERATING TEMPERATURE | -40°C ~ +50°C |
| POWER SUPPLY | DC12V / PoE+, Max 14W |
| DIMENSIONS | 116 × 112 × 372 mm |
| WEIGHT | 1900g |
| CERTIFICATIONS | CE, FCC |
Z2R8022EX25 1080P Day & Night Vari-Focal IR Vandal Resistant Bullet IP Camera from LILIN delivers professional-grade surveillance with high-performance imaging and rugged durability. Featuring a 2MP CMOS sensor and Full HD 1080p at 60FPS, this bullet camera ensures superior video quality, ideal for critical monitoring applications in commercial and industrial environments.
Advanced Imaging and Smart Features
Engineered for exceptional clarity and precision, the Z2R8022EX25 comes equipped with a motorized zoom and auto-focus lens (5.3–130mm, DC-IRIS) and supports advanced video compression with H.265/HEVC and H.264 formats. Its HDR 120dB, 3D noise reduction (MCTF), and 2D WDR technologies provide enhanced image quality even in challenging lighting conditions. Smart detection capabilities including tampering, motion, audio, alarm, and network loss detection ensure proactive security response.
- 2MP CMOS sensor, 1080p at 60FPS
- H.265/HEVC & H.264 compression
- Motorized 5.3–130mm zoom lens with auto focus
- HDR 120dB, 3DNR, 2D WDR
- Smart detection: motion, tamper, audio, alarm, network loss
- Smart IR with 100m range (850nm)
- Day & Night with IR cut filter
Reliable Outdoor Surveillance and Integration
Designed to withstand harsh outdoor conditions, this IP bullet camera boasts a weatherproof IP67 and vandal-resistant IK10 housing. It supports ONVIF Profiles S/T for seamless integration with existing surveillance infrastructure and includes two-way audio, alarm I/O, and RS-485 connectivity for enhanced system control. Its digital PTZ and IVS features offer flexible monitoring options suitable for diverse applications.
- Weatherproof IP67, vandal resistant IK10
- ONVIF Profile S/T compliant for interoperability
- Two-way audio, 1-in / 1-out alarm I/O, RS-485
- Digital PTZ and intelligent video surveillance (IVS)
Ideal for perimeter security, critical infrastructure, and high-risk areas, the Z2R8022EX25 delivers unmatched performance and durability. Available through certified CCTV and IP surveillance dealers.
Technical Specifications
- Model: Z2R8022EX25
- Sensor: 1/2.8" 2MP CMOS, 1945×1097 pixels
- Min. Illumination: 0.02 Lux (Color), 0.005 Lux (B/W), 0 Lux (IR)
- Lens: 5.3–130mm motorized, F1.6–F4.3, DC-IRIS
- Angle of View: H 58.5°–2.8°, V 33.2°–1.5°, D 67.5°–3.2°
- Max IR Distance: 100m
- Video Compression: H.265, H.264, MJPEG
- Resolution: 1920×1080 @ 60FPS
- Operating Temperature: -40°C ~ +50°C
- Power: DC12V / PoE+, Max 14W
- Dimensions: 116 × 112 × 372 mm
- Weight: 1900g
- Certifications: CE, FCC
