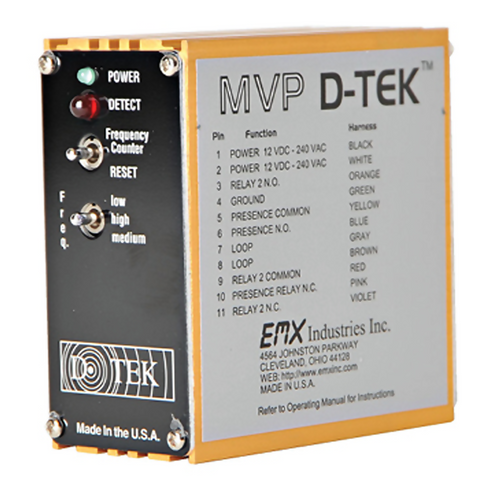

EMX-2550-1 MVP D-TEK Multi-Voltage Vehicle Loop Detector
The MVP D-TEK multi-voltage vehicle loop detector simplifies installation and maintenance by supporting a wide voltage range in one compact unit. Designed for reliable vehicle detection in access control and gate automation systems, it reduces inventory needs while offering flexible fail-safe and fail-secure operation. With advanced surge protection, automatic tuning, and durable aluminum housing, this detector delivers stable performance across harsh environments and demanding applications.
- Supports wide voltage range for flexible installations
- Fail-safe and fail-secure operating modes available
- Automatic tuning and environmental tracking
- Enhanced surge and lightning protection design
- Compact aluminum housing for long-term reliability
Supports universal voltage from 12 to 220 VAC/DC, reducing the need to stock multiple detector models.
Operates in both fail safe and fail secure modes, enhancing safety and installation flexibility.
Offers 10 adjustable sensitivity settings to accommodate a wide range of loop configurations and site conditions.
Enhanced lightning and surge immunity ensures reliable operation in harsh environments.
Constructed with an aluminum RF shield housing for improved durability and electromagnetic protection.
Includes a built-in loop conditioner to optimize detection performance and signal clarity.
Loop isolation transformer improves protection and noise immunity for stable operation.
Integrated loop diagnostics and frequency counter for simplified troubleshooting and maintenance.
Gold plated control contacts provide reliable and long-lasting electrical connections.
Dual relays support presence and pulse or dual presence outputs for versatile control logic.
Automatic tuning and environmental tracking reduce installation time and ensure consistent performance.
Compact design with extruded anodized aluminum housing fits into small enclosures and operator cabinets.
Operates across extreme temperatures from -40°F to +180°F, suitable for diverse climates.
Low current consumption supports energy-efficient operation across all supported voltages.
Standard 11-pin male connector simplifies integration with existing loop detector sockets.
| MODEL NAME | MVP D-TEK Multi-Voltage Vehicle Loop Detector |
| PART NUMBER | EMX-2550-1 |
| VOLTAGE RANGE | 12VDC to 240VAC |
| CURRENT CONSUMPTION | 19.2mA @ 9VDC, 18.8 mA @ 12VAC/DC, 17.3 mA @ 24VAC, 9.5 mA @ 24VDC, 13.5 mA @ 115VAC, 11.0 mA @ 237VAC |
| OPERATING TEMPERATURE | -40°F to +180°F |
| SURGE PROTECTION | Zener Diode / MOV |
| OUTPUT RELAYS | 2 Relays (Presence & Pulse or Presence), 1 Amp 30 VDC |
| LOOP INPUT | Transformer isolation, lightning and transient protection |
| LOOP INDUCTANCE RANGE | 20 – 2000 µH, Q-factor of 5 or higher |
| TUNING METHOD | Automatic on reset or power up |
| ENVIRONMENTAL TRACKING | Automatic for environmental changes |
| SENSITIVITY SETTINGS | 10 levels |
| FREQUENCY COUNTER | Yes |
| LOOP DIAGNOSTICS | Yes |
| BUILT-IN LOOP CONDITIONER | Yes |
| LOOP ISOLATION TRANSFORMER | Yes |
| CONTROL CONTACTS | Gold plated |
| HOUSING MATERIAL | Extruded Anodized Aluminum with RF Shield |
| DIMENSIONS | Height 3.25” (83mm) × Width 2.56” (40mm) × Length 3.65” (90mm) |
| CONNECTOR TYPE | 86CP11 11-pin male |
| FAIL-SAFE / FAIL-SECURE | Operates in both modes |
| INVENTORY ADVANTAGE | Universal voltage reduces stock requirements |
| APPLICATION | Vehicle loop detection for access control, parking, and traffic management |
MVP D-TEK Multi-Voltage Vehicle Loop Detector from EMX is engineered to streamline inventory and installation processes. With its wide 12 to 220 VAC/DC voltage range and compatibility with fail-safe and fail-secure modes, this detector eliminates the need to stock multiple models. Ideal for a variety of vehicle detection applications, it offers high performance, reliability, and advanced loop diagnostics.
Efficient and Flexible Loop Detection
The MVP D-TEK is designed for universal deployment across vehicle detection systems, reducing costs and simplifying logistics for installers. Housed in a durable aluminum RF shield, it features built-in lightning protection and advanced loop technology to ensure dependable operation in various environments. The inclusion of 10 sensitivity settings, loop isolation transformer, and loop conditioner enables precise customization and signal accuracy.
- Universal voltage range: 12 to 220 VAC/DC
- Operates in both fail-safe and fail-secure modes
- 10 adjustable sensitivity levels
- Aluminum RF shield housing for durability and interference protection
- Built-in loop conditioner and loop isolation transformer
- Gold plated contacts and 2 output relays (presence & pulse or presence)
Advanced Diagnostics and Smart Design
Designed with service technicians in mind, the MVP D-TEK includes loop diagnostics and a frequency counter for real-time system monitoring. It tunes automatically on reset or power-up and adjusts for environmental changes, minimizing the need for manual recalibration. Its compact, anodized aluminum enclosure ensures longevity, while the 11-pin male connector supports seamless integration.
- Automatic tuning and environmental tracking
- Frequency counter for precise diagnostics
- Surge protection via Zener Diode / MOV
- Transformer-isolated loop input
- Compact size: 3.25" H x 2.56" W x 3.65" L
- Operating temperature: -40°F to +180°F
Technical Specifications
- Model: MVP D-TEK
- Power Input: 12VDC to 240VAC
- Current Draw: Ranges from 9.5 mA to 19.2 mA based on voltage
- Relay Output: 1A @ 30 VDC (2 relays)
- Loop Inductance Range: 20 – 2000 µH (Q-factor ≥ 5)
- Connector: 11-pin male (86CP11)
- Housing: Extruded Anodized Aluminum
For versatile and dependable vehicle detection, the MVP D-TEK by EMX is the go-to solution for contractors and system integrators seeking reduced inventory complexity and high performance across diverse installations.
