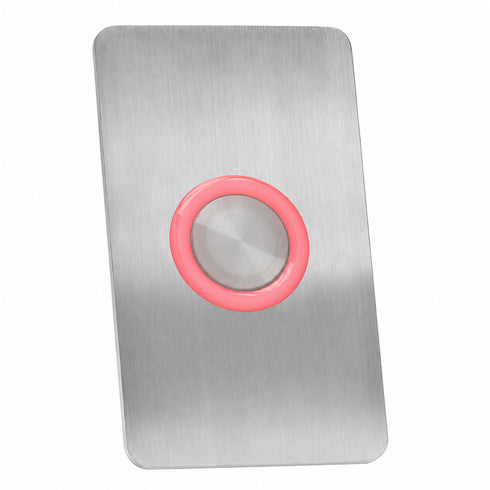

EX-06E0 Exit Button with MP-06 Mounting Housing Kit
The EX-06E0 Exit Button with MP-06 Mounting Housing Kit provides a complete solution for professional access control installations. The kit combines a weather-resistant exit button with a durable metal mounting housing, offering reliable operation and enhanced mechanical protection for indoor and outdoor environments. The exit button features a stainless steel IP65-rated construction, a programmable relay with adjustable activation time from 0 to 60 seconds or toggle mode, and isolated N.O. and N.C. dry contacts for flexible integration with access control systems. The included metal mounting housing ensures secure installation, protects the device from physical damage, and delivers a clean, professional appearance. Designed for commercial, industrial, and institutional applications, this kit simplifies installation while improving long-term reliability in high-traffic locations.
- Complete kit including exit button and protective metal mounting housing
- IP65-rated stainless steel exit button for indoor and outdoor installation
- Adjustable relay timer from 0 to 60 seconds or toggle operation
- Metal housing improves protection and installation durability
- Ideal for commercial, industrial, and professional access control systems
Complete access control kit includes the Rosslare EX-06E0 piezo exit button and the MP-06 metal mounting housing for a professional installation.
Durable stainless steel exit button combined with a rugged metal mounting housing provides enhanced protection against impact and vandalism.
The MP-06 flush-mount enclosure securely houses the EX-06E0 button, improving installation stability and long-term reliability.
Features a weather-resistant IP65-rated exit button, making the kit suitable for both indoor and outdoor access control applications.
Equipped with a relay rated at 2A and dual isolated N.O. and N.C. dry contacts, supporting contact current up to 5A for flexible system integration.
Offers adjustable relay activation time from 0 to 60 seconds or toggle mode to meet a variety of access control requirements.
Includes a 10-wire connection cable for convenient integration with door controllers and security systems.
Designed for installation in a compatible mounting box, with the MP-06 providing a clean, secure, and professional finish.
Operates reliably in harsh environments with a wide working temperature range from -35°C to +66°C.
Protective metal housing helps prevent damage to the exit button in high-traffic commercial and industrial locations.
Ideal for office buildings, commercial facilities, industrial sites, retail locations, and other professional access control installations.
Provides a durable, dependable, and aesthetically finished exit solution that reduces maintenance while extending product service life.
| MODEL NAME | Rosslare EX-06E0 Exit Button with MP-06 Metal Mounting Housing Kit |
| PRODUCT TYPE | Access Control Exit Button Kit |
| KIT INCLUDES | Rosslare EX-06E0 Exit Button and Rosslare MP-06 Metal Mounting Housing |
| MANUFACTURER | Rosslare Security Products |
| APPLICATION | Access control systems |
| USE ENVIRONMENT | Commercial, industrial, institutional, and residential facilities |
| INSTALLATION LOCATION | Indoor and outdoor |
| MOUNTING TYPE | Wall mount |
| HOUSING TYPE | Flush mounting box (H Series) |
| HOUSING MATERIAL | Metal |
| HOUSING PURPOSE | Protective mounting enclosure for EX-06E0 |
| HOUSING SHAPE | Square |
| BUTTON TYPE | Electronic Exit (REX) Button |
| BUTTON MATERIAL | Durable engineering plastic with stainless steel front |
| FACEPLATE MATERIAL | Stainless Steel |
| POWER SUPPLY | 12 VDC |
| OPERATING VOLTAGE | 12 VDC |
| RELAY TYPE | SPDT Relay |
| RELAY CONTACTS | NO / NC dry contacts |
| RELAY CONTACT RATING | 2 A standard, up to 5 A contact current |
| OUTPUT TYPE | Dry Contact Output |
| TIMER FUNCTION | Adjustable |
| TIMER RANGE | 0–60 seconds |
| LATCH MODE | Toggle switch mode supported |
| WIRING | 10-wire connection cable |
| WEATHER RESISTANCE | Suitable for outdoor installations |
| INGRESS PROTECTION | IP65 |
| OPERATING TEMPERATURE | -35°C to +66°C |
| INSTALLATION BOX | Fits flush mounting box |
| DIMENSIONS | 114 × 70 × 32 mm |
| WEIGHT | 0.277 kg (exit button) |
| HOUSING WEIGHT | Approx. 11 lb shipping weight |
| COLOR | Silver / Metallic |
| BUTTON FUNCTION | Request-to-Exit (REX) |
| COMPATIBILITY | Compatible with Rosslare MP-06 mounting housing |
| PROTECTION | Housing protects button against impact and vandalism |
| MECHANICAL DURABILITY | Designed for high-traffic environments |
| INSTALLATION STYLE | Professional flush installation |
| MOUNTING SECURITY | Secure metal enclosure |
| OUTDOOR USE | Yes |
| INDOOR USE | Yes |
| COMMERCIAL APPLICATIONS | Offices, retail stores, industrial buildings, educational facilities |
| ACCESS CONTROL COMPATIBILITY | Compatible with most access control systems |
| DOOR TYPE | Swing and access-controlled doors |
| EXIT CONTROL | Electronic door release |
| HOUSING BENEFIT | Improves installation appearance |
| HOUSING ADVANTAGE | Extended service life for installed button |
| CORROSION RESISTANCE | Stainless steel faceplate with durable metal enclosure |
| INSTALLATION RELIABILITY | Designed for long-term operation |
| MAINTENANCE | Minimal maintenance required |
| OPERATING MODE | Momentary or toggle operation |
| CONTACT CONFIGURATION | Normally Open / Normally Closed |
| SYSTEM INTEGRATION | Suitable for electronic locking systems |
| ENVIRONMENTAL PROTECTION | Weather-resistant sealed construction |
| INSTALLATION QUALITY | Professional-grade mounting solution |
| PACKAGE TYPE | Complete Exit Button and Mounting Housing Kit |
| COUNTRY OF MANUFACTURE | China |
| WARRANTY | 12 Months |
Rosslare EX-06E0 Exit Button with MP-06 Metal Mounting Housing is a professional-grade access control solution designed for reliable door release in commercial, industrial, and outdoor installations. Combining the durable EX-06E0 weatherproof exit button with the MP-06 metal mounting housing, this kit provides enhanced protection, secure installation, and long-lasting performance in high-traffic environments.
Reliable Exit Control with Enhanced Protection
The Rosslare EX-06E0 features a rugged stainless steel, IP65-rated weatherproof enclosure, making it suitable for both indoor and outdoor applications. It includes a programmable relay rated up to 5A with isolated NO and NC dry contacts, while the adjustable activation timer can be set from 0 to 60 seconds or configured for latching operation. The included MP-06 metal mounting housing provides additional mechanical protection and ensures a clean, professional flush-mounted installation.
- Complete kit includes EX-06E0 exit button and MP-06 metal mounting housing
- IP65 weatherproof construction for indoor and outdoor use
- Stainless steel faceplate for maximum durability
- Programmable relay with isolated NO & NC dry contacts
- Relay contact rating up to 5A
- Adjustable timer from 0 to 60 seconds or latching mode
- MP-06 housing provides secure mounting and added protection
Designed for Commercial Access Control Systems
Operating from a 12VDC power supply, the EX-06E0 integrates easily with virtually any access control system. The 10-wire connection simplifies installation, while the flush-mounted MP-06 enclosure improves installation quality and protects the device from vandalism and accidental damage. This combination is ideal for office buildings, retail stores, warehouses, healthcare facilities, schools, and industrial sites.
- Commercial office buildings
- Retail and shopping centers
- Industrial facilities and warehouses
- Educational institutions
- Healthcare facilities
- Outdoor access control installations
Security professionals looking for a weatherproof exit button with protective metal mounting housing can rely on the Rosslare EX-06E0 with MP-06 for dependable operation, long service life, and seamless integration with modern access control systems. Available through trusted USA access control and CCTV dealers.
Technical Specifications
- Model: Rosslare EX-06E0 + MP-06
- Device Type: Exit Button Kit
- Power Supply: 12VDC
- Relay Output: Isolated NO & NC dry contacts
- Relay Rating: Up to 5A
- Timer Adjustment: 0–60 seconds or latching mode
- Protection Rating: IP65
- Operating Temperature: -35°C to +66°C (-31°F to +151°F)
- Housing Material: Stainless steel button with MP-06 metal mounting housing
- Connection: 10-wire cable
- Mounting: Flush mount using MP-06 enclosure
- Dimensions (EX-06E0): 114 × 70 × 32 mm
