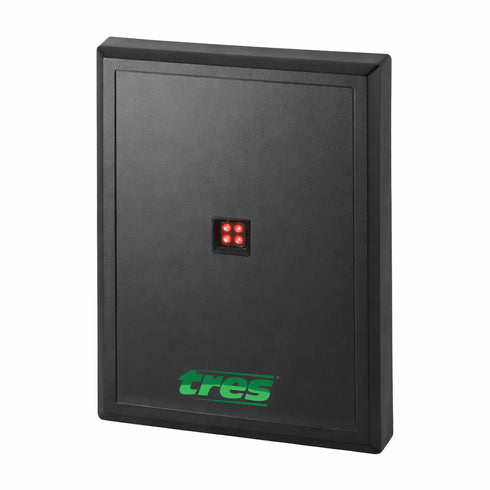

TRES-100-P-710-HA Proximity Reader Long Range 125 kHz RFID Access Control
The TRES P 710 HA Proximity Reader provides robust and efficient access control using proven 125 kHz RFID technology. Engineered for durability and consistent long range performance, it supports multiple proximity card and tag formats for versatile system integration. With a read range up to 15 inches and wide voltage tolerance, this reader is ideal for commercial facilities, industrial sites, and secure perimeters. Its compact yet rugged design allows installation on mullions, metal door frames, and various surfaces while maintaining reliable operation in demanding environments.
- 125 kHz proximity RFID technology
- Read range up to 15 inches
- Supports multiple proximity card protocols
- Durable housing with flexible mounting options
- Wide voltage range with low maintenance operation
Utilizes reliable 125-kHz Proximity RFID technology to deliver secure and consistent access control performance.
Offers a robust yet compact design measuring 6″W x 8.5″H x 1″D (216 mm x 152 mm x 25.4 mm) for versatile installation.
Provides an extended read range of up to 15 inches (378 mm) for convenient and efficient user access.
Compatible with a broad range of electronic access control systems for seamless system integration.
Supports multiple proximity card and tag technologies, including Pyramid Series and certain HID and AWID 125-kHz protocols.
Designed for flexible mounting on mullions, metal door and window frames, and various other surfaces.
Operates on +5 to 16 VDC with a typical current draw of 215 mA and a peak of 600 mA at 12 VDC.
Engineered for maintenance-free operation, enhancing long-term reliability and reducing service requirements.
Built to withstand extreme temperatures from -40°F to 149°F (-40°C to +65°C) for dependable indoor or outdoor use.
Certified to FCC, ICC, CE, C-Tick, UL Standard 2941, and IP67 standards for safety, quality, and environmental protection.
Weighs 20 oz (567g), offering a durable yet manageable solution for professional installations.
Delivers dependable and adaptable performance, making it an ideal solution for comprehensive electronic access control applications.
| MODEL NAME | P-710-HA PROXIMITY READER |
| PART NUMBER | TRES-100-P-710-HA |
| PRODUCT TYPE | Proximity RFID Reader |
| RFID TYPE | Proximity RFID |
| OPERATING FREQUENCY | 125 kHz |
| READ RANGE | Up to 15 inches (378 mm) |
| DIMENSIONS (INCHES) | 6″W x 8.5″H x 1″D |
| DIMENSIONS (MM) | 216 mm x 152 mm x 25.4 mm |
| WEIGHT | 20 oz (567 g) |
| MOUNTING OPTIONS | Mullions including metal door and window frames, and other surfaces |
| INSTALLATION SURFACES | Metal door frames, window frames, and flat mounting surfaces |
| APPLICATION | Electronic Access Control Systems |
| POWER SUPPLY | +5 to 16 VDC |
| CURRENT DRAW (TYPICAL) | 215 mA |
| CURRENT DRAW (PEAK) | 600 mA @ 12 VDC |
| OPERATING TEMPERATURE (F) | -40° F to 149° F |
| OPERATING TEMPERATURE (C) | -40° C to +65° C |
| CERTIFICATIONS | FCC, ICC, CE, C-Tick, UL Standard 2941, IP67 |
| ENVIRONMENTAL RATING | IP67 Rated |
| UL STANDARD | UL 2941 |
| COMPLIANCE | FCC, ICC, CE, C-Tick |
| TECHNOLOGY SUPPORT – TRES-P-710 | Pyramid Series Proximity Cards and Tags |
| TECHNOLOGY SUPPORT – TRES-P-710-H | Pyramid + certain HID 125-kHz Proximity protocols |
| TECHNOLOGY SUPPORT – TRES-P-710-A | Pyramid + certain AWID 125-kHz Proximity protocols |
| TECHNOLOGY SUPPORT – TRES-P-710-H-A | Pyramid + certain HID Proximity protocols + certain AWID 125-kHz Proximity protocols |
| CARD COMPATIBILITY | Supports multiple proximity card and tag technologies |
| READ TECHNOLOGY | Contactless RFID |
| MAINTENANCE | Maintenance-free operation |
| CONSTRUCTION | Robust and durable housing |
| DESIGN | Compact and rugged design |
| VOLTAGE RANGE | Wide voltage input range |
| SECURITY APPLICATION | Access management and entry control |
| SYSTEM COMPATIBILITY | Compatible with a broad array of electronic access control systems |
| SURFACE MOUNT | Yes |
| INDOOR / OUTDOOR USE | Suitable for indoor and outdoor installations |
| RESISTANCE | Resistant to environmental conditions |
| OPERATING MODE | Continuous RFID proximity reading |
| COLOR | Black (standard) |
| SHAPE | Rectangular |
| MANUFACTURER | EMX Industries Inc. |
| PRODUCT SERIES | TRES Pyramid Series |
| FREQUENCY TYPE | Low Frequency (LF) |
| MAX READ DISTANCE | 15 inches |
| INSTALLATION TYPE | Wall / Mullion Mount |
| APPLICATION ENVIRONMENT | Commercial, industrial, and secured facilities |
| COUNTRY OF MANUFACTURE | Made in the USA |
| WARRANTY | Manufacturer standard warranty |
P-710-HA Proximity Reader from EMX Industries Inc. delivers robust and durable performance for modern electronic access control systems. Operating on trusted 125-kHz Proximity RFID technology, this versatile reader provides a reliable read range of up to 15 inches, ensuring efficient and secure credential detection. With its rugged construction and compact dimensions of 6″W x 8.5″H x 1″D, the P-710-HA seamlessly integrates into a wide range of commercial, industrial, and institutional environments.
Engineered for Reliability and Versatility
Designed for dependable long-term operation, the P-710-HA supports multiple proximity card and tag technologies, including Pyramid Series Proximity Cards as well as certain HID and AWID 125-kHz proximity protocols (model dependent). Its flexible mounting capability allows installation on mullions, metal door and window frames, and other surfaces, making it ideal for both new installations and retrofit projects.
- 125-kHz Proximity RFID technology
- Read range up to 15 inches (378 mm)
- Compact yet rugged design (6″W x 8.5″H x 1″D)
- Compatible with a broad range of access control systems
- Supports Pyramid Series and select HID/AWID proximity protocols
Built for Demanding Environments
The P-710-HA operates on +5 to 16 VDC with a typical current draw of 215 mA and peak of 600 mA at 12 VDC. Engineered to withstand harsh environmental conditions, it functions reliably in temperatures ranging from -40°F to 149°F. Certified to FCC, ICC, CE, C-Tick, UL Standard 2941, and IP67, this reader ensures compliance with safety, quality, and environmental protection standards.
- Wide operating temperature range: -40°F to 149°F
- IP67 rated for environmental resistance
- Certified: FCC, ICC, CE, C-Tick, UL 2941
- Durable construction for long-term reliability
The P-710-HA Proximity Reader provides a comprehensive and dependable solution for managing secure access points. Its extended read range, multi-technology compatibility, and rugged design make it an excellent choice for commercial buildings, industrial facilities, gated properties, and institutional security systems.
Technical Specifications
- Model: TRES-100-P-710-HA
- RFID Type: 125-kHz Proximity RFID
- Read Range: Up to 15 inches (378 mm)
- Dimensions: 6″W x 8.5″H x 1″D (216 mm x 152 mm x 25.4 mm)
- Weight: 20 oz (567 g)
- Mounting: Mullions, metal door/window frames, and other surfaces
- Power Supply: +5 – 16 VDC, 215 mA typical, 600 mA peak @ 12 VDC
- Operating Temperature: -40°F to 149°F (-40°C to +65°C)
- Certifications: FCC, ICC, CE, C-Tick, UL 2941, IP67
- Supported Technologies:
- P-710: Pyramid Series Proximity Cards and Tags
- P-710-H: Pyramid + certain HID 125-kHz protocols
- P-710-A: Pyramid + certain AWID 125-kHz protocols
- P-710-H-A: Pyramid + certain HID and AWID 125-kHz protocols
