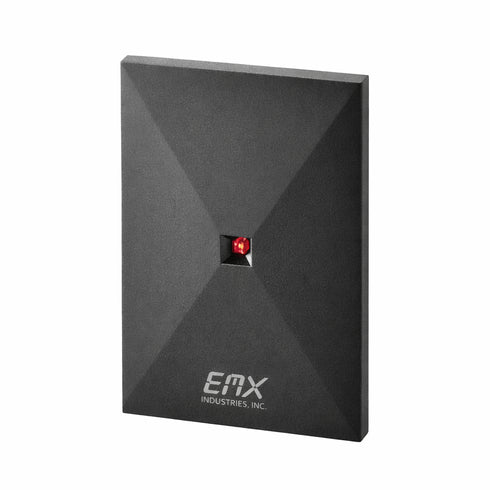

TRES-100-P-500-HA Proximity Reader Access Control RFID Device
The TRES P 500 HA Proximity Reader delivers dependable access control performance using 125 kHz proximity RFID technology. Designed for durability and flexibility, it supports a wide range of electronic access systems and proximity credentials. With a consistent read range up to 8 inches and passive operation requiring no battery, this compact reader ensures low maintenance and long term reliability. Its slim profile allows installation on mullions, metal door frames, and various surfaces, making it ideal for commercial and industrial security environments requiring secure and efficient credential verification :contentReference[oaicite:0]{index=0}
- 125 kHz proximity RFID technology
- Up to 8 inch consistent read range
- Compact slim design for flexible mounting
- No battery required passive operation
- Compatible with multiple proximity card protocols
Operates using reliable 125-kHz Proximity RFID technology, delivering consistent and secure credential reading for access control systems. :contentReference[oaicite:0]{index=0}
Provides a dependable read range of up to 8 inches (126 mm), ensuring convenient and efficient user access.
Features a compact and robust design measuring 3″W x 4.6″H x 0.4″D (76 mm x 117 mm x 10 mm), ideal for space-conscious installations.
Constructed for durability and long-lasting performance in a wide range of indoor and outdoor environments.
Supports Pyramid Series Proximity Cards and Tags, along with select HID and AWID 125-kHz proximity protocols for flexible system integration.
Equipped with advanced MAXSecure™ and fleaPower™ technologies to enhance security and optimize power efficiency.
Passive device design requires no internal battery, reducing maintenance needs and ensuring reliable operation.
Compatible with a broad range of electronic access control systems for seamless integration.
Flexible mounting options allow installation on mullions, metal door and window frames, and various other surfaces.
Operates on +5 to 16 VDC with low current consumption (35 mA typical, 75 mA peak at 12 VDC) for efficient power usage.
Built to withstand extreme temperatures from -40°F to 149°F (-40°C to +65°C), making it suitable for harsh conditions.
Certified to FCC, ICC, CE, C-Tick, UL Standard 294, and IP67 standards, ensuring compliance, safety, and weather resistance.
| MODEL NAME | P-500-HA PROXIMITY READER (TRES-P-500-HA) |
| PART NUMBER | TRES-100-P-500-HA |
| PRODUCT TYPE | Proximity RFID Reader |
| RFID TYPE | 125-kHz Proximity RFID |
| OPERATING FREQUENCY | 125 kHz |
| READ RANGE | Up to 8 inches (126 mm) |
| DIMENSIONS (INCHES) | 3″W x 4.6″H x 0.4″D |
| DIMENSIONS (MM) | 76 mm x 117 mm x 10 mm |
| WEIGHT | 4 oz (113 g) |
| POWER SUPPLY | +5 to 16 VDC |
| CURRENT DRAW (TYPICAL) | 35 mA typical |
| CURRENT DRAW (PEAK) | 75 mA peak @ 12 VDC |
| DEVICE TYPE | Passive (No Battery Required) |
| MOUNTING OPTIONS | Mullions and Various Surfaces |
| METAL MOUNTING | Suitable for Metal Door and Window Frames |
| APPLICATION | Electronic Access Control Systems |
| COMPATIBILITY | Broad Range of Electronic Access Control Systems |
| SUPPORTED CARDS | Pyramid Series Proximity Cards and Tags |
| SUPPORTED PROTOCOLS (H) | Certain HID 125-kHz Proximity Protocols |
| SUPPORTED PROTOCOLS (A) | Certain AWID 125-kHz Proximity Protocols |
| SUPPORTED PROTOCOLS (H-A) | HID and AWID 125-kHz Proximity Protocols |
| SECURITY FEATURE | MAXSecure™ Technology |
| POWER EFFICIENCY FEATURE | fleaPower™ Technology |
| OPERATING TEMPERATURE (F) | -40° F to 149° F |
| OPERATING TEMPERATURE (C) | -40° C to +65° C |
| CERTIFICATION - FCC | Compliant |
| CERTIFICATION - ICC | Compliant |
| CERTIFICATION - CE | Compliant |
| CERTIFICATION - C-TICK | Compliant |
| CERTIFICATION - UL | UL Standard 294 |
| INGRESS PROTECTION | IP67 Rated |
| CONSTRUCTION | Durable and Robust Housing |
| DESIGN | Compact and Flexible Design |
| MAINTENANCE | Low Maintenance Operation |
| INSTALLATION TYPE | Surface Mount |
| INTEGRATION | Seamless Integration into Access Systems |
| TECHNOLOGY PLATFORM | Proximity RFID |
| READ CONSISTENCY | Consistent Read Range Performance |
| ENVIRONMENTAL SUITABILITY | Indoor and Outdoor Use |
| FRAME COMPATIBILITY | Door and Window Frames |
| SYSTEM INTERFACE | Electronic Access Control Interface |
| USER AUTHENTICATION | Proximity Card or Tag Based |
| OPERATING MODE | Continuous Passive Operation |
| POWER REQUIREMENT RANGE | Wide Voltage Input Support |
| HOUSING DEPTH | 0.4 Inches (10 mm) |
| HOUSING WIDTH | 3 Inches (76 mm) |
| HOUSING HEIGHT | 4.6 Inches (117 mm) |
| INSTALLATION ENVIRONMENT | Commercial and Industrial Applications |
| SYSTEM EXPANSION | Supports Multiple Card Technologies |
| SECURITY ENHANCEMENT | Advanced Encryption and Secure Communication |
| ENERGY EFFICIENCY | Optimized Low Power Consumption |
| PRODUCT CATEGORY | Access Control / Keypads & Card Readers |
| MANUFACTURER | EMX Industries Inc. |
| COUNTRY OF MANUFACTURE | Made in the USA |
| USE CASE | Secure Access Management |
P-500-HA Proximity Reader is a durable and compact 125 kHz RFID access control reader designed for reliable performance in commercial and industrial environments. Engineered for seamless integration with electronic access control systems, this reader delivers a consistent read range of up to 8 inches and operates without the need for batteries, ensuring low maintenance and long-term dependability.
Reliable Performance with Advanced Technology
Built with trusted 125-kHz Proximity RFID technology, the P-500-HA provides secure credential authentication for a wide range of facilities. Its compact footprint of 3”W x 4.6”H x 0.4”D allows for flexible installation on mullions, metal door frames, window frames, and other mounting surfaces. Featuring advanced enhancements such as MAXSecure™ and fleaPower™, this reader improves security performance while optimizing power efficiency.
- 125 kHz Proximity RFID technology
- Read range up to 8 inches (126 mm)
- Compact design: 3”W x 4.6”H x 0.4”D
- Passive device – no battery required
- Enhanced security with MAXSecure™ and fleaPower™
Flexible Integration for Access Control Systems
The P-500-HA is compatible with a broad range of electronic access control platforms and supports multiple credential technologies, including Pyramid Series Proximity Cards and select HID and AWID 125-kHz proximity protocols (model dependent). Its rugged construction and IP67 rating make it suitable for indoor and outdoor installations, even in harsh environments.
- Compatible with Pyramid Series Proximity Cards and Tags
- Select models support HID and AWID 125-kHz protocols
- Mounts on mullions, metal frames, and various surfaces
- IP67 rated for environmental protection
- Certified: FCC, ICC, CE, C-Tick, UL 294
Designed for dependable access management, the P-500-HA Proximity Reader is ideal for commercial buildings, gated facilities, industrial sites, and secured entry points requiring consistent credential authentication and long-lasting performance.
Technical Specifications
- RFID Type: 125-kHz Proximity RFID
- Operating Frequency: 125 kHz
- Read Range: Up to 8 inches (126 mm)
- Dimensions: 3”W x 4.6”H x 0.4”D (76 mm x 117 mm x 10 mm)
- Weight: 4 oz (113 g)
- Power Supply: +5 – 16 VDC, 35 mA typical, 75 mA peak @ 12 VDC
- Operating Temperature: -40°F to 149°F (-40°C to +65°C)
- Mounting: Mullions and metal door/window frames
- Applications: Electronic Access Control Systems
- Certifications: FCC, ICC, CE, C-Tick, UL 294, IP67
