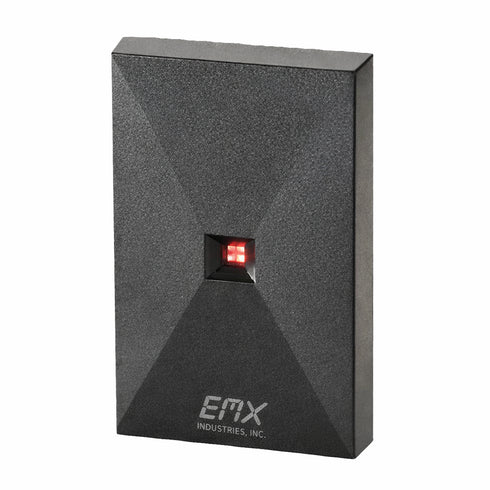

TRES-100-P-300-HA Proximity Reader 125 kHz RFID Access Control Device
The P 300 Proximity Reader is a compact and durable 125 kHz RFID device designed for seamless integration with electronic access control systems. It delivers reliable performance with a read range up to five inches while operating as a passive unit that requires no battery. Advanced security features enhance credential protection and system flexibility. Its slim mullion style housing allows installation on metal door frames, window frames, and various surfaces, making it ideal for commercial, industrial, and high security environments. Built for dependable operation in demanding conditions, it supports multiple proximity card and tag technologies while maintaining consistent read accuracy. The rugged construction and certified compliance ensure long term performance across a wide temperature range, providing an efficient and adaptable solution for secure entry management.
- 125 kHz proximity RFID technology
- Read range up to five inches
- Compact mullion mount design
- No battery required passive operation
- Supports multiple proximity credentials
Utilizes proven 125-kHz Proximity RFID technology to deliver consistent and dependable access control performance.
Offers a reliable read range of up to 5 inches (126 mm) for smooth and efficient credential detection.
Compact design measuring 1.7″W x 3.2″H x 0.7″D allows for easy installation in space-constrained areas.
Compatible with a wide range of electronic access control systems for seamless system integration.
Supports multiple proximity card and tag technologies, including Pyramid Series, certain HID, and AWID 125-kHz protocols.
Equipped with MAXSecure™ and fleaPower™ features to enhance security customization and energy efficiency.
Passive device design requires no battery, reducing maintenance needs and long-term operating costs.
Flexible mounting options suitable for mullions, metal door and window frames, and various other surfaces.
Operates on +5 to 16 VDC with low current consumption for efficient power management.
Built to withstand extreme temperatures ranging from -40°F to 149°F (-40°C to +65°C).
Certified to FCC, ICC, CE, C-Tick, UL Standard 294, and IP67 standards for compliance and durability.
Lightweight construction at just 3 oz (85 g) ensures easy handling and installation.
Ideal for commercial and industrial electronic access control applications requiring dependable and secure credential authentication.
| MODEL NAME | P-300 PROXIMITY READER |
| PART NUMBER | TRES-100-P-300-HA |
| PRODUCT TYPE | Proximity RFID Reader |
| RFID TYPE | 125-kHz Proximity RFID |
| OPERATING FREQUENCY | 125 kHz |
| READ RANGE | Up to 5 inches (126 mm) |
| DIMENSIONS (INCHES) | 1.7″W x 3.2″H x 0.7″D |
| DIMENSIONS (MM) | 43 mm x 81 mm x 18 mm |
| WEIGHT | 3 oz (85 g) |
| MOUNTING OPTIONS | Mullions, metal door frames, window frames, and various flat surfaces |
| POWER SUPPLY | +5 to 16 VDC |
| CURRENT DRAW (TYPICAL) | 30 mA typical |
| CURRENT DRAW (PEAK) | 75 mA peak @ 12 VDC |
| DEVICE TYPE | Passive (no battery required) |
| OPERATING TEMPERATURE (F) | -40° F to 149° F |
| OPERATING TEMPERATURE (C) | -40° C to +65° C |
| APPLICATION | Electronic Access Control Systems |
| COMPATIBILITY | Interfaces with a wide range of electronic access control systems |
| COMMUNICATION PROTOCOL | Wiegand |
| TECHNOLOGY PLATFORM | Proven contactless digital RFID technology |
| SUPPORTED CARD TECHNOLOGIES | Pyramid Series Proximity Cards and Tags |
| SUPPORTED HID PROTOCOLS | Certain HID 125-kHz Proximity protocols (H version) |
| SUPPORTED AWID PROTOCOLS | Certain AWID 125-kHz Proximity protocols (A version) |
| MULTI-TECH SUPPORT | HID + AWID support available (H-A version) |
| SECURITY FEATURES | MAXSecure™ technology |
| POWER MANAGEMENT | fleaPower™ technology |
| CONSTRUCTION | Durable and solid construction |
| DESIGN | Compact and discreet design |
| INSTALLATION | Surface mount |
| USAGE ENVIRONMENT | Indoor and Outdoor |
| IP RATING | IP67 |
| CERTIFICATIONS | FCC, ICC, CE, C-Tick, UL 294, IP67 |
| COMPLIANCE STANDARD | UL Standard 294 |
| FREQUENCY STABILITY | Stable 125-kHz operation |
| READING METHOD | Contactless proximity read |
| MAINTENANCE REQUIREMENT | Maintenance-free operation |
| HOUSING MATERIAL | Rugged industrial-grade enclosure |
| COLOR | Standard dark finish |
| FORM FACTOR | Mullion-style reader |
| INSTALLATION LOCATION | Door frames, window frames, access points |
| INDUSTRY USE | Commercial, Industrial, Institutional security |
| ACCESS METHOD | Proximity card and tag authentication |
| SYSTEM INTEGRATION | Seamless integration with electronic access systems |
| ENVIRONMENTAL RESISTANCE | Weather-resistant, dust-tight |
| RELIABILITY | High-performance, long-term durability |
| PRODUCT SERIES | TRES-P-300 Series |
| MODEL VARIANTS | TRES-P-300, TRES-P-300-H, TRES-P-300-A, TRES-P-300-H-A |
| MANUFACTURER | EMX Industries Inc. |
| COUNTRY OF MANUFACTURE | Made in the USA |
TRES-P-300 Proximity Reader from Alfa Iris delivers dependable performance and durable construction for modern electronic access control systems. Built on proven 125-kHz Proximity RFID technology, this compact reader offers a reliable read range of up to 5 inches (126 mm). As a passive device requiring no battery, it minimizes maintenance while providing enhanced usability with advanced features such as MAXSecure™ and fleaPower™.
Compact, Durable, and Built for Versatile Installation
Designed with efficiency and adaptability in mind, the TRES-P-300 measures just 1.7″W x 3.2″H x 0.7″D, making it ideal for mullion mounting and installation on metal door and window frames or other surfaces. Its solid-state design ensures long-term reliability in demanding environments, while broad compatibility allows seamless integration with a wide range of electronic access control systems.
- Proven 125-kHz Proximity RFID technology
- Read range up to 5 inches (126 mm)
- Passive operation – no battery required
- Compact mullion-style design
- Supports multiple proximity card and tag technologies
Flexible Integration with Enhanced Security Features
The TRES-P-300 is engineered for maximum compatibility and flexibility. It interfaces with various access control platforms and supports Pyramid Series Proximity® cards and tags, as well as select HID and AWID 125-kHz proximity protocols depending on the model variant. Advanced technologies like MAXSecure™ and fleaPower™ provide additional layers of customization, security, and energy efficiency for professional installations.
- Compatible with Pyramid Series Proximity® cards and tags
- Select models support HID and AWID 125-kHz protocols
- Wiegand interface compatibility
- Low power consumption for efficient operation
- Ideal for commercial and industrial access control applications
Certified to meet FCC, ICC, CE, C-Tick, UL Standard 294, and IP67 standards, the TRES-P-300 Proximity Reader ensures dependable performance in both indoor and outdoor environments. Security professionals seeking a compact, reliable, and maintenance-free proximity reader can rely on this solution from Alfa Iris for seamless integration into modern access control systems. :contentReference[oaicite:0]{index=0}
Technical Specifications
- Model: TRES-P-300
- RFID Type: 125-kHz Proximity RFID
- Operating Frequency: 125 kHz
- Read Range: Up to 5 inches (126 mm)
- Dimensions: 1.7″W x 3.2″H x 0.7″D (43 mm x 81 mm x 18 mm)
- Weight: 3 oz (85 g)
- Power Supply: +5 to 16 VDC, 30 mA typical, 75 mA peak @ 12 VDC
- Operating Temperature: -40°F to 149°F (-40°C to +65°C)
- Mounting: Mullions, metal door/window frames, and other surfaces
- Certifications: FCC, ICC, CE, C-Tick, UL 294, IP67
- Applications: Electronic Access Control Systems
