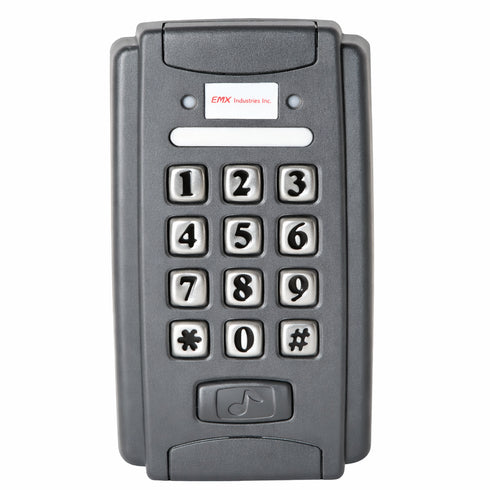

EMX-5402-1 PRX-320 RFID Proximity Reader With Keypad Waterproof Access Control
The PRX 320 stand alone waterproof proximity reader and keypad is engineered for secure outdoor gate and door access control. Designed to support up to 2000 card users and 8 keypad codes, this versatile unit provides four flexible entry modes including card only, keypad only, card plus code, or card or code access. With a durable weather resistant housing and low power consumption, it is ideal for solar installations and demanding environments. Visual LED indicators provide clear system status, while a built in relay contact ensures reliable integration with automatic gates and entry systems. :contentReference[oaicite:0]{index=0}
- Supports up to 2000 proximity cards and 8 keypad codes
- Four programmable access modes for flexible security control
- Waterproof housing for reliable outdoor installations
- Low power consumption ideal for solar applications
- Five inch read range with LED status indicators
Designed for outdoor automatic gates and doors, the PRX-320 stand-alone proximity reader/keypad features a fully waterproof housing for reliable performance in harsh weather conditions.
Supports up to 2,000 proximity cards and 8 unique keypad user codes, providing flexible access control for residential, commercial, or light industrial applications.
Offers four programmable entry modes: four-digit pass code only, proximity card only, card plus pass code, or either card or pass code for customizable security levels.
Provides a 5-inch read range, delivering convenient and efficient credential scanning without requiring direct contact.
Operates on 12 VDC with a power requirement of 500–800 mA, ensuring compatibility with standard gate and access control power systems.
Features low energy consumption at 90 mA standby and 110 mA activated, making it ideal for solar-powered gate installations.
Equipped with a 3A / 12VDC relay contact rating, supporting reliable integration with automatic gate operators and door strike systems.
Includes clear LED status indicators: red for power, green for key confirmation and granted entry, yellow flashing for denied access, and solid yellow for alarm condition.
Built-in contact for a doorbell annunciator enhances visitor notification and system functionality.
Provides secure pass code programming to help protect against unauthorized system changes and maintain site security.
CE certified and ROHS compliant, meeting recognized safety and environmental standards.
Manufactured in the USA and backed by a 2-year limited manufacturer warranty for dependable quality and long-term reliability.
| MODEL NAME | EMX 5402-1 PRX-320 RFID Proximity Reader w/ Keypad - Waterproof |
| MANUFACTURER | EMX Industries |
| MPN | EMX-5402-1 |
| SKU | EMX-5402-1 |
| PRODUCT TYPE | Stand-Alone RFID Proximity Reader with Keypad |
| APPLICATION | Automatic gates and doors |
| INSTALLATION ENVIRONMENT | Outdoor use |
| WATERPROOF RATING | Waterproof housing for exterior installations |
| ACCESS TECHNOLOGY | RFID Proximity Card and Keypad |
| MAXIMUM CARD CAPACITY | Up to 2,000 proximity cards |
| MAXIMUM KEYPAD USERS | Up to 8 user pass codes |
| PASS CODE LENGTH | 4-digit pass code |
| DOOR OPENING MODES | Card only / Code only / Card + Code / Card or Code |
| READ RANGE | Up to 5 inches |
| POWER REQUIREMENTS | 12 VDC, 500–800 mA |
| POWER CONSUMPTION (STANDBY) | 90 mA |
| POWER CONSUMPTION (ACTIVE) | 110 mA |
| RELAY CONTACT RATING | 3A @ 12VDC |
| POWER INDICATOR | Red LED bar (constant on) |
| KEY CONFIRMATION | Green LED on while key is depressed |
| ENTRY CONFIRMATION | Green LED bar on for programmed time |
| ENTRY DENIED INDICATION | Yellow LED flashing |
| ALARM CONDITION INDICATION | Yellow LED constant on |
| BUILT-IN DOORBELL CONTACT | Yes, integrated annunciator contact |
| ENERGY EFFICIENCY | Low energy consumption design |
| SOLAR COMPATIBILITY | Ideal for solar installations |
| PROGRAMMING | Secure pass code programming |
| ENCLOSURE TYPE | Weather-resistant sealed housing |
| MOUNTING TYPE | Surface mount |
| OPERATING VOLTAGE | 12VDC |
| CURRENT DRAW RANGE | 500–800 mA supply requirement |
| USER CAPACITY | 2,000 card users + 8 keypad users |
| ACCESS CONTROL TYPE | Stand-alone (no external controller required) |
| HOUSING MATERIAL | Durable outdoor-rated enclosure |
| LED STATUS INDICATORS | Red, Green, and Yellow LED bars |
| RELAY OUTPUT TYPE | Form C dry contact |
| CONTACT RATING | 3 Amp @ 12VDC |
| ACCESS MODES AVAILABLE | Single-factor and dual-factor authentication |
| ENTRY METHOD OPTIONS | RFID card, PIN code, or combination |
| WEATHER RESISTANCE | Designed for rain and outdoor exposure |
| INDUSTRY CERTIFICATION | CE Certified |
| COMPLIANCE | RoHS Compliant |
| MANUFACTURING ORIGIN | Made in USA |
| WARRANTY | 2-Year Limited Manufacturer Warranty |
| COMPATIBLE APPLICATIONS | Driveway gates, pedestrian gates, secured doors |
| SYSTEM TYPE | Electronic Access Control Device |
| KEYPAD TYPE | Integrated numeric keypad |
| CARD TECHNOLOGY | RFID Proximity |
| SECURITY LEVEL | Multi-mode authentication capability |
| INSTALLATION LOCATION | Gate post or wall mount |
| ANNUNCIATOR SUPPORT | Built-in doorbell annunciator contact |
| OPERATING STATUS FEEDBACK | Visual LED indication for all access states |
EMX 5402-1 PRX-320 RFID Proximity Reader with Keypad is a stand-alone, waterproof access control solution designed for outdoor automatic gates and doors. Engineered for reliability and low energy consumption, this versatile reader supports up to 2,000 proximity cards and 8 keypad user codes, making it ideal for residential communities, commercial properties, and solar-powered installations.
Flexible Access Control with Four Entry Modes
The PRX-320 offers secure and customizable access with four selectable door entry configurations. Installers can program the unit for keypad-only access, card-only access, card plus passcode for enhanced security, or either card or passcode entry. Secure passcode programming and clear LED indicators ensure simple operation and dependable performance in high-traffic environments.
- Supports up to 2,000 proximity card users
- Stores up to 8 four-digit keypad pass codes
- Four programmable entry modes for flexible security
- 5-inch proximity card read range
- Built-in contact for doorbell annunciator
- Waterproof housing for outdoor installations
- Low energy consumption – ideal for solar gate systems
- CE certified and ROHS compliant
- Made in USA
- 2-Year Limited Manufacturer Warranty
Built for Outdoor Performance
Designed specifically for exterior use, the EMX-5402-1 features a sealed waterproof enclosure that withstands harsh weather conditions. Visual LED indicators provide system status at a glance: red for power, green for key confirmation and authorized entry, and yellow for denied access or alarm conditions. Its durable construction and efficient power draw make it well-suited for gate operators and solar-powered access systems.
- Red LED bar: Constant power indication
- Green LED: Key press and entry confirmation
- Yellow LED: Access denied or alarm condition
- Weather-resistant design for long-term outdoor use
Technical Specifications
- Model: EMX-5402-1 (PRX-320)
- Power Requirements: 12 VDC, 500–800 mA
- Power Consumption: 90 mA standby / 110 mA activated
- Relay Contact Rating: 3A @ 12VDC
- Read Range: Up to 5 inches
- User Capacity: 2,000 cards or 8 keypad codes
- Operating Modes: Card only, Code only, Card + Code, Card or Code
- Installation: Stand-alone configuration
- Application: Outdoor gates and door access control
The EMX 5402-1 PRX-320 RFID Proximity Reader with Keypad delivers secure, weatherproof access control with flexible programming and efficient performance. It is a dependable solution for contractors and property managers seeking durable, stand-alone gate and door entry control. :contentReference[oaicite:0]{index=0}
