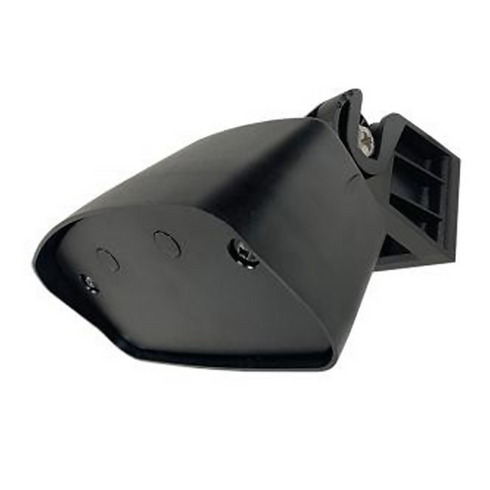

EMX 5415-2 RAVEN Microwave Motion Sensor
The EMX 5415-2 RAVEN microwave motion sensor provides reliable vehicle detection for automatic doors and industrial gate systems. Designed to differentiate vehicles from pedestrians, it helps minimize unnecessary activations and improve operational efficiency. With adjustable sensitivity, directionality, and cross traffic suppression, the sensor supports precise detection in demanding indoor and outdoor environments. Flexible mounting height options and dual relay outputs allow integration into a wide range of access control and traffic management applications.
- Accurately detects vehicles while ignoring pedestrians and parallel traffic
- Dual configurable relay outputs for vehicle and pedestrian control
- Adjustable sensitivity and cross traffic suppression settings
- Suitable for indoor and outdoor industrial environments
- Supports flexible mounting heights for varied installations
You Save: $999.84 (84%)
Uses advanced microwave technology to reliably detect vehicle motion for activating automatic doors and industrial gates.
Equipped with dual relay outputs, enabling differentiation between vehicle and pedestrian traffic.
Offers multiple detection modes including approach-only, depart-only, and bidirectional movement for versatile applications.
Features adjustable sensitivity and cross traffic suppression to minimize false activations and improve efficiency.
Supports flexible vertical (±90° in 15° steps) and horizontal (±18°) directional adjustments for precise detection area control.
Allows programming via built-in push buttons or an optional remote control for easy setup and modifications.
Designed for mounting heights between 8–23 ft (2.5–7 m), suitable for various installation scenarios.
Optimized for both indoor and outdoor environments with a robust IP67-rated polycarbonate housing.
Operates reliably across wide temperature ranges from -4°F to 140°F (-20°C to 50°C), ensuring year-round functionality.
Minimizes unnecessary door openings to reduce energy costs and increase system longevity.
Ideal for industrial door activation, vehicle detection in parking garages, car washes, and cold storage facilities.
Includes a 26 ft (8 m) cable for convenient connection and installation flexibility.
Low power consumption with 50 mA current draw at 24 VDC, compatible with 12–36 VDC or 12–28 VAC power sources.
Relay hold time adjustable between 0.5 to 300 seconds, allowing tailored activation durations.
Supports NO/NC relay contact configurations with a 1 A @ 24 VDC/AC rating for secure switching.
| MODEL NAME | EMX 5415-2 RAVEN Microwave Motion Sensor |
| DISTINGUISHING FEATURE | Discriminates between vehicles and pedestrians |
| RELAY OUTPUT | Two configurable relay outputs (vehicle & pedestrian) |
| ADJUSTABILITY | Adjustable sensitivity and cross traffic suppression |
| MOUNTING HEIGHT | 8-23 ft (2.5-7 m) |
| PROGRAMMING METHOD | Push buttons or optional remote control |
| DETECTION MODES | Approach-only, depart-only, bidirectional |
| APPLICATIONS | Industrial doors, tow-motor detection, cold storage, barrier arms, parking entrances |
| OPERATING FREQUENCY | 24.150 GHz |
| DETECTION RANGE | Dependent on height and housing angle |
| VERTICAL DIRECTIONALITY | ± 90° in 15° increments (up/down) |
| HORIZONTAL DIRECTIONALITY | ± 18° (left/right) |
| POWER SUPPLY | 12-36 VDC or 12-28 VAC |
| CURRENT DRAW | 50 mA @ 24 VDC |
| RELAY HOLD TIME | 0.5 to 300 seconds (adjustable) |
| RELAY CONTACT RATING | 1 A @ 24 VDC/AC |
| OPERATING TEMPERATURE | -4°F to 140°F (-20°C to 50°C) |
| HUMIDITY TOLERANCE | Below 90% relative humidity |
| DIMENSIONS | 5.16" x 2.87" x 5.35" (131 mm x 73 mm x 136 mm) with bracket |
| CONNECTION | 26 ft (8 m) cable |
| HOUSING MATERIAL | Polycarbonate |
| ENVIRONMENTAL RATING | IP67 |
| INSTALLATION | Indoor and outdoor use |
| ENERGY SAVING | Reduces unnecessary door openings |
| REMOTE CONTROL | Optional for easy configuration |
| CROSS TRAFFIC FILTER | Yes |
| DETECTION FIELD | Flexibly adjustable |
| USAGE ENVIRONMENT | Suitable for harsh and variable conditions |
EMX 5415-2 RAVEN Microwave Motion Sensor from Alfa Iris is a high-performance vehicle motion sensor utilizing advanced microwave technology for activating automatic doors and industrial gates. Engineered to distinguish between vehicles and pedestrians, this sensor helps optimize access control in commercial and industrial environments while reducing unnecessary activations.
Advanced Detection and Traffic Filtering
The RAVEN sensor features dual configurable relay outputs for vehicles and pedestrians and can be programmed for approach-only, depart-only, or bidirectional detection. With adjustable sensitivity and cross traffic suppression, it minimizes false triggers and conserves energy by reducing door openings. Programming is user-friendly through onboard buttons or an optional remote control for quick setup and customization.
- Vehicle and pedestrian detection with dual relays
- Bidirectional, approach-only, or depart-only modes
- Adjustable sensitivity and relay hold time (0.5–300 seconds)
- Cross traffic filtering reduces unnecessary activations
- Remote or push-button programming options
Versatile Applications and Robust Construction
Designed for indoor and outdoor use, the RAVEN sensor is ideal for automatic industrial doors, cold storage areas, truck and tow-motor detection, and parking facility access. It supports a wide mounting height range of 8–23 ft (2.5–7 m) and features durable IP67-rated polycarbonate housing for harsh environments.
- Activation of automatic industrial doors
- Barrier arm and gate control in parking garages
- Truck, forklift, and vehicle detection in warehouses
- Cold storage and high-traffic facility entrances
Technical Specifications
- Model: EMX 5415-2 RAVEN
- Operating Frequency: 24.150 GHz
- Mounting Height: 8–23 ft (2.5–7 m)
- Detection Range: Based on sensor height and angle
- Power: 12–36 VDC or 12–28 VAC
- Current Draw: 50 mA @ 24 VDC
- Relay Output: 2 relay outputs (NO/NC for vehicles/pedestrians)
- Relay Hold Time: 0.5–300 seconds (adjustable)
- Temperature Range: -4°F to 140°F (-20°C to 50°C)
- Dimensions (W x H x D): 5.16" x 2.87" x 5.35" (131 x 73 x 136 mm) with bracket
- Connection: 26 ft (8 m) cable
- Housing: Polycarbonate
- Environmental Rating: IP67
