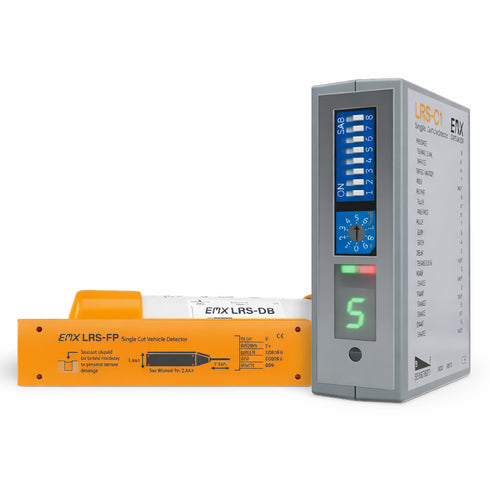

EMX-2305-K LRS Vehicle Detector Single Saw Cut Magnetoresistive Detection System

LRS Loop Replacement System Vehicle Detector from EMX Industries is an advanced single saw-cut vehicle detection system designed to replace traditional inductive loops. Utilizing innovative 3-axis magnetoresistive sensing technology, the LRS detects changes in the Earth’s magnetic field caused by ferrous vehicles, delivering highly accurate and reliable presence detection in both above-ground and direct burial installations.

Advanced Detection Without Traditional Loops

The LRS Vehicle Detector eliminates the need for multiple loop cuts, significantly reducing installation time and cost. Its compact, loop-less design features three sensing elements (X, Y, and Z axes) that improve sensitivity and allow flexible installation orientation. Equipped with EMX’s exclusive DETECT-ON-STOP™ (DOS®) technology, the system triggers detection only when a vehicle comes to a complete stop—ideal for ignoring cross traffic in tight access control spaces.

• Single saw-cut installation – no 9-cut loops required
• 3-axis magnetoresistive sensing (X, Y, Z axis selectable)
• DETECT-ON-STOP™ technology to ignore cross traffic
• ULTRAMETER™ sensitivity display for fast setup
• Stand-alone sensor with non-volatile memory storage
• Optional Logic Interface for directional or extended detection

Flexible Integration for Access Control Systems

The LRS system is designed for seamless integration with automatic gates, parking controls, traffic management systems, and commercial access control applications. It supports both pulse and presence outputs and offers relay and NPN (open collector) configurations. The optional LRS-LC Logic Controller provides A-B directionality or increased detection zone capabilities, expanding its application versatility.

• Compatible with gate operators and barrier systems
• Detection range up to 5 ft (1.5 m)
• Pulse or constant presence output selectable
• Reverse polarity and fuse protected circuitry
• Operates in extreme temperatures from -40°C to 82°C

Available Models and Kits

• LRS-FP-50-K – Flat Pack Sensor Kit with 50 ft lead and controller
• LRS-FP-100-K – Flat Pack Sensor Kit with 100 ft lead and controller
• LRS-DB-50-K – Direct Burial Sensor Kit with 50 ft lead and controller
• LRS-DB-100-K – Direct Burial Sensor Kit with 100 ft lead and controller
• LRS-C1 – Controller for single sensor
• LRS-LC – Logic Controller for directionality or extended zone

Technical Specifications

• Power Supply: 12–30 VDC or 24 VAC
• Outputs: SPDT relay (1A @ 24VDC/120VAC) / NPN 50 mA max
• Indicators: Green power LED, Red detect LED
• Connection: 10-position screw terminal
• Housing: ABS, IP30 rated
• Dimensions: 3.0” x 0.9” x 2.75”
• Current Draw: 40 mA max

• Technology: 3-axis magnetoresistive
• Output: NPN (open collector), 50 mA max
• Environmental Rating: IP69K
• Power Supply: 12–30 VDC
• Detection Range: Up to 5 ft (1.5 m)
• Sensitivity: 10 levels (0–9)
• Operating Temperature: -40°C to 82°C

The LRS Loop Replacement System from EMX Industries provides a cost-effective, high-performance alternative to traditional loop detection systems. Ideal for commercial gates, parking facilities, secured perimeters, and traffic control environments, it offers simplified installation, superior reliability, and intelligent detection features trusted by access control professionals across the USA.
