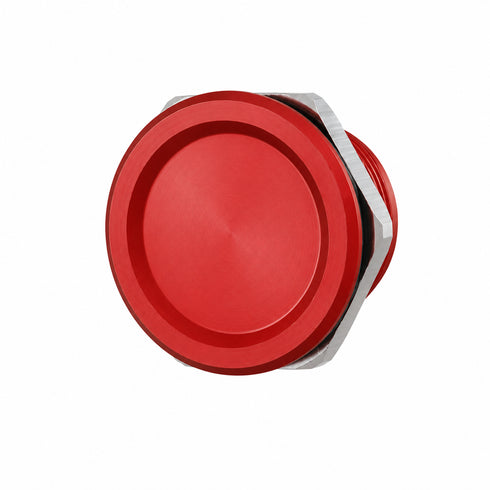

PX-13R Piezo Exit Switch Thread Red Weather Resistant Access Control Button
PX 13R is a durable piezoelectric exit switch designed for access control, door automation, and electrical control applications. Featuring a red illuminated style and solid anodized aluminum alloy construction, it delivers exceptional reliability with more than 20 million activation cycles. The switch requires no external power supply and provides a normally open open collector transistor output. Suitable for indoor and outdoor installations, its IP68 rated enclosure offers strong protection against dust, moisture, and harsh environmental conditions while maintaining consistent performance.
- Piezoelectric technology supports over 20 million activations
- No external power supply required for operation
- Normally open open collector transistor output
- IP68 rated for indoor and outdoor environments
- Anodized aluminum alloy housing with red finish
Piezoelectric pushbutton designed for use as an exit switch with Rosslare and third-party access control systems, door automation, and other electrical devices.
Utilizes advanced piezoelectric technology with no mechanical moving parts, delivering exceptional durability and reliability.
Offers an extended operational lifespan exceeding 20 million activation cycles, minimizing maintenance and replacement needs.
Requires no external power supply, simplifying installation and reducing wiring complexity.
Features a Normally Open (NO) open collector transistor output for seamless integration with compatible control systems.
Suitable for both indoor and outdoor installations, providing dependable performance in various environmental conditions.
Constructed from high-quality anodized aluminum alloy AL6061 for enhanced strength, corrosion resistance, and long-term durability.
Finished in a highly visible red color that makes the pushbutton easy to locate and operate in access control applications.
Compatible with Rosslare MPJ03 and MPM03 mounting plates, allowing flexible and secure installation options.
Engineered to operate reliably in extreme temperatures ranging from -40°C to +70°C.
Rated IP68 for superior protection against dust, moisture, and water ingress in demanding environments.
Compact design with dimensions of 19.5 mm depth, 29.5 mm diameter, and 22 mm thread length for easy integration into various mounting surfaces.
Ideal for commercial buildings, industrial facilities, gated entrances, and access-controlled environments requiring a robust exit button solution.
Provides dependable, maintenance-free operation that enhances the overall efficiency and longevity of access control systems.
| MODEL NAME | ROSSLARE PX-13R Piezo Switch Thread Red |
| SKU | PX-13R |
| PRODUCT TYPE | Piezoelectric Exit Pushbutton |
| MANUFACTURER | Rosslare |
| SWITCH TECHNOLOGY | Piezoelectric |
| APPLICATION | Exit control for access control systems |
| USE CASE | Door release and automation control |
| CONTROLLER COMPATIBILITY | Rosslare and third-party controllers |
| DOOR AUTOMATION SUPPORT | Yes |
| ELECTRICAL DEVICE COMPATIBILITY | Compatible with various electrical devices |
| SUPPLY VOLTAGE | No external power required |
| POWER CONSUMPTION | Self-powered piezoelectric operation |
| CONTACT TYPE | NO (Normally Open) |
| OUTPUT TYPE | Open Collector Transistor Output |
| SWITCH ACTION | Momentary Pushbutton |
| MECHANICAL PARTS | None |
| OPERATING PRINCIPLE | Solid-state piezoelectric sensing |
| SERVICE LIFE | More than 20 million cycles |
| DURABILITY | Ultra-long life expectancy |
| WEAR RESISTANCE | High due to absence of moving parts |
| MOUNTING PLATE COMPATIBILITY | Rosslare MPJ03 Mounting Plate |
| ALTERNATE MOUNTING PLATE | Rosslare MPM03 Mounting Plate |
| INSTALLATION TYPE | Threaded Mount |
| MOUNTING METHOD | Panel Mount |
| MATERIAL | Anodized Aluminum Alloy AL6061 |
| HOUSING MATERIAL | Aluminum Alloy |
| FINISH | Anodized |
| BUTTON COLOR | Red |
| VISUAL IDENTIFICATION | Red Pushbutton Surface |
| DEPTH | 19.5 mm |
| DIAMETER | 29.5 mm |
| THREAD LENGTH | 22 mm |
| DIMENSIONS | 19.5 × 29.5 × 22 mm (D × Ø × Thread) |
| FORM FACTOR | Compact Round Design |
| OPERATING TEMPERATURE | -40°C to +70°C |
| LOW TEMPERATURE RATING | -40°C |
| HIGH TEMPERATURE RATING | +70°C |
| ENVIRONMENTAL RATING | Indoor and Outdoor Use |
| OUTDOOR SUITABILITY | Yes |
| INDOOR SUITABILITY | Yes |
| PROTECTION CLASS | IP68 |
| WATER RESISTANCE | Protected against water ingress |
| DUST PROTECTION | Dust-tight enclosure |
| WEATHER RESISTANCE | Suitable for harsh weather conditions |
| CORROSION RESISTANCE | Anodized metal construction |
| IMPACT RESISTANCE | Durable metal housing |
| ACCESS CONTROL APPLICATION | Exit Request Device |
| ENTRY CONTROL SYSTEMS | Supported |
| DOOR RELEASE FUNCTION | Supported |
| COMMERCIAL INSTALLATIONS | Suitable |
| INDUSTRIAL INSTALLATIONS | Suitable |
| PUBLIC BUILDING USE | Suitable |
| SECURITY SYSTEM INTEGRATION | Yes |
| RELIABILITY | High Reliability Solid-State Design |
| MAINTENANCE REQUIREMENT | Minimal |
| MOVING COMPONENTS | None |
| EXPECTED PERFORMANCE | Consistent operation over extended lifespan |
| OPERATING MODE | Touch-Activated Piezoelectric Switch |
| CONSTRUCTION TYPE | Solid-State Electronic Switch |
| THREAD STYLE | Panel Mount Threaded Body |
| ACCESSORY SUPPORT | Compatible with Rosslare Mounting Accessories |
| PRODUCT CATEGORY | Access Control Accessory |
| SECURITY APPLICATION | Access Management Systems |
ROSSLARE PX-13R Piezo Switch Thread Red from Alfa Iris is a durable and maintenance-free piezoelectric pushbutton designed for access control, door automation, and exit request applications. Built without mechanical moving parts, the PX-13R delivers an exceptionally long operational lifespan of more than 20 million activation cycles, making it ideal for high-traffic commercial, industrial, and institutional environments.
Reliable Performance for Indoor and Outdoor Applications
The PX-13R utilizes advanced piezoelectric technology to provide dependable activation without requiring an external power source. Its rugged anodized aluminum alloy AL6061 construction and IP68-rated protection ensure reliable operation in harsh weather conditions, including rain, dust, humidity, and extreme temperatures. The switch is suitable for integration with Rosslare access control systems as well as third-party controllers.
- Piezoelectric technology with no mechanical wear
- Over 20 million activation cycles
- No external power required
- IP68-rated protection for indoor and outdoor use
- Compatible with Rosslare and third-party access control systems
Ideal for Access Control and Door Automation
Designed primarily as an exit pushbutton, the PX-13R can also be used with automatic doors, gate systems, and various electrical control devices. Its compact threaded design allows for easy installation, while compatibility with Rosslare MPJ03 and MPM03 mounting plates simplifies deployment in new and retrofit projects.
- Request-to-exit (REX) applications
- Commercial and industrial access control systems
- Automatic door and gate activation
- Building security and automation projects
For installers, security integrators, and facility managers seeking a high-durability piezo exit button, the ROSSLARE PX-13R provides dependable operation, weather-resistant construction, and seamless integration with modern access control solutions. Available through trusted USA access control and security equipment dealers.
Technical Specifications
- Model: PX-13R
- Type: Piezoelectric Pushbutton
- Output Contact: NO (Open Collector Transistor Output)
- Power Requirement: No External Power Required
- Material: Anodized Aluminum Alloy AL6061
- Color: Red
- Protection Rating: IP68
- Operating Temperature: -40°C to +70°C
- Dimensions (D × Diameter × Thread): 19.5 × 29.5 × 22 mm
- Mounting Compatibility: Rosslare MPJ03 and MPM03 Mounting Plates
- Service Life: More Than 20 Million Cycles
