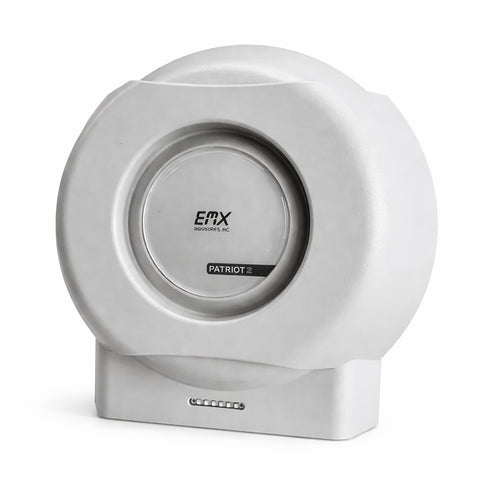

PATRIOT-E-TCP Long Range UHF RFID Reader Ethernet
This long range UHF RFID reader delivers reliable vehicle identification for secure access points. Designed for outdoor installations, it supports multiple controller interfaces, adjustable read power, onboard credential storage, and flexible networking options. The weather rated enclosure, wide voltage input, and configuration tools make it suitable for commercial and industrial sites requiring consistent performance and simple integration.
- Long range vehicle credential detection up to twenty five feet
- Ethernet connectivity with configurable reader settings
- Supports Wiegand serial relay and OSDP outputs
- Wide voltage input for flexible power installation
- Weather rated enclosure for outdoor environments
Offers long-range reading capability of 18-25 feet (5.4-7.6 meters), ideal for vehicle and access control applications.
Supports RS232, RS485, and OSDP protocols for versatile system integration.
Compatible with multiple Wiegand bit formats to ensure flexible connectivity with existing systems.
Features a circular polarized antenna with 7.5 dBi gain for enhanced signal reception and reliability.
Includes LED and sounder indicators to provide visual and audible feedback during operation.
Operates on a wide input voltage range from 12VDC to 48VDC, offering power flexibility in different setups.
Delivers maximum RF output power of 30dBm (1 Watt) within the 902–928 MHz UHF band for robust performance.
Comes equipped with a mounting bracket and power supply for straightforward installation.
Offers software-adjustable features such as dBm levels, LED timing, buzzer, relay control, and more.
Allows Ethernet and optional Wi-Fi configuration for seamless reader management and updates.
Capable of storing up to 500 authorized tag numbers for standalone access control without a separate controller.
Supports standard credential tags including window and hang tags, with optional Bluetooth compatibility.
Provides arming input and multiple output formats including Wiegand, RS-232, Relay, and RS-485/OSDP.
Rugged IP65-rated housing ensures reliable performance in harsh outdoor environments.
Designed to function in extreme temperatures ranging from -20°C to +70°C for year-round dependability.
| MODEL NAME | EMX Patriot-E.TCP Long Range UHF / RFID Reader - Ethernet |
| FREQUENCY | 902-928 MHz |
| MAX RF POWER | 30 dBm (1 Watt) |
| READ RANGE | 18-25 ft (5.4-7.6 m) |
| ANTENNA | Circular Polarized 7.5 dBi (Gain) |
| LED INDICATOR | Yes |
| SOUNDER INDICATOR | Yes |
| SUPPLY VOLTAGE | 9-48VDC |
| INCLUDED POWER SUPPLY | 110/240AC to 12VDC |
| MOUNTING BRACKET INCLUDED | Yes |
| MAX CURRENT | 1.82 A max @ 5VDC, 470 mA standby (trigger mode) |
| ADJUSTABLE READ RANGE | Yes |
| OUTPUTS TO CONTROLLER | Wiegand, RS-232, Relay Contact, RS-485 / OSDP |
| CONFIGURATION OPTIONS | RJ45 Ethernet Connector, WiFi |
| CREDENTIAL TYPES | Standard: Window Tag, Hang Tag |
| BLUETOOTH CAPABILITY | Optional |
| TAG STORAGE | Up to 500 Authorized Tags (5 site codes and 100 tags per site) |
| ARMING INPUT | Yes |
| FCC APPROVAL | Part 15 |
| OPERATING TEMPERATURE | -20°C to +70°C |
| DIMENSIONS | 8.78" x 7.87" x 2.36" |
| IP RATING | IP65 |
| SOFTWARE ADJUSTABLE FEATURES | dBm levels, LED timing, buzzer, buffer timing, Wiegand timing, relay, isolate facility codes |
EMX Patriot-E.TCP Long Range UHF / RFID Reader - Ethernet from Alfa Iris delivers advanced access control with long-range capability, reliable tag detection, and flexible installation options. Designed to operate in demanding conditions, it supports multiple Wiegand bit formats and offers communication via Ethernet, RS232, RS485, and OSDP protocols.
High-Performance Long-Range Reading
With a circular polarized antenna providing 7.5 dBi gain and a frequency range of 902–928 MHz, the EMX Patriot-E.TCP achieves a read range of up to 25 feet (7.6 m), depending on tag and site conditions. This makes it ideal for gated communities, commercial lots, and vehicle access points. It includes adjustable dBm levels and read ranges for optimized operation across diverse environments.
- 18–25 ft. read range with circular polarized antenna
- Supports Wiegand, RS-232, RS-485 / OSDP outputs
- LED and buzzer indicators for status feedback
- 9–48VDC input with included 12VDC power supply
- IP65 rated for weather resistance
Flexible Integration and Stand-Alone Capability
In addition to compatibility with standard access control systems, the EMX Patriot-E.TCP features the ability to store up to 500 authorized tag numbers directly on the reader, enabling stand-alone functionality without a controller. Configurable via Ethernet (RJ45) or optional Wi-Fi, it simplifies setup and integration into existing infrastructure.
- Stores 500 tags across 5 site codes
- Controllable LED, buzzer, relay, and timing settings
- Bluetooth credential capability (optional)
- Includes mounting bracket and test tag
- Arming input support for secure control logic
Security integrators and gate access professionals can rely on the EMX Patriot-E.TCP from Alfa Iris for dependable performance, flexible configuration, and reliable long-range RFID identification. Available through leading U.S. access control and automation suppliers.
Technical Specifications
- Model: Patriot-E.TCP
- Frequency: 902–928 MHz
- Antenna Gain: 7.5 dBi (circular polarized)
- Max RF Power: 30 dBm (1 Watt)
- Average Read Range: 18–25 feet
- Output Interfaces: Wiegand, RS-232, RS-485 / OSDP, Relay
- Communication: RJ45 Ethernet, optional Wi-Fi
- Supply Voltage: 9–48VDC (includes 110/240AC to 12VDC adapter)
- Current: 1.82A max @ 5VDC, 470mA standby
- Sound/LED Indicators: Yes
- Operating Temp: -20°C to +70°C
- Ingress Protection: IP65
- Dimensions: 8.78" x 7.87" x 2.36"
