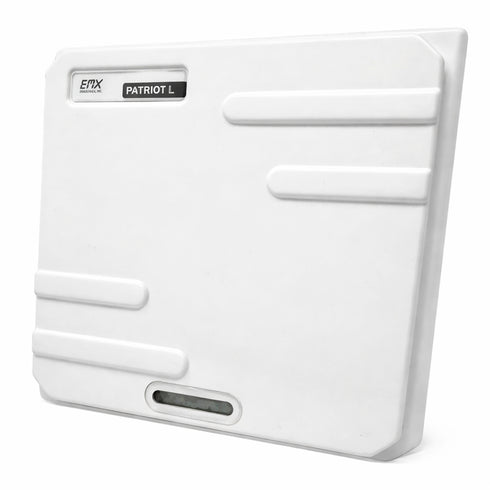

PATRIOT-L-TCP Long Range RFID TCP IP Gate Reader
This long range RFID access reader is designed for vehicle and gate control applications requiring reliable identification at extended distances. It supports multiple Wiegand formats and TCP IP communication, making it suitable for integration with modern access control systems. The weather resistant enclosure allows dependable outdoor operation, while visual and audible indicators confirm successful reads. With a wide power input range and long read capability, it fits commercial, industrial, and secured facility environments.
- Long range RFID reading up to 25 feet
- Supports multiple Wiegand output formats
- TCP IP communication for network integration
- Weather resistant housing rated for outdoor use
- Visual LED and audible sounder indicators
Supports multiple Wiegand formats, ensuring broad compatibility across various access control systems.
Offers a long read range of 18 to 25 feet, ideal for vehicle and gate access scenarios.
Utilizes TCP/IP communication protocols for seamless integration with modern networks.
Equipped with a linear 10dBi gain antenna for efficient and focused RFID tag reading.
Features LED and sounder indicators for real-time status feedback and ease of operation.
Operates using frequency hopping between 902 - 928 MHz to reduce interference and improve reliability.
Includes controllable LED timing and buzzer functions to suit specific site requirements.
Built to withstand harsh weather conditions with an IP65-rated enclosure and wide temperature range (-4°F to 158°F).
Stores up to 500 authorized tag numbers, supporting up to 5 site codes and 100 tags per site.
Comes with a 110/240AC to 12VDC power supply for versatile installation options.
Compatible with multiple voltage inputs ranging from 9 to 48VDC, offering flexible power integration.
FCC Part 15 approved, ensuring compliance with essential communication regulations.
Includes a mounting bracket for straightforward setup and secure installation.
Compact and durable design measuring 9.45" x 9.45" x 3.82", ideal for space-constrained applications.
Delivers up to 30dBm RF power output for strong signal transmission and enhanced read performance.
| MODEL NAME | Patriot-L-TCP |
| PRODUCT TYPE | Proximity Reader |
| MANUFACTURER | EMX Industries, Inc. |
| SUPPORTED FORMATS | 26-Bit Wiegand, Multi-Format |
| COMMUNICATION PROTOCOL | TCP/IP |
| READ RANGE | 18-25 Feet |
| TX/RX FREQUENCY | 902-928 MHz |
| MAX RF POWER | 30dBm |
| ANTENNA TYPE | Linear 10dBi Gain |
| LED INDICATOR | Yes |
| SOUNDER INDICATOR | Yes |
| POWER SUPPLY | 9-48VDC |
| INCLUDED POWER SUPPLY | 110/240AC to 12VDC |
| MAX CURRENT | 1.82A max @ 5VDC, 470mA in standby (trigger mode) |
| STORAGE CAPACITY | 500 Authorized Tag Numbers (5 Site Codes and 100 Tags) |
| RS232 PROTOCOL | Supported |
| LED/BUZZER TIMING CONTROL | Yes |
| FREQUENCY HOPPING | 902 - 928 MHz |
| FCC COMPLIANCE | Approved for Part 15 |
| OPERATING TEMPERATURE | -4°F to 158°F |
| DIMENSIONS | 9.45" x 9.45" x 3.82" |
| IP RATING | IP65 |
| MOUNTING BRACKET | Included |
| APPLICATION | Access control scenarios |
| WIRING METHOD | Supports multiple voltage inputs |
| RELAY | Built-in relay |
| PRICE (1 UNIT) | $1,718.68 |
| PRICE (10+ UNITS) | $1,685.19 |
| PRICE (30+ UNITS) | $1,585.65 |
EMX TRES Patriot-L-TCP Long Range RFID Reader from Alfa Iris delivers advanced access control with TCP/IP capability and extended read range. Designed for seamless integration into commercial security systems, it supports multi-format Wiegand protocols and includes a weather-resistant linear antenna for outdoor reliability. Ideal for vehicle gate access and large-scale secured perimeters, the Patriot-L-TCP ensures dependable operation across diverse environments.
Engineered for Long Range and Versatile Integration
The Patriot-L-TCP offers an impressive 18 to 25 feet read range, with frequency hopping between 902–928 MHz for interference-resistant communication. Equipped with both LED and sounder indicators, it provides immediate feedback for tag reads. Its durable design is rated IP65 for outdoor use and includes a built-in relay and flexible power input options, making it suitable for a variety of access control systems.
- Supports multiple Wiegand formats including 26-bit
- Weather-resistant IP65-rated housing for outdoor use
- Frequency hopping technology (902–928 MHz)
- Built-in LED and buzzer indicators for status feedback
- 18–25 feet average read range with 10dBi linear antenna
Reliable, Scalable, and Easy to Deploy
Operating with 9–48VDC input and included power supply (110/240VAC to 12VDC), the Patriot-L-TCP is equipped for versatile installations. It stores up to 500 authorized tags across five site codes and supports RS232 protocols. This makes it ideal for applications like vehicle gate automation, industrial access points, and secure commercial facilities.
- Vehicle entry gates and parking lots
- Commercial and industrial perimeter control
- Remote-access management for large facilities
Security integrators seeking high-performance long-range RFID readers can rely on the EMX TRES Patriot-L-TCP from Alfa Iris for robust, weatherproof, and scalable access control integration. Widely supported by leading USA access control and gate automation distributors.
Technical Specifications
- Model: Patriot-L-TCP
- Communication: TCP/IP, RS232
- TX/RX Frequency: 902–928 MHz
- RF Power: Max 30dBm
- Antenna: 10dBi linear
- Read Range: 18–25 feet
- Indicators: LED and buzzer
- Power Input: 9–48VDC (includes 110/240AC to 12VDC supply)
- Max Current: 1.82A @ 5VDC; 470mA standby
- Tag Capacity: 500 (100 tags x 5 site codes)
- Operating Temperature: -4°F to 158°F
- Dimensions: 9.45" x 9.45" x 3.82"
- Certifications: FCC Part 15 compliant
- Rating: IP65
