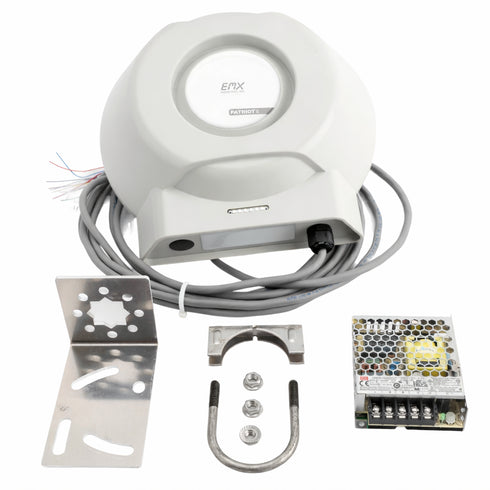

PATRIOT-E-BLE Long Range RFID Bluetooth Reader 18 to 25 Foot Range
The PATRIOT E BLE long range RFID reader delivers dependable vehicle access control with extended read capability from 18 to 25 feet. Operating within the 902 to 928 MHz frequency range, this unit features an integrated circular polarized antenna for consistent tag detection regardless of orientation. Designed for commercial and industrial environments, it supports multiple Wiegand formats, Bluetooth credentials, and advanced communication outputs. With weather resistant housing and flexible voltage input, it ensures reliable performance in demanding access control installations.
- Reads vehicle tags from 18 to 25 feet
- Integrated circular polarized 7.5 dBi antenna
- Supports Wiegand RS232 RS485 OSDP and relay outputs
- Bluetooth credential support with 500 tag storage capacity
- Weather resistant IP65 rated housing
Features an integrated circular polarized antenna that allows reliable tag reads regardless of vehicle tag orientation.
Delivers a long read range of 18 to 25 feet, making it ideal for vehicle access control applications.
Operates within the 902–928 MHz UHF frequency range for consistent and dependable RFID performance.
Supports multiple Wiegand formats, providing flexible compatibility with various access control systems.
Equipped with wireless Bluetooth connectivity for convenient remote access control and credential management.
Includes LED indicators and an audible sounder to clearly display system status and operational feedback.
Stores up to 500 tag numbers, supporting 5 site codes with 100 tags per site for organized access management.
Allows facility code isolation to enhance security and streamline credential control.
Provides a controllable relay with on/off options for customized system integration.
Compatible with Wiegand, RS-232, RS-485, OSDP standard, and relay interfaces for versatile connectivity.
Built with a weather-resistant IP65-rated enclosure for reliable outdoor performance in harsh environments.
Offers a wide operating temperature range from -4°F to 158°F for dependable use in extreme climates.
Supplied with a 110/240VAC to 12VDC power supply and supports 9–48VDC input for flexible installation.
FCC Part 15 approved and engineered for durable, high-performance vehicle tag reading in commercial and gated facilities.
:contentReference[oaicite:0]{index=0}| MODEL NAME | PATRIOT-E-BLE RFID Long Range Bluetooth Reader |
| PART NUMBER | PATRIOT-E-BLE |
| PRODUCT TYPE | Long Range RFID Proximity Reader |
| MANUFACTURER | EMX Industries, Inc. |
| APPLICATION | Vehicle Tag Access Control |
| TECHNOLOGY | UHF RFID with Bluetooth Connectivity |
| FREQUENCY RANGE | 902 – 928 MHz |
| RF BAND | UHF 900 MHz |
| MAX RF POWER | 30 dBm |
| READ RANGE | 18 – 25 Feet |
| READ RANGE TYPE | Adjustable / Variable |
| ANTENNA TYPE | Integrated Circular Polarized Antenna |
| ANTENNA GAIN | 7.5 dBi |
| ANTENNA ORIENTATION | Reads Tags Regardless of Orientation |
| BLUETOOTH SUPPORT | Yes |
| BLUETOOTH CREDENTIALS | Supported |
| WIEGAND SUPPORT | Multiple Wiegand Formats |
| WIEGAND OUTPUT | 26-Bit Wiegand |
| COMMUNICATION INTERFACE | Wiegand, RS-232, RS-485, OSDP, Relay |
| RS-232 SUPPORT | Yes |
| RS-485 SUPPORT | Yes |
| OSDP COMPATIBLE | Yes |
| RELAY OUTPUT | Controllable On/Off |
| RELAY CONTACT | Supported |
| LED INDICATOR | Yes |
| AUDIBLE SOUNDER | Yes |
| STATUS INDICATION | LED and Audible Feedback |
| TAG STORAGE CAPACITY | 500 Tag Numbers |
| SITE CODE STORAGE | 5 Site Codes |
| TAGS PER SITE | 100 Tags per Site |
| FACILITY CODE ISOLATION | Supported |
| NETWORK FEATURES | Extended Customizable Settings |
| POWER SUPPLY INCLUDED | 110/240VAC to 12VDC Converter |
| SUPPLY VOLTAGE RANGE | 9 – 48 VDC |
| INPUT VOLTAGE OPTIONS | 12VDC, 24VDC, 36VDC, 48VDC |
| MAX CURRENT DRAW | 1.82A Max @ 5VDC |
| STANDBY CURRENT | 470mA @ 5VDC (Trigger Mode) |
| ENCLOSURE RATING | IP65 Rated |
| WEATHER RESISTANCE | Weather-Resistant Design |
| OPERATING TEMPERATURE | -4°F to 158°F |
| REGULATORY COMPLIANCE | FCC Part 15 Approved |
| MOUNTING TYPE | Surface Mount |
| DIMENSIONS | 8.78" x 7.87" x 2.36" |
| CONSTRUCTION | Durable Industrial Housing |
| DESIGN TYPE | Long Range Vehicle Identification Reader |
| INSTALLATION ENVIRONMENT | Indoor / Outdoor |
| COMPATIBLE CONTROLLERS | Access Control Systems with Wiegand or OSDP |
| OUTPUT SIGNALS | Wiegand, RS-232, RS-485, Relay Contact |
| OPERATING MODE | Vehicle Tag Detection |
| CREDENTIAL TYPE | RFID Tags and Bluetooth Credentials |
| TAG COMPATIBILITY | UHF Vehicle Tags |
| REMOTE ACCESS | Bluetooth Enabled |
| SYSTEM FEEDBACK | Visual and Audible Confirmation |
| FREQUENCY STABILITY | Operates Within 902–928 MHz Band |
| ACCESS CONTROL INTEGRATION | Multi-Protocol Support |
| INDUSTRY APPLICATION | Commercial and Industrial Gate Access |
| SKU | PATRIOT-E-BLE |
EMX TRES Patriot Long Range RFID Wireless Bluetooth Reader - PATRIOT-E-BLE from EMX Industries, Inc. is engineered for high-performance vehicle access control in commercial and industrial environments. Featuring a powerful 18 to 25 foot read range, this long-range UHF reader delivers dependable identification for gated communities, parking facilities, distribution centers, and secured perimeters. Designed for reliability, it operates within the 902–928 MHz frequency range and meets FCC Part 15 regulatory standards.
Built for Long-Range Performance and Outdoor Durability
The PATRIOT-E-BLE includes an integrated circular polarized 7.5 dBi antenna that allows consistent tag reads regardless of vehicle tag orientation. Its rugged, IP65-rated weather-resistant housing ensures dependable operation in rain, dust, and extreme temperatures ranging from -4°F to 158°F. Equipped with LED indicators and an audible sounder, installers and technicians receive clear visual and audible system status feedback during operation.
- 18'–25' adjustable long-range read capability
- Integrated circular polarized antenna (7.5 dBi gain)
- UHF 900 MHz with Bluetooth wireless connectivity
- IP65-rated weather-resistant enclosure
- LED indicator and audible sounder for status notification
Advanced Connectivity and Flexible Integration
This version of the Patriot E supports 26-Bit Wiegand along with multiple Wiegand formats and advanced communication options including RS-232, RS-485, OSDP protocol, and relay interface outputs. Bluetooth capability enables secure wireless credential usage and remote access control functionality. The unit can store up to 500 tag numbers (5 site codes with 100 tags per site) and allows facility code isolation for enhanced security management.
- Supports Wiegand, RS-232, RS-485, OSDP, and relay outputs
- Bluetooth credential compatibility
- Stores up to 500 tag numbers
- Relay control with selectable on/off operation
- Facility code isolation for enhanced site security
Designed for seamless integration with modern access control systems, the EMX TRES Patriot-E-BLE operates on 9–48VDC and includes a 110/240VAC to 12VDC power supply. With robust RF performance (30 dBm max RF power) and dependable long-range vehicle tag detection, it is an ideal solution for automated gates, secured parking access, commercial facilities, and industrial entry points.
Technical Specifications
- Model: PATRIOT-E-BLE
- Frequency Range: 902–928 MHz (UHF 900 MHz)
- Max RF Power: 30 dBm
- Read Range: 18–25 Feet
- Antenna: Circular Polarized, 7.5 dBi Gain
- Outputs: Wiegand, RS-232, RS-485 / OSDP, Relay Contact
- Supply Voltage: 9–48VDC
- Included Power Supply: 110/240VAC to 12VDC
- Max Current: 1.82A @ 5VDC (470mA standby trigger mode)
- Environmental Rating: IP65
- Operating Temperature: -4°F to 158°F
- Regulatory Compliance: FCC Part 15 Approved
- Dimensions: 8.78" x 7.87" x 2.36"
- Application: Long-range vehicle RFID access control
