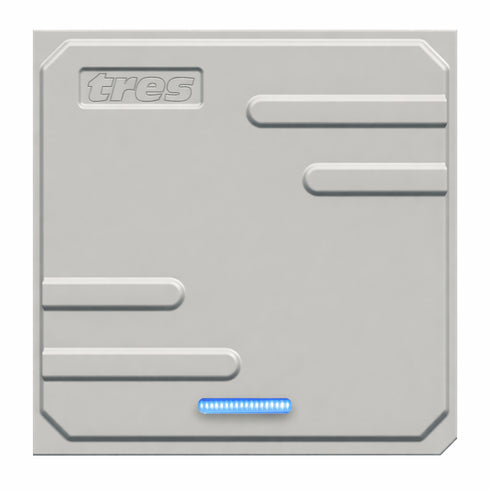

PATRIOT-L-BLE Long Range RFID Bluetooth Reader 26 Bit Wiegand
The Patriot L BLE long range RFID reader delivers reliable vehicle and gate access control with extended read distances and flexible connectivity. Designed for demanding environments, this unit supports multiple Wiegand formats and Bluetooth communication for seamless integration into modern access systems. With adjustable LED and buzzer indicators, frequency hopping technology, and durable weather resistant housing, it ensures consistent performance in commercial and industrial applications. Its linear antenna provides strong signal coverage, while wide voltage input compatibility simplifies installation across various security setups :contentReference[oaicite:0]{index=0}
- Long range RFID reading up to 25 feet
- Supports 26 bit Wiegand and multi format output
- Bluetooth communication with frequency hopping technology
- Weather resistant IP65 rated enclosure
- Wide 9 to 48VDC input with included power supply
Supports multiple 26-Bit Wiegand formats, providing flexible integration with a wide range of access control systems.
Utilizes Bluetooth communication protocols for enhanced wireless connectivity and modern credential management.
Delivers an extended read range of 18 to 25 feet, ideal for vehicle access and long-range gate entry applications.
Operates on a TX/RX frequency range of 902–928 MHz with frequency hopping technology for reliable signal performance.
Features a high-performance linear 10dBi gain antenna to maximize read accuracy and consistency.
Equipped with both LED and sounder indicators to provide clear visual and audible access feedback.
Offers adjustable timing for LED, buffer, and Wiegand output to accommodate customized installation requirements.
Provides controllable LED timing and buzzer settings for tailored user notifications.
Supports supply voltage from 9–48VDC and includes a 110/240VAC to 12VDC power supply for installation flexibility.
Stores up to 500 authorized tag numbers, including 5 site codes and 100 tags per site, for secure credential management.
Built with a weather-resistant IP65-rated enclosure, designed to withstand harsh outdoor environments.
FCC Part 15 approved and engineered to operate in temperatures ranging from -4°F to 158°F for dependable year-round performance.
Includes a mounting bracket for straightforward and secure installation in various access control scenarios.
Delivers maximum RF power of 30dBm with efficient current consumption, ensuring strong performance and energy efficiency.
Compact design measuring 9.45" x 9.45" x 3.82", allowing for convenient placement in commercial and industrial gate systems.
:contentReference[oaicite:0]{index=0}| MODEL NAME | PATRIOT-L-BLE RFID Long Range Reader |
| PART NUMBER | PATRIOT-L-BLE |
| PRODUCT TYPE | RFID Long Range Bluetooth Reader |
| MANUFACTURER | EMX Industries, Inc. |
| COMMUNICATION PROTOCOL | Bluetooth |
| WIEGAND FORMAT | 26-Bit Wiegand, Multi-Format Compatible |
| RS232 SUPPORT | Yes |
| OPERATING FREQUENCY | 902 – 928 MHz (Frequency Hopping) |
| TX/RX FREQUENCY | 902 – 928 MHz |
| MAX RF POWER | 30 dBm |
| READ RANGE | 18 – 25 Feet (Average) |
| ANTENNA TYPE | Linear Antenna |
| ANTENNA GAIN | 10 dBi |
| LED INDICATOR | Yes (Controllable Timing) |
| SOUNDER INDICATOR | Yes (Built-in Buzzer with Adjustable Timing) |
| LED TIMING CONTROL | Adjustable |
| BUFFER TIMING | Configurable |
| WIEGAND TIMING | Configurable |
| BUILT-IN RELAY | Yes |
| RELAY FUNCTION | Access Control Integration |
| AUTHORIZED TAG STORAGE | Stores up to 500 Authorized Tag Numbers |
| SITE CODE CAPACITY | 5 Site Codes |
| TAG CAPACITY PER SITE | Up to 100 Tags per Site Code |
| SUPPLY VOLTAGE | 9 – 48 VDC |
| INPUT VOLTAGE OPTIONS | 12VDC, 24VDC, 36VDC, 48VDC |
| INCLUDED POWER SUPPLY | 110/240 VAC to 12 VDC |
| MAX CURRENT DRAW | 1.82 A Max @ 5 VDC |
| STANDBY CURRENT | 470 mA @ 5 VDC (Trigger Mode) |
| OPERATING TEMPERATURE | -4°F to 158°F |
| ENCLOSURE RATING | IP65 Rated |
| WEATHER RESISTANCE | Weather-Resistant Design |
| DIMENSIONS | 9.45" x 9.45" x 3.82" |
| MOUNTING BRACKET | Included |
| FCC COMPLIANCE | Approved Under FCC Part 15 |
| APPLICATION | Gate and Access Control Systems |
| INSTALLATION TYPE | Wall or Post Mount |
| INDUSTRY USE | Commercial and Industrial Access Control |
| COMPATIBILITY | Compatible with Multiple Wiegand Formats |
| OPERATING MODE | Long Range RFID Identification |
| ENCLOSURE MATERIAL | Durable Industrial Housing |
| FREQUENCY HOPPING | Yes |
| DBM LEVELS | Up to 30 dBm |
| COMMUNICATION OUTPUT | Wiegand / RS232 |
| POWER INPUT RANGE | Wide-Range DC Input (9-48VDC) |
| ENVIRONMENTAL RATING | Outdoor Rated |
| STATUS INDICATION | LED and Audible Sounder |
| SECURITY FUNCTION | Authorized Tag Verification |
| CONFIGURATION OPTIONS | Adjustable Timing and Output Settings |
| TYPICAL INSTALLATIONS | Vehicle Gates, Parking Facilities, Controlled Entry Points |
| PRODUCT CATEGORY | Proximity Reader |
EMX TRES Patriot RFID Bluetooth Long Range Reader – PATRIOT-L-BLE from EMX Industries, Inc. is a high-performance, multi-format RFID reader designed for reliable long-range access control. Featuring an impressive 18 to 25-foot read range and support for 26-Bit Wiegand and multiple Wiegand formats, this weather-resistant reader is ideal for vehicle access points, gated communities, commercial facilities, and industrial sites. With integrated Bluetooth communication protocols, frequency hopping technology, and a durable IP65-rated enclosure, the Patriot-L-BLE delivers dependable performance in demanding environments.
Long-Range Performance with Advanced Communication
The PATRIOT-L-BLE operates within a 902–928 MHz frequency range utilizing frequency hopping for enhanced signal reliability and interference resistance. Equipped with a 10dBi linear antenna and up to 30 dBm RF power, this reader ensures consistent long-distance credential detection. It supports RS232 protocols and Bluetooth communication, offering flexible integration with modern access control systems.
- 18'–25' average read range
- Supports 26-Bit and multiple Wiegand formats
- Bluetooth and RS232 communication protocols
- 902–928 MHz frequency hopping technology
- Maximum RF output power: 30 dBm
- Linear 10dBi gain antenna included
Durable Design for Outdoor Installations
Engineered for exterior applications, the Patriot-L-BLE features an IP65-rated weather-resistant housing capable of operating in temperatures ranging from -4°F to 158°F. Visual and audible indicators—including a configurable LED and built-in sounder—provide immediate credential feedback. Adjustable timing for LED, buffer, and Wiegand output allows installers to tailor system performance to site requirements.
- IP65-rated enclosure for outdoor use
- Operating temperature: -4°F to 158°F
- LED and sounder indicators with adjustable timing
- Controllable LED timing and buzzer settings
- FCC Part 15 approved
Flexible Power and System Integration
The PATRIOT-L-BLE supports a wide 9–48VDC input range and includes a 110/240VAC to 12VDC power supply for convenient installation. A built-in relay enhances integration with gate operators and access control panels. The unit can store up to 500 authorized tag numbers (5 site codes with 100 tags each), making it suitable for medium to large facilities requiring controlled vehicle entry.
- Input voltage: 9–48VDC
- Included 110/240VAC to 12VDC power supply
- Built-in relay for access control integration
- Stores 500 authorized tag numbers
- Max current: 1.82A @ 5VDC (470mA standby trigger mode)
- Dimensions: 9.45" x 9.45" x 3.82"
- Includes mounting bracket
Ideal Applications
- Gated communities and residential developments
- Commercial parking facilities
- Industrial vehicle entry points
- Apartment complexes and secured campuses
Security professionals seeking a reliable long-range RFID reader with Bluetooth capability will find the EMX TRES Patriot PATRIOT-L-BLE to be a cost-effective and powerful solution for modern access control installations.
Technical Specifications
- Model: PATRIOT-L-BLE
- Manufacturer: EMX Industries, Inc.
- Technology: RFID with Bluetooth Communication
- Output Format: 26-Bit Wiegand (Multi-Format Compatible)
- Frequency: 902–928 MHz
- Max RF Power: 30 dBm
- Read Range: 18'–25'
- Antenna: Linear 10dBi Gain
- Supply Voltage: 9–48VDC
- Operating Temperature: -4°F to 158°F
- Environmental Rating: IP65
- Tag Capacity: 500 Authorized Tags
- Dimensions: 9.45" x 9.45" x 3.82"
