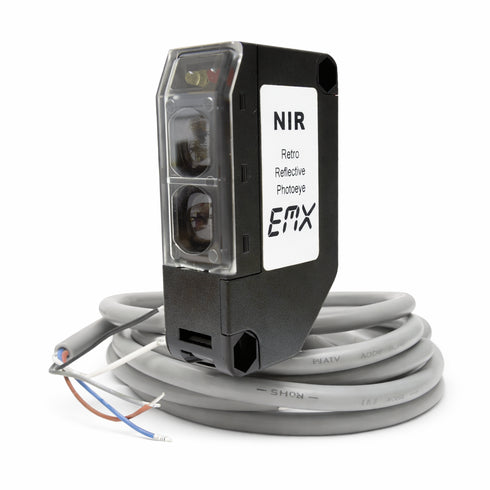

EMX-5200-2 NIR Retro Reflective Photo Eye Safety Sensor
This retro reflective photo eye safety sensor provides dependable obstruction detection for commercial doors, gates, and barrier systems. Its compact housing supports quick installation and reliable outdoor operation with watertight protection. A long detection range, adjustable sensitivity, and clear LED indicators help ensure accurate alignment and consistent performance. Designed for flexible power input, it integrates easily into many access control and automation setups where safety and smooth operation are critical.
- Retro reflective safety sensor for doors, gates, and barriers
- Up to 30 feet detection range for dependable protection
- Watertight housing suitable for outdoor installations
- Wide voltage compatibility with low current draw
- Compact design with mounting hardware and indicators included
Provides a reliable reversing sensor solution ideal for commercial overhead doors, gates, and parking barriers.
Retro-reflective design ensures accurate detection with a maximum range of up to 30 feet.
Includes a 6-foot cord for flexible and convenient installation placement.
Features watertight packaging, enabling dependable performance in outdoor environments.
Comes with mounting bracket and hardware, simplifying the installation process.
Equipped with two LED indicators for enhanced visibility and operational feedback.
Offers sensitivity adjustment for customized detection settings tailored to specific applications.
Compact dimensions of 2.5" high, 1.5" deep, and 0.75" wide support versatile mounting options.
Operates with a wide voltage input range from 12V AC/DC to 240V AC for broad system compatibility.
Low current draw of just 40mA ensures energy-efficient operation.
Engineered for durability and long-term use in demanding commercial environments.
Supports seamless integration into various safety systems and gate automation setups.
Ideal for both new installations and as a replacement component in existing setups.
| MODEL NAME | EMX NIR photo eye [EMX-5200-2] |
| DETECTION RANGE | 30 feet |
| CORD LENGTH | 6 feet |
| VOLTAGE RANGE | 12 Volt AC/DC to 240 Volt AC |
| CURRENT DRAW | 40mA |
| DIMENSIONS (H x D x W) | 2.5" x 1.5" x 0.75" |
| INSTALLATION TYPE | Bracket with mounting hardware included |
| OPERATION MODE | Reversing sensor |
| APPLICATION | Commercial overhead doors, gates, parking barriers |
| OUTDOOR RATING | Watertight construction |
| LED INDICATORS | 2 LED indicators |
| SENSITIVITY ADJUSTMENT | Yes |
| MOUNTING HARDWARE | Included |
| WEIGHT | Not specified |
| POWER SUPPLY | 12V AC/DC to 240V AC |
| CONSTRUCTION | Compact and durable |
| INDOOR/OUTDOOR | Suitable for both, optimized for outdoor |
| REFLECTOR | Included |
| TYPE | Retro-reflective photoeye |
| REVIEW | Rated 5 stars - Excellent unit, small and compact, works very well (Terry Scaffaro, Aug 27, 2012) |
EMX NIR Photo Eye [EMX-5200-2] from EMX Industries is a high-performance retro-reflective photoeye designed for safety in commercial environments. Ideal for use with commercial overhead doors, gates, and parking barriers, this compact safety sensor ensures reliable reversing functionality and easy installation.
Durable and User-Friendly Design
The EMX NIR Photo Eye features a rugged, watertight construction suitable for outdoor applications. Its compact form factor simplifies integration, while the included mounting hardware and LED indicators make setup intuitive. A 6-foot cord and a sensitivity adjustment dial add to its flexibility and operational ease.
- Retro-reflective photoeye for commercial safety applications
- Watertight housing for outdoor durability
- 30-foot detection range with high sensitivity
- Bracket and mounting hardware included
- Two LED indicators for alignment and status
- Sensitivity adjustment for fine-tuning
Flexible and Efficient Power Options
Compatible with a wide range of systems, the NIR sensor operates on 12V AC/DC to 240V AC and draws only 40mA. Measuring just 2.5" high, 1.5" deep, and 0.75" wide, it fits easily in compact spaces without sacrificing performance. It’s a dependable choice for contractors and facilities prioritizing long-term safety and efficiency.
- Voltage range: 12V AC/DC to 240V AC
- Low current draw: 40mA
- Compact size for tight installations
- Reliable performance in varying weather conditions
Choose the EMX NIR Photo Eye [EMX-5200-2] for a compact, durable, and high-performing safety sensor tailored for demanding commercial settings.
Technical Specifications
- Model: EMX-5200-2
- Detection Range: 30 feet
- Cord Length: 6 feet
- Indicators: 2 LEDs for alignment and status
- Adjustment: Sensitivity control
- Dimensions: 2.5" H x 1.5" D x 0.75" W
- Voltage: 12V AC/DC to 240V AC
- Current: 40mA
- Mounting: Bracket and hardware included
- Construction: Watertight for outdoor use
