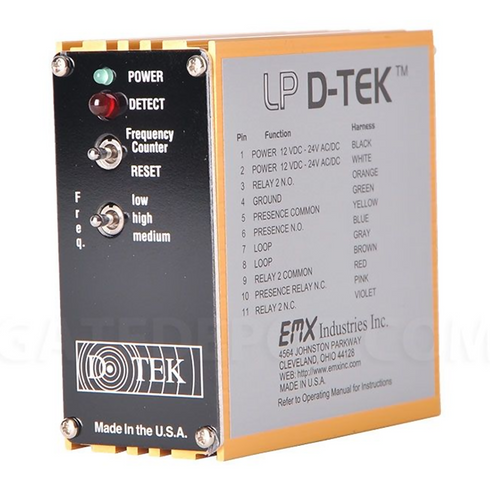

EMX-2500-1 LP D-TEK Low Power Vehicle Loop Detector for Solar and Gate Systems
The LP D-TEK low power vehicle loop detector is engineered for applications requiring minimal energy consumption and dependable vehicle detection. With extremely low current draw, it is ideal for solar powered systems and installations where multiple accessories share one power source. The unit supports fail safe and fail secure operation, includes surge protection, and provides dual relay outputs for flexible system integration in gate and door control environments.
- Ultra low power consumption ideal for solar powered installations
- Fail safe and fail secure operation for flexible system design
- Integrated surge protection for enhanced reliability
- Dual relay outputs support multiple control functions
- Durable aluminum housing with built in loop diagnostics
Operates with an ultra-low current draw of 9 mA in both standby and detect modes, making it ideal for solar-powered applications.
Reduces overall energy costs by consuming significantly less power than traditional detectors.
Supports both fail safe and fail secure modes for flexible safety configuration.
Includes built-in surge protection to guard against voltage spikes and electrical surges.
Equipped with a loop isolation transformer to prevent interference and enhance signal integrity.
Features a built-in loop conditioner for improved loop signal stability and performance.
Constructed with an aluminum RF shield housing to minimize electromagnetic interference.
Offers loop diagnostics and a frequency counter to assist with installation and maintenance.
Comes with two output relays (1 Amp, 30 VDC) for versatile signal handling.
Automatically tunes upon reset or power-up, ensuring quick and accurate setup.
Adapts to environmental changes with automatic tracking for consistent performance.
Compact design with anodized aluminum housing enhances durability and resists corrosion.
Wide operating temperature range from -40°F to 180°F allows for deployment in harsh environments.
Connector uses an 86CP11 11-pin male interface for reliable electrical connections.
Compatible with loop inductance range from 20 – 2000 uH with a Q-factor of 5 or higher.
| MODEL NAME | LP D-TEK Low-Power Vehicle Loop Detector |
| PART NUMBER | EMX-2500-1 |
| CURRENT DRAW | 9 mA standby and detect modes |
| POWER SUPPLY | 12 – 24 Volts AC/DC |
| CURRENT CONSUMPTION | < 9 mA |
| OPERATING TEMPERATURE | -40°F to 180°F |
| SURGE PROTECTION | Zener Diode / MOV |
| RELAY OUTPUT | 2 relays, 1 Amp 30 VDC |
| LOOP INPUT | Transformer isolation, lightning and transient protection |
| LOOP INDUCTANCE RANGE | 20 – 2000 uH Q-factor of 5 or higher |
| TUNING | Automatic on reset or power up |
| TRACKING | Automatic for environmental changes |
| SIZE | Height 3.25” (83mm), Width 2.56” (40mm), Length 3.65” (90mm) |
| HOUSING | Extruded Anodized Aluminum |
| CONNECTOR | 86CP11 11 pin male |
| OPERATION MODES | Fail safe and fail secure |
| LOOP DIAGNOSTICS | Yes |
| FREQUENCY COUNTER | Yes |
| LOOP CONDITIONER | Built-in |
| RF SHIELD | Aluminum |
LP D-TEK Low-Power Vehicle Loop Detector from EMX is engineered for applications where minimal energy consumption is critical. With an ultra-low 9 mA current draw, it is ideal for solar-powered systems and installations requiring multiple accessories on a shared power source. The LP D-TEK supports both fail safe and fail secure modes, delivering reliable performance in diverse gate and door control scenarios.
Energy-Efficient and Solar-Ready
Designed with energy efficiency in mind, the LP D-TEK operates reliably in extreme temperatures from -40°F to 180°F and includes advanced features like surge protection, loop diagnostics, and a built-in loop conditioner. Its rugged, anodized aluminum housing ensures durability in outdoor installations, while its transformer-isolated loop input protects against lightning and transients.
- Low 9 mA current draw in standby and detect modes
- Surge protection with Zener Diode / MOV
- Loop isolation transformer and built-in conditioner
- Dual relays for enhanced control options
- Frequency counter and automatic tuning
- Extruded anodized aluminum RF shield housing
Compact and Compatible
Operating on 12–24 Volts AC/DC, the LP D-TEK is compatible with most gate and door operator systems. Its compact footprint and 11-pin male connector simplify installation in tight spaces. The detector also includes automatic environmental tracking, making it a reliable choice for long-term outdoor applications.
- Gate and door automation systems
- Solar-powered access control installations
- Commercial and industrial entry points
Installers seeking low-power, high-performance vehicle loop detectors will find the LP D-TEK from EMX a dependable solution that balances efficiency, protection, and ease of use for demanding access control environments.
Technical Specifications
- Model: LP D-TEK (EMX-2500-1)
- Power Input: 12 – 24 Volts AC/DC
- Current Consumption: < 9 mA
- Operating Temperature: -40°F to 180°F
- Surge Protection: Zener Diode / MOV
- Output Relays: 2 (1 Amp @ 30 VDC)
- Loop Input: Transformer isolation with lightning protection
- Inductance Range: 20 – 2000 µH (Q-factor ≥ 5)
- Tuning: Automatic on power-up/reset
- Tracking: Automatic environmental adjustment
- Dimensions: 3.25” H x 2.56” W x 3.65” L
- Housing: Extruded anodized aluminum
- Connector: 86CP11 11-pin male
