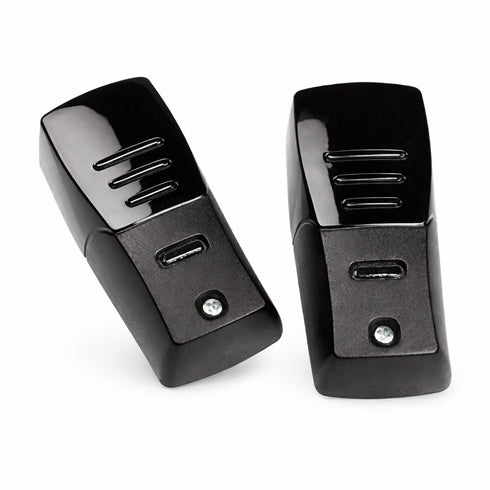

EMX-1500-2 BPE-50 Battery Powered Thru Beam Photo Eye
This battery powered thru beam photo eye provides reliable obstacle detection for gates and garage doors. Featuring a compact housing, adjustable alignment up to ninety degrees, and energy saving operation, it supports wired or battery power for flexible installation. With a fifty foot operating range, fast response times, and durable weather resistant construction, it is designed for consistent performance in residential and light commercial access control applications.
- Thru beam safety sensor with up to fifty foot detection range
- Battery powered design with expected two year battery life
- Ninety degree horizontal adjustment for easy alignment
- Fast detection and reset response for gate protection
- Weather resistant housing suitable for outdoor installations
Offers a detection range of up to 50 feet, making it ideal for both residential and commercial gate and garage door applications.
Utilizes a thru-beam photo eye configuration for precise and reliable object detection between transmitter and receiver.
Features 90° horizontal adjustment to the left or right, allowing flexible installation alignment.
Includes an energy-efficient power save option to extend battery life and reduce operational costs.
Supports dual power options: 12–24 VDC/24 VAC or two included 3.6-volt lithium batteries with a 2-year expected life.
Employs a red LED detection indicator for clear and immediate visual feedback during operation.
Operates reliably in a wide temperature range of -20°C to 55°C, suitable for outdoor use.
Boasts an environmental protection rating of IP65, offering resistance to dust and water ingress.
Incorporates a compact and durable housing made from PA6 with 30% fiberglass reinforcement for rugged environments.
Provides fast detection (<30 ms) and reset delay (<120 ms), ensuring responsive performance.
Utilizes a terminal block connector and 2 Form C DPST relay contacts rated at 0.5A for versatile wiring configurations.
Detection angle of ±5% allows for minor alignment variances without compromising accuracy.
Jumper-selectable sensitivity on the receiver enhances customization to suit various gate setups.
Comes with a 2-year limited manufacturer warranty, ensuring product reliability and support.
Proudly made in the USA, meeting high manufacturing and quality standards.
| MODEL NAME | EMX 1500-2 BPE-50 Thru-Beam Photo Eye |
| CONFIGURATION | Thru beam |
| POWER SUPPLY | 12–24 VDC / 24 VAC or 2× 3.6V Lithium Batteries (transmitter) |
| EXPECTED BATTERY LIFE | Up to 2 years |
| CURRENT DRAW | Not specified |
| RELAY TYPE | 2 Form C DPST contact, 0.5A @ 24VDC / 120VAC |
| TEMPERATURE RANGE | -20°C to 55°C |
| WAVELENGTH | 880 nm |
| FREQUENCY | 787 Hz |
| ENVIRONMENTAL RATING | IP65 |
| DETECT INDICATOR | Red LED |
| CONNECTOR | Terminal block |
| RELAY CONTACT | 0.5 Amp |
| HOUSING MATERIAL | PA6 30% FG |
| DIMENSIONS | H 4.4in (112mm) × W 2.05in (52mm) × D 1.3in (33mm) |
| RANGE | Up to 50 feet |
| DETECTION ANGLE | ± 5% |
| SENSITIVITY | Adjustable via Jumper J1 on receiver |
| DETECTION DELAY | < 30 ms |
| RESET DELAY | < 120 ms |
| ADJUSTABILITY | 90° left or right |
| POWER SAVE OPTION | Yes, energy efficient |
| COUNTRY OF ORIGIN | USA |
| WARRANTY | 2-Year Limited Manufacturer Warranty |
EMX 1500-2 BPE-50 Thru-Beam Photo Eye from EMX delivers reliable and energy-efficient object detection for gate and garage door safety systems. Featuring a 50-foot detection range and a thru-beam configuration, this compact sensor is ideal for both residential and commercial installations where precise alignment and durability are required.
Energy Efficient and Easy to Install
The BPE-50 includes a battery-powered option using two 3.6V lithium batteries (included), offering up to 2 years of battery life with power-saving features. A 90° left or right adjustment simplifies alignment during installation, and the device is housed in a rugged, weather-resistant enclosure rated at IP65, ensuring dependable performance in outdoor environments.
- 50 ft detection range
- Thru-beam configuration for accurate detection
- Battery powered (2 x 3.6V lithium batteries included)
- Up to 2 years of expected battery life
- Energy-saving mode for extended performance
- 90° horizontal adjustment for flexible mounting
Reliable Operation in Any Weather
Designed to operate in temperatures ranging from -20°C to 55°C, the EMX 1500-2 is perfect for all climates. The red LED indicator provides immediate detection feedback, while the compact housing makes it suitable for tight installation spaces. It connects via terminal block and includes Form C DPST relays rated at 0.5A.
- Temperature range: -20°C to 55°C
- Red LED detection indicator
- Wavelength: 880 nm | Frequency: 787 Hz
- Detection Angle: ±5%
- Detection delay: < 30 ms | Reset delay: < 120 ms
- Durable PA6 30% FG housing material
Engineered and Made in the USA, the EMX 1500-2 BPE-50 offers a dependable and simple photoeye solution for gate and garage door safety. Backed by a 2-year limited warranty, it’s a trusted choice for installers seeking durability, efficiency, and precision.
Technical Specifications
- Model: EMX-1500-2 BPE-50
- Power Supply: 12–24 VDC / 24 VAC or 2 x 3.6V Lithium Batteries
- Current Draw: Low, energy-efficient design
- Relay: 2 Form C DPST, 0.5A @ 24VDC / 120VAC
- Environmental Rating: IP65 (weather-resistant)
- Housing Material: PA6 30% FG
- Dimensions: 4.4in x 2.05in x 1.3in
