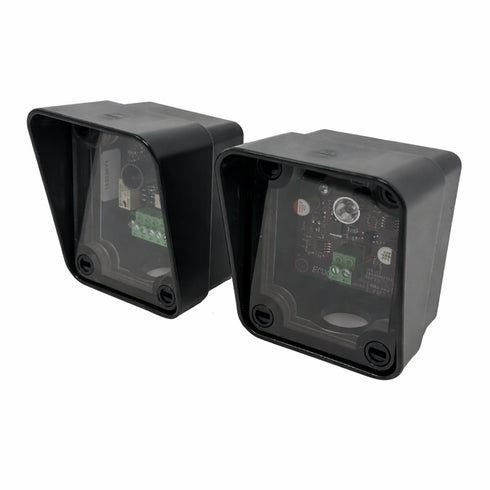

EMX-1250-1 IRB-4X2 Thru Beam Photoeye Kit Safety Sensor
The IRB-4X2 thru beam photoeye kit provides dependable safety detection for automated gates, doors, and barriers. Designed for simple alignment and fast setup, it supports long range operation and consistent performance in challenging outdoor conditions. With advanced filtering and temperature compensation, this kit helps reduce false triggers while maintaining reliable detection for reversing, safety, or opening functions across many access control applications.
- Thru beam safety sensor with up to 115 feet operating range
- Lens free design allows fast and simple alignment
- Electronic sunlight filtering reduces false activations
- IP65 rated enclosure suitable for outdoor installations
- Compatible with dry contact inputs on control boards
Thru beam configuration ensures precise and reliable detection across a 115 ft. operating range.
Kit includes transmitter, receiver, integrated protective hoods, and a removable lens sunshield for complete installation.
Lens-free design simplifies alignment, making it installer-friendly for both professionals and DIY users.
Built-in electronic sunlight filter enhances accuracy in bright outdoor environments.
Automatically compensates for temperature fluctuations to maintain consistent performance.
Effectively penetrates up to 70% obstruction from fog, steam, or spray, ensuring dependable function in various conditions.
Immune to vibration, reducing the risk of misalignment or sensor failure in high-movement areas.
Operates without the need for additional signal amplifiers or relay boxes, minimizing installation complexity.
Encased in a durable IP65-rated enclosure, offering reliable outdoor protection against dust and water ingress.
Acts as a safety, reversing, or opening device compatible with any control board that accepts dry contact input.
Replaces the previous IRB-4X model, providing an updated and more robust safety solution.
Supports easy and flexible installation with no special mounting tools required.
Suitable for use with garage doors, rolling doors, parking barriers, and more automated systems.
Not designed for use in UL325-compliant applications, making it ideal for general-purpose use.
| MODEL NAME | EMX IRB-4X2 Thru Beam Photoeye Kit [EMX-1250-1] |
| REPLACES | IRB-4X |
| CONFIGURATION | Thru beam |
| OPERATING RANGE | 115 ft. |
| INSTALLATION | Easy to install and set up |
| APPLICATION | Used with automatic gates, garage doors, rolling doors, parking barriers |
| COMPLIANCE | Not suitable for UL325 applications |
| ALIGNMENT | Lens-free design simplifies alignment |
| LIGHT FILTER | Electronic sunlight filter |
| TEMPERATURE COMPENSATION | Automatic |
| OBSTRUCTION PENETRATION | Penetrates up to 70% obstruction (fog, steam, spray) |
| VIBRATION RESISTANCE | Immune to vibration |
| SIGNAL AMPLIFIER | No external signal amplifiers required |
| RELAY BOX | No additional relay boxes required |
| ENCLOSURE RATING | IP65 |
| COMPATIBILITY | Works with any control board accepting dry contact input |
| KIT INCLUDES | Transmitter, receiver, integrated protective hoods, removable lens sunshield |
| USAGE TYPE | Safety, reversing, or opening device |
| ENVIRONMENT | Suitable for outdoor use |
| PRODUCT CONDITION | New |
| SKU | IRB-4X2 |
| PRICE | $212.79 |
EMX IRB-4X2 Thru Beam Photoeye Kit [EMX-1250-1] is a high-performance safety solution designed for reliable detection in automatic gates, garage doors, parking barriers, and more. A replacement for the IRB-4X, this kit includes a transmitter, receiver, integrated protective hoods, and a removable lens sunshield for added functionality.
Engineered for Versatility and Performance
With a thru beam configuration, the IRB-4X2 offers a generous 115 ft. operating range, ensuring dependable operation in a variety of settings. Its lens-free design simplifies alignment, while features like an electronic sunlight filter and automatic temperature compensation enhance performance in changing environments. The unit is capable of operating through 70% obstructions caused by fog, steam, or spray, making it suitable for harsh or industrial conditions.
- Thru beam configuration with 115 ft. range
- Lens-free alignment for simplified setup
- Electronic sunlight filtering
- Automatic temperature compensation
- Penetrates 70% visual obstruction (fog, steam, spray)
- Immune to vibration and shock
- Includes protective hoods and sunshield
- IP65-rated enclosure for outdoor durability
Reliable Safety Integration
The IRB-4X2 is compatible with any control board that accepts a dry contact input, making it an ideal choice for professional installers and DIY setups alike. It functions as a safety, reversing, or opening device, and is suitable for use with garage doors, rolling doors, parking gates, and other motorized equipment. Note: this product is not intended for use in applications requiring UL325 compliance.
- Compatible with dry contact input control boards
- Used for reversing, safety, or opening applications
- Ideal for gates, garage doors, and parking barriers
- Easy installation and alignment
- Not for UL325-compliant systems
Whether for residential, commercial, or industrial use, the EMX IRB-4X2 Photoeye Kit offers dependable operation, straightforward installation, and robust design—all from the trusted engineers at EMX Industries.
Technical Specifications
- Model: IRB-4X2 [EMX-1250-1]
- Configuration: Thru beam
- Operating Range: Up to 115 ft.
- Power Input: Compatible with dry contact systems
- Construction: IP65-rated enclosure
- Lens: None (lens-free design)
- Special Features: Sunlight filter, temperature compensation, vibration resistance
- Included: Transmitter, receiver, protective hoods, removable sunshield
