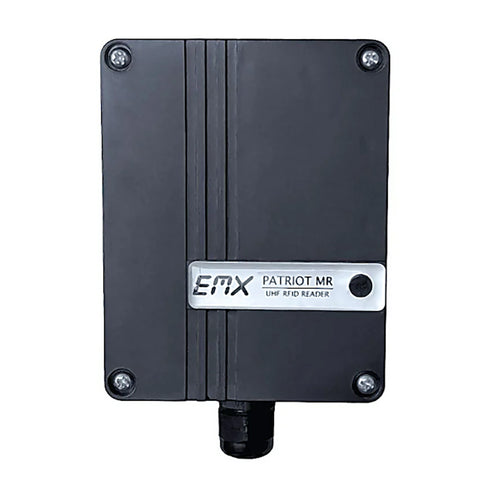

PATRIOT-MR Mini UHF Passive RFID Reader for Mid Range Access Control
The Patriot MR Mini UHF Passive RFID Reader is designed for reliable mid range credential detection in access control environments. It features adjustable RF power, integrated indicators, and dual Wiegand and RS 232 outputs for smooth system integration. With a compact housing and flexible mounting options, this reader is ideal for kiosks, gates, and tight installations requiring consistent short range performance.
Compact and space-saving design makes it suitable for installations with limited space.
Supports adjustable RF power (2-25 dBm), read interval, and Wiegand timing for optimized performance.
Integrated LED indicator and audible buzzer provide immediate feedback on tag reads.
Trigger input enables controlled and on-demand tag reading capabilities.
Operates effectively within a 6-10 ft. range, depending on tag type and environment.
Provides Wiegand (26-bit) and RS-232 outputs for seamless system integration.
Features a field-upgradable firmware via setup software, allowing for future enhancements.
Easy installation with 9-conductor flying leads simplifies setup and wiring.
Compatible with all existing EMX RFID tags, supporting wide deployment scenarios.
Ideal for access control in carwash kiosks, parking stations, residential gates, and more.
Designed with a 4 dBi circular polarized antenna for reliable and consistent tag detection.
Durable housing (5.5” x 1.3” x 3.5”) ensures robust operation in various environments.
Universal mounting bracket included for flexible installation options.
Works reliably in tight setups where short-range credential scanning is needed.
Effortless setup and configuration streamline the installation process.
| MODEL NAME | Patriot MR Mini UHF Passive RFID Reader |
| PRODUCT TYPE | Mid-Range RFID Reader |
| ANTENNA TYPE | Circular Polarized 4dBi Gain |
| OPERATING FREQUENCY | 902-928 MHz |
| READ RANGE | 6-10 ft. (dependent on tag and environment) |
| OUTPUT FORMATS | Wiegand (26-bit) and RS-232 |
| RF POWER | User-configurable (2-25 dBm) |
| READ INTERVAL | User-configurable |
| WIEGAND TIMING | User-configurable |
| INDICATORS | Integrated LED indicator and audible buzzer |
| TRIGGER INPUT | Yes, for controlled tag reading |
| DIMENSIONS | 5.5” x 1.3” x 3.5” |
| INSTALLATION | Easy installation with 9-conductor flying leads |
| MOUNTING OPTIONS | Universal mounting bracket included |
| FIRMWARE | Field-upgradable via setup software |
| COMPATIBILITY | Works with all EMX RFID tags (26-bit) |
| APPLICATIONS | Carwash kiosks, Parking kiosks, Residential gates, Tight space credential scanning |
| PART NUMBERS | PATRIOT-MR: PATRIOT-MR w/Universal Mounting Bracket |
Patriot MR Mid-Range UHF Passive RFID Reader from EMX Industries, Inc. is a compact and reliable RFID solution designed for access control applications requiring controlled, short- to mid-range credential detection. With an adjustable operating range of up to 10 feet, the Patriot MR delivers consistent performance in environments where precision and space efficiency are critical.
Compact Design with Reliable Performance
Engineered with a circular polarized 4 dBi antenna, the Patriot MR ensures dependable tag reads across a variety of vehicle and credential orientations. Its compact housing (5.5” x 1.3” x 3.5”) allows easy integration into existing systems and enclosures, including installations where the WEL-200 footprint is already in use. User-configurable RF power (2–25 dBm), read intervals, and Wiegand timing provide installers with flexible setup options.
- Mid-range RFID reader with up to 10 ft operating range
- User-adjustable RF power from 2–25 dBm
- Circular polarized 4 dBi integrated antenna
- Integrated LED indicator and audible buzzer for tag reads
- Trigger input for controlled and precise tag reading
Easy Integration and Installation
The Patriot MR supports 26-bit Wiegand and RS-232 outputs, making it compatible with a wide range of access control systems and EMX UHF RFID tags. Installation is simplified with 9-conductor flying leads and an included universal mounting bracket. Firmware can be upgraded in the field using setup software, ensuring long-term adaptability.
- Wiegand (26-bit) and RS-232 outputs
- Compatible with all EMX existing UHF RFID tags
- Field-upgradable firmware
- Universal mounting bracket included
Ideal Applications
This mid-range RFID reader is well-suited for installations where vehicles need credential scanning without rolling down windows, especially in space-constrained environments.
- Carwash kiosks
- Parking kiosks
- Residential gate systems
- Access control points with limited read-range requirements
The Patriot MR Mid-Range RFID Reader is an excellent choice for access control professionals seeking a dependable, compact RFID solution with flexible configuration options and seamless system integration.
Technical Specifications
- Model: PATRIOT-MR
- Technology: UHF Passive RFID
- Operating Frequency: 902–928 MHz
- Read Range: Up to 10 ft (tag and environment dependent)
- Antenna: Circular Polarized, 4 dBi Gain
- Outputs: 26-bit Wiegand, RS-232
- RF Power: Adjustable 2–25 dBm
- Housing Dimensions: 5.5” x 1.3” x 3.5”
- Indicators: LED and audible buzzer
- Mounting: Universal mounting bracket included
