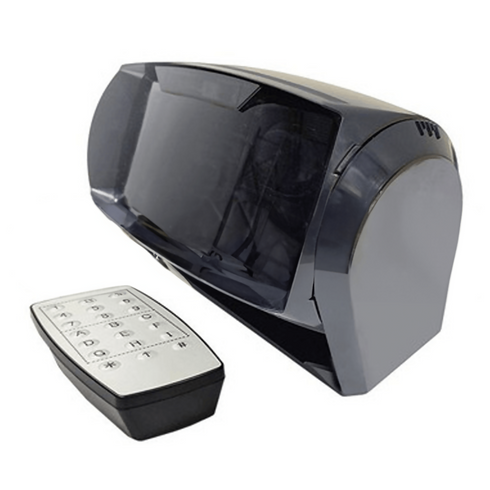

EMX 5417-2 OWL Microwave Motion Infrared Presence Sensor
This advanced motion and presence sensor combines microwave and infrared technologies to control automatic doors and industrial gates with precision. It detects vehicle motion while maintaining a customizable presence zone to enhance safety and reduce unnecessary door cycles. With dual configurable relay outputs and remote programming, it adapts easily to demanding industrial environments, helping protect people, vehicles, and equipment while improving operational efficiency.
- Combines microwave motion and infrared presence detection
- Distinguishes vehicles, pedestrians, and cross traffic
- Customizable detection zones with remote programming
- Dual configurable relay outputs for flexible integration
- Ideal for industrial doors, docks, and manufacturing sites
Utilizes advanced microwave and infrared technology to provide reliable motion and presence detection for vehicles and pedestrians.
Capable of distinguishing between cross traffic, pedestrian traffic, and vehicles to reduce false activations and optimize energy efficiency.
Features a highly customizable infrared presence detection zone for precise coverage tailored to application needs.
Equipped with two configurable relay outputs, allowing separate control of motion and presence detection events.
Supports a mounting height range of 11.5 to 21.3 ft (3.5 to 6.5 m), suitable for high-speed and industrial door installations.
Includes a remote control for flexible setup and easy adjustment of detection area, direction detection, and hold time.
Delivers door activation and protection in one compact unit, streamlining installation and reducing hardware requirements.
Offers adjustable filtering settings to ignore parallel traffic, minimizing unnecessary activations in busy environments.
Designed to conserve energy by reducing unnecessary door openings through precise detection capabilities.
Built for demanding environments with an IP65 environmental rating and a wide operating temperature range of -4 to 140°F.
Microwave sensor detects vehicle motion up to 23 ft (7 m) with a max width of 19.7 ft (6 m), and includes adjustable tilt angle for targeting.
Infrared sensor detects presence up to 18 ft (5.5 m) with a max width of 26.2 ft (8 m), ensuring full area coverage.
Provides adjustable relay hold times, from 30 seconds to infinite for presence and 500 ms for motion, enhancing control flexibility.
Compact design with dimensions of 9" x 5" x 5", and includes a 32 ft (10 m) cable for easy connection and installation.
Ideal for use in manufacturing facilities, car dealerships, loading docks, and as a pull cord replacement solution.
| MODEL NAME | EMX 5417-2 OWL Microwave Motion / Infrared Presence Sensor |
| FUNCTION | Vehicle motion and presence detection sensor |
| TECHNOLOGY | Microwave and infrared |
| APPLICATION | Automatic doors, industrial gates, audible alarms, warning lights, loading docks, car dealerships, manufacturing facilities |
| RELAY OUTPUTS | Two configurable relay outputs (NO or NC, adjustable) |
| MOUNTING HEIGHT | 11.5-21.3 ft (3.5-6.5 m) |
| REMOTE CONTROL | Yes, for programming and customization |
| CUSTOMIZABLE ZONE | Yes, infrared presence detection area customizable |
| SUPPLY VOLTAGE | 12-24 VDC/AC |
| MAX CURRENT DRAW | 150 mA @ 12 VDC |
| OPERATING TEMPERATURE | -4 to 140°F (-20 to 60°C) |
| OPERATING HUMIDITY | Below 80% |
| DIMENSIONS | 9" (229 mm) x 5" (127 mm) x 5" (127 mm) |
| CONNECTIONS | 32 ft (10 m) 8 conductor cable directly from sensor |
| ENVIRONMENTAL RATING | IP65 |
| VERTICAL DIRECTIONALITY | 16-32° wall or ceiling mount |
| HORIZONTAL DIRECTIONALITY | ± 10° |
| MICROWAVE OPERATING FREQUENCY | 24.150 GHz |
| MICROWAVE DETECTION RANGE | Up to 23 ft (7 m), depends on mounting and angle |
| MICROWAVE MAX WIDTH | 19.7 ft (6 m) |
| MICROWAVE RELAY CONTACT RATING | Max. 48 VDC / Max. 300 mA |
| MICROWAVE RELAY HOLD TIME | Typical 500 ms |
| MICROWAVE TILT ANGLE | -10 to 25° adjustable |
| INFRARED DETECTION RANGE | Up to 18 ft (5.5 m), depends on mounting and angle |
| INFRARED MAX WIDTH | 26.2 ft (8 m) |
| INFRARED RELAY CONTACT RATING | Max. 48 VDC / Max. 300 mA |
| INFRARED RELAY HOLD TIME | 30 sec to infinite (adjustable) |
| DOOR ACTIVATION | Yes, supports door activation and protection |
| DIRECTION DETECTION | Yes |
| ENERGY SAVING | Yes, by reducing unnecessary door openings |
| TRAFFIC FILTERING | Yes, can disregard parallel traffic |
| ADVANTAGES | Single unit for detection and protection, highly customizable, energy efficient |
| INDOOR/OUTDOOR USE | Suitable for both, with IP65 rating |
EMX 5417-2 OWL Microwave Motion / Infrared Presence Sensor from Alfa Iris is a dual-technology activation and safety sensor designed for reliable vehicle and pedestrian detection. Utilizing both microwave motion and infrared presence sensing, it provides precise control for automatic doors, industrial gates, and security systems in commercial and industrial environments.
Advanced Detection for Safety and Efficiency
The OWL Sensor distinguishes between vehicles, pedestrians, and cross traffic to reduce false triggers and improve energy efficiency. Its customizable presence detection zone and dual configurable relay outputs offer flexible setup, while a remote control enables easy adjustment of detection area, direction filtering, and hold times. Ideal for protecting people and goods, this sensor ensures optimal safety and activation performance.
- Dual microwave and infrared detection technology
- Two independent, configurable relay outputs
- Customizable presence zone via remote control
- Rejects parallel traffic with directional filters
- Reduces unnecessary door activations to save energy
Optimized for Industrial and Commercial Use
With a mounting height of 11.5 to 21.3 ft (3.5–6.5 m) and an IP65 environmental rating, the OWL Sensor is built for demanding applications such as high-speed doors, manufacturing facilities, and vehicle entry points. It replaces traditional pull cords and is compatible with alarm and light activation systems, making it versatile for various installations.
- High-speed doors and loading dock access
- Alarm and warning light activation
- Car dealerships and commercial entry points
- Manufacturing and warehouse safety systems
Installers and integrators will value the easy remote configuration and robust performance of the EMX 5417-2 OWL Sensor. A smart solution for motion detection and presence sensing where reliability and customization are essential.
Technical Specifications
- Model: EMX 5417-2 OWL
- Mounting Height: 11.5–21.3 ft (3.5–6.5 m)
- Supply Voltage: 12–24 VDC/AC
- Max Current Draw: 150 mA @ 12 VDC
- Operating Temp: -4°F to 140°F (-20°C to 60°C)
- Humidity: Below 80%
- Dimensions: 9" x 5" x 5" (229 x 127 x 127 mm)
- Connection: 32 ft (10 m) 8-conductor cable
- Environmental Rating: IP65
- Vertical Directionality: 16–32°, wall or ceiling mount
- Horizontal Directionality: ±10°
- Microwave (Motion): 24.150 GHz, Max Range: 23 ft (7 m), Max Width: 19.7 ft (6 m)
- Infrared (Presence): Max Range: 18 ft (5.5 m), Max Width: 26.2 ft (8 m)
- Relay Outputs: NO or NC (adjustable), 48 VDC max / 300 mA
- Relay Hold Time: Motion – 500 ms (typ.), Presence – 30 sec to infinite (adjustable)
