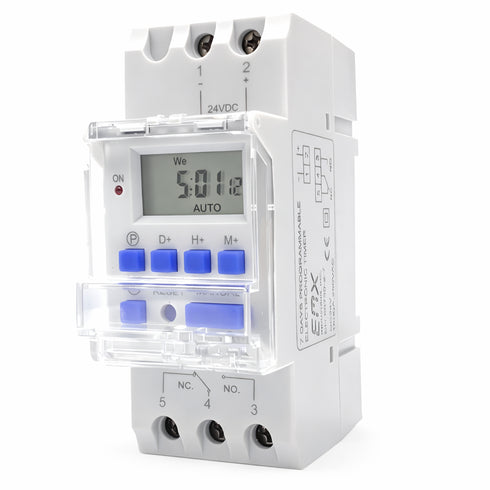

EMX-5407-2 PTM-24 Seven Day Programmable 24 VDC AC Timer
The EMX 5407 2 PTM 24 Seven Day Programmable 24 VDC AC Timer delivers reliable automated scheduling for gates, overhead doors, parking barriers, and access control systems. Designed for industrial and commercial environments, it supports up to 16 daily ON OFF events with 15 flexible weekly combinations. A large digital display and intuitive push buttons ensure simple configuration, while 90 day blackout memory protection preserves all settings during power loss. Built with durable ABS housing and DIN rail mounting, this timer provides dependable performance in demanding installations.
- Up to 16 ON OFF events per day with 15 weekly program combinations
- 90 day blackout memory backup protects settings during outages
- DIN rail mount design for secure and simple installation
- SPDT relay rated 16 A at 24 VDC AC and 120 VAC
- Ideal for gates doors parking barriers and automation systems
Seven-day programmable timer designed for automated access control systems including gates, overhead doors, and parking barriers.
Supports up to 16 ON/OFF events per day with 15 customizable daily program combinations for maximum scheduling flexibility.
Large digital display with intuitive push-button controls ensures quick, user-friendly programming and setup.
Available in 12V, 24V, and 120V models to provide versatile compatibility with a wide range of electrical systems.
Equipped with 90-day blackout memory backup to retain programmed settings during extended power outages.
Industrial-grade SPDT relay rated at 16A @ 24VDC / 120VAC for dependable performance in demanding applications.
Compact DIN rail mount design allows secure, space-saving installation inside control panels.
Integrated MOV surge protection devices safeguard the timer from electrical spikes and voltage surges.
Durable ABS plastic housing built to withstand commercial and industrial environments.
Operates efficiently in temperatures ranging from 14°F to 122°F (-10°C to 50°C) for reliable year-round performance.
Low current draw across all voltage options ensures energy-efficient standby and activated operation.
Five screw terminal connections provide secure and straightforward wiring integration.
Replaces discontinued EMX DTM-9 and ETM-17 timers for seamless system upgrades.
Includes DIN rail mount, battery backup, and user manual for complete installation and operation support.
:contentReference[oaicite:0]{index=0}| MODEL NAME | EMX-5407-2: PTM-24 – 24 VDC/AC Programmable Timer |
| PRODUCT NAME | EMX PTM Seven-Day Programmable Timer |
| BRAND | L.A Ornamental |
| MANUFACTURER | EMX |
| ITEM MODEL NUMBER | EMX-5407-2: PTM-24 – 24 VDC/AC |
| ASIN | B0F1W338HF |
| PRODUCT TYPE | Seven-Day Programmable Digital Timer |
| APPLICATION | Gates, overhead doors, parking barriers, automation systems |
| PROGRAMMING CAPACITY | Up to 16 ON/OFF events per day |
| DAILY PROGRAM OPTIONS | 15 different daily program combinations |
| DISPLAY TYPE | Large digital display |
| CONTROL INTERFACE | Push-button programming |
| POWER SUPPLY (MODEL) | 24 VDC/AC |
| AVAILABLE VOLTAGE OPTIONS | 12V, 24V, 120V models available |
| POWER CONSUMPTION (24V) | 15 mA standby, 37 mA activated |
| POWER CONSUMPTION (12V) | 6 mA standby, 46 mA activated |
| POWER CONSUMPTION (120V) | 33 mA standby and activated |
| RELAY CONTACT RATING | SPDT 16A @ 24 VDC / 120 VAC |
| CONNECTION TYPE | 5 screw terminals |
| MOUNTING TYPE | DIN rail mount |
| INSTALLATION | Compact design for panel installation |
| BLACKOUT MEMORY BACKUP | 90-day memory retention |
| BATTERY BACKUP | Integrated battery for memory protection |
| SURGE PROTECTION | Integrated MOV protection devices |
| OPERATING TEMPERATURE | 14°F to 122°F (-10°C to 50°C) |
| HOUSING MATERIAL | ABS plastic |
| CONSTRUCTION TYPE | Industrial-grade design |
| DIMENSIONS (L x W x H) | 3.41” x 1.42” x 2.70” (86.5 mm x 36 mm x 68.5 mm) |
| PRODUCT DIMENSIONS | 3.41 x 2.7 x 1.42 inches |
| WEIGHT | 0.2 lb (0.10 kg) |
| COLOR | White |
| MATERIAL | Alloy Steel and ABS Housing |
| REPLACES MODELS | EMX DTM-9 and ETM-17 |
| INCLUDED COMPONENTS | Programmable Timer Unit |
| INCLUDED MOUNT | DIN rail mount |
| INCLUDED ACCESSORIES | User manual |
| PROGRAM TYPE | 7-day programmable scheduling |
| EVENT CONTROL | Automatic ON/OFF scheduling |
| USE ENVIRONMENT | Commercial and industrial applications |
| MEMORY RETENTION PERIOD | Up to 90 days without power |
| DISPLAY VISIBILITY | Clear and easy-to-read screen |
| PROGRAMMING METHOD | Manual digital input |
| CURRENT DRAW TYPE | Low standby and activated consumption |
| RELAY TYPE | Single Pole Double Throw (SPDT) |
| MOUNT COMPATIBILITY | Standard DIN rail systems |
| WARRANTY | 1 Year Manufacturer Warranty |
| DATE FIRST AVAILABLE | March 18, 2025 |
| BEST SELLERS RANK | #139 in Electrical Timers |
| COUNTRY OF SALE | United States |
| INSTALLATION TYPE | Panel-mounted via DIN rail |
| AUTOMATION COMPATIBILITY | Access control and automation systems |
| PROGRAM FLEXIBILITY | Multiple daily combinations with 16 events per day |
EMX PTM Seven-Day Programmable Timer – EMX-5407-2: PTM-24 from Alfa Iris is a versatile and industrial-grade 7-day programmable timer designed for automated access control systems including gates, overhead doors, and parking barriers. With up to 16 ON/OFF events per day and 15 different daily program combinations, it delivers flexible and precise scheduling for commercial and industrial applications. This model operates on 24 VDC/AC and is ideal for facilities requiring reliable time-based automation.
Flexible Scheduling with Reliable Backup Protection
The EMX PTM-24 features a large digital display and intuitive push-button programming for quick and simple setup. Its built-in 90-day blackout memory protection ensures that all programmed settings remain stored during power outages. Designed to replace discontinued EMX DTM-9 and ETM-17 timers, this upgraded unit offers enhanced reliability and performance.
- Up to 16 programmable ON/OFF events per day
- 15 selectable daily program combinations
- 90-day memory backup during power loss
- Large digital display with user-friendly controls
- SPDT relay rated 16A @ 24VDC / 120VAC
Industrial-Grade Construction & Easy Installation
Built with durable ABS plastic housing, the PTM-24 is engineered for long-lasting performance in demanding environments. The compact design allows for convenient DIN rail mounting, making installation fast and secure. Integrated MOV surge protection devices safeguard the unit against electrical surges, ensuring dependable operation.
- 24 VDC/AC operation
- 15 mA standby / 37 mA activated current draw
- DIN rail mount configuration
- MOV surge protection built-in
- 5 screw terminal connections
Ideal Applications
The EMX PTM Seven-Day Timer is ideal for scheduled automation in access control systems where timed locking and unlocking are required. It is commonly used in commercial properties, industrial facilities, gated communities, and parking management systems.
- Automatic gate systems
- Overhead door scheduling
- Parking barrier control
- Commercial and industrial automation systems
Technical Specifications
- Model: EMX-5407-2 – PTM-24
- Voltage: 24 VDC/AC
- Current Draw: 15 mA standby / 37 mA activated
- Relay Contact Rating: SPDT 16A @ 24VDC / 120VAC
- Daily Program Options: 15 combinations
- Blackout Memory Protection: 90 days
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Housing: ABS plastic
- Mounting: DIN rail
- Connections: 5 screw terminals
- Dimensions (L x W x H): 3.41” x 1.42” x 2.70”
- Weight: 0.2 lb (0.10 kg)
- Manufacturer Warranty: 1 Year
Professionals seeking a reliable 24V programmable timer for automated gate and access control systems can depend on the EMX PTM-24 from Alfa Iris for precision scheduling, surge protection, and long-term durability. Available through trusted USA access control and CCTV dealers. :contentReference[oaicite:0]{index=0}
