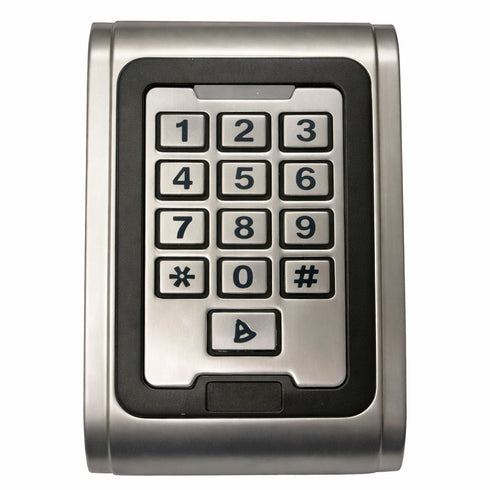

EMX-5401-1 CR-2000 RFID Proximity Reader With Keypad Waterproof Access Control

EMX 5401-1 CR-2000 RFID Proximity Reader with Keypad is a durable and waterproof access control solution designed for secure entry management of doors, gates, and barrier arms. Supporting up to 2,000 users, this versatile reader allows access via Mifare smart cards and/or PIN codes, making it ideal for residential communities, commercial facilities, and industrial sites. With Wiegand output capability, it integrates seamlessly with most standard access control systems while also offering standalone operation.

Secure, Waterproof & Built for Outdoor Use

Housed in a rugged vandal-resistant metal enclosure, the CR-2000 is engineered to perform in demanding outdoor environments. It features a luminous back-lit keypad for easy nighttime visibility, built-in tamper alarm, and short circuit protection to safeguard your installation. Designed with low power consumption of less than 30mA standby current, this reader ensures efficient and reliable long-term operation.

• Supports up to 2,000 card and/or PIN users
• Reads Mifare RFID smart cards
• Wiegand output and relay output
• Waterproof, vandal-resistant metal housing
• Back-lit keypad for low-light environments
• Tamper alarm and short circuit protection
• Low standby current < 30mA

Flexible Integration & Standalone Capability

The EMX 5401-1 CR-2000 operates on 9–28 VDC and provides adjustable activation time from 0 to 99 seconds. With a read range of 1.1" to 3.1", it delivers reliable proximity detection while maintaining secure credential validation. The keypad allows easy deletion of lost or compromised cards directly from the device. This reader can function as a standalone access controller or connect to larger systems through its Wiegand interface for centralized monitoring.

• Standalone or integrated system operation
• Adjustable relay activation (0–99 seconds)
• Electric lock output ≤ 3A
• Alarm output ≤ 20A
• Door call button included
• Operating temperature: -13°F to 140°F (-25°C to 60°C)
• Humidity tolerance: 10%–90%

Ideal for securing pedestrian gates, entry doors, barrier arms, and perimeter access points, the EMX 5401-1 CR-2000 RFID Proximity Reader with Keypad offers dependable performance, enhanced security features, and easy installation for professional access control applications.

Technical Specifications

• Model: EMX-5401-1 (CR-2000)
• Technology: RFID induction (Mifare smart card compatible)
• User Capacity: 2,000 users (card and/or PIN)
• Operating Voltage: 9–28 VDC
• Standby Current: ≤ 30mA
• Read Range: 1.1" (3cm) – 3.1" (8cm)
• Electric Lock Output: ≤ 3A
• Alarm Output: ≤ 20A
• Short Circuit Protection Time: ≤ 100µS
• Activation Time: 0–99 seconds (adjustable)
• Operating Temperature: -13°F (-25°C) to 140°F (60°C)
• Dimensions: 4.74" (120mm) x 2.2" (56mm) x 0.71" (18mm)
• Construction: Waterproof metal housing

Backed by a 2-Year Limited Manufacturer Warranty, the EMX 5401-1 CR-2000 delivers secure, weather-resistant access control performance for both residential and commercial installations.
