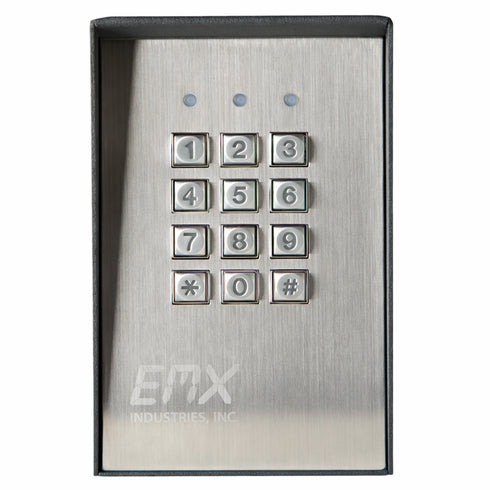

EMX-5400-2 KPX100 Weatherproof Dual Relay Keypad Access Control
The KPX 100 is a durable dual relay programmable keypad designed for secure access control in demanding environments. Featuring a stainless steel faceplate, metal backlit keys, and rugged housing, it delivers reliable performance for high traffic residential, commercial, and industrial installations. With support for up to 100 users on relay one and 10 users on relay two, this weather resistant keypad offers flexible entry management. Its IP66 rating ensures dependable operation in outdoor conditions, while versatile mounting options allow installation on walls, posts, or goosenecks.
- Supports 100 users on relay one and 10 users on relay two
- Operates on 12 to 24 volts AC or DC
- IP66 weatherproof and vandal resistant construction
- Stainless steel faceplate with metal backlit keys
- Wall post or gooseneck mounting options
Supports up to 100 programmable users on Relay 1 and 10 programmable users on Relay 2, providing flexible access control for multiple entry points.
Operates on 12–24VAC/DC without the need for jumper selection, allowing for quick and straightforward installation.
Constructed with a durable 1.5mm stainless steel faceplate for enhanced strength and vandal resistance.
Features cast metal, backlit key buttons that ensure visibility in low-light conditions and long-term durability.
Designed with a rugged anodized steel housing and powder coat finish to withstand high-traffic and harsh environments.
Rated IP66 for all-weather performance, offering reliable protection against dust, rain, and outdoor elements.
Dual relay outputs include Relay 1 rated at 5A @ 30VDC and Relay 2 rated at 1A @ 30VDC, each with NO/COM/NC contacts for versatile integration.
Operates within a wide temperature range of -22°F to 159°F (-30°C to 70°C) and 5–95% non-condensing humidity for dependable performance in extreme climates.
Low current consumption from 15mA standby to 100mA with both relays activated, promoting energy-efficient operation.
Mounts easily on walls, posts, or gooseneck pedestals, offering flexible installation options for various gate applications.
Compact dimensions of 6.15” H x 4.1” W x 2.75” D allow for convenient placement without sacrificing functionality.
Backed by a 2-year limited manufacturer warranty for added reliability and peace of mind.
:contentReference[oaicite:0]{index=0}| MODEL NAME | EMX 5400-2 KPX-100 Keypad - Weatherproof |
| MANUFACTURER | EMX |
| MPN | EMX-5400-2 |
| PRODUCT TYPE | Programmable Keypad |
| APPLICATION | Access Control for Gates and Doors |
| USER CAPACITY RELAY 1 | Up to 100 Users |
| USER CAPACITY RELAY 2 | Up to 10 Users |
| NUMBER OF RELAYS | Dual Relay Output |
| RELAY OUTPUT 1 RATING | 5A @ 30VDC Max (NO/COM/NC) |
| RELAY OUTPUT 2 RATING | 1A @ 30VDC Max (NO/COM/NC) |
| OPERATING VOLTAGE | 12V – 24V AC/DC (No Jumper Required) |
| POWER INPUT TYPE | AC or DC |
| CURRENT CONSUMPTION (STANDBY) | 15 mA |
| CURRENT CONSUMPTION (ACTIVE) | Up to 100 mA (Two Relays Activated) |
| OPERATING TEMPERATURE RANGE | -22°F to 159°F (-30°C to 70°C) |
| HUMIDITY RANGE | 5% – 95% Relative Humidity (Non-Condensing) |
| ENVIRONMENTAL RATING | IP66 Weatherproof |
| WEATHER RESISTANCE | All-Weather, Vandal Resistant |
| MOUNTING OPTIONS | Wall, Post, or Gooseneck Mount |
| HOUSING MATERIAL | Anodized Steel with Powder Coat Paint & ABS Plastic |
| FACEPLATE MATERIAL | 1.5mm Stainless Steel |
| KEYPAD BUTTON TYPE | Cast Metal Back-Lit Keys |
| KEYPAD ILLUMINATION | Backlit for Low-Light Visibility |
| DIMENSIONS (HEIGHT) | 6.15 in (156 mm) |
| DIMENSIONS (WIDTH) | 4.1 in (103 mm) |
| DIMENSIONS (DEPTH) | 2.75 in (70 mm) |
| INSTALLATION TYPE | Surface Mount |
| PROGRAMMABLE | Yes |
| ACCESS METHOD | PIN Code Entry |
| RELAY CONTACT TYPE | Normally Open / Normally Closed / Common |
| USAGE ENVIRONMENT | Indoor and Outdoor |
| CONSTRUCTION TYPE | Rugged Metal Housing |
| VANDAL RESISTANCE | Heavy-Duty Metal Design |
| COMPATIBILITY | Compatible with Most Gate Operators and Access Control Systems |
| WIRING REQUIREMENTS | Standard Low-Voltage Wiring |
| NUMBER OF KEYS | 12-Key Layout |
| KEY CONSTRUCTION | Solid Cast Metal |
| BACKLIGHT COLOR | Integrated Illumination (Color Not Specified) |
| SECURITY LEVEL | Commercial / High-Traffic Applications |
| IDEAL INSTALLATION AREAS | Gated Communities, Commercial Properties, Industrial Facilities |
| WEIGHT | Not Specified |
| WARRANTY | 2-Year Limited Manufacturer Warranty |
| CERTIFICATIONS | IP66 Rated |
| FINISH | Powder Coated Steel |
| DESIGN TYPE | Industrial Grade |
| CONTROL OUTPUT TYPE | Dry Contact Relay Output |
| NUMBER OF ACCESS CODES | Up to 110 Total Codes |
| PROGRAMMING METHOD | On-Board Keypad Programming |
| POWER REQUIREMENT | 12–24VAC/DC Power Supply Required |
| OPERATING MODE | Stand-Alone Access Control |
| RELAY ACTIVATION | Code-Based Trigger |
| PRODUCT CATEGORY | Gate Access Keypad |
EMX 5400-2 KPX-100 Keypad from EMX is a durable, dual-relay programmable access keypad designed for high-traffic and harsh outdoor environments. Featuring a rugged metal housing, stainless steel faceplate, and cast metal backlit keys, this keypad delivers dependable performance for residential, commercial, and industrial gate access control applications. With support for up to 100 users on Relay 1 and 10 users on Relay 2, it provides flexible entry management for multi-door or multi-gate installations.
Built for Harsh Environments & High Traffic Use
Engineered with an IP66 weatherproof and vandal-resistant rating, the KPX-100 is built to withstand rain, dust, humidity, and extreme temperatures. The heavy-duty anodized steel housing with powder coat finish ensures long-lasting durability, while the stainless steel faceplate enhances protection against tampering and corrosion. Its illuminated metal keys improve visibility in low-light conditions, making it ideal for perimeter gates, parking facilities, and secured entry points.
- Dual relay outputs for multi-gate or door control
- 100 users (Relay 1) / 10 users (Relay 2)
- IP66 weatherproof and vandal-resistant construction
- Cast metal backlit keys for durability and visibility
- Stainless steel faceplate with rugged metal housing
Flexible Installation & Easy Integration
The EMX 5400-2 operates on 12–24VAC/DC with no jumper selection required, simplifying installation and reducing setup time. Designed for wall, post, or gooseneck mounting, it integrates seamlessly with gate operators, magnetic locks, electric strikes, and other access control systems. Low standby current consumption ensures efficient performance, even in solar-powered or battery-backed systems.
- Operating Voltage: 12–24VAC/DC (auto-sensing)
- Mounting options: Wall, Post, or Gooseneck
- Compatible with gate operators and access control systems
- Ideal for residential, commercial, and industrial properties
Reliable Performance with Advanced Features
The KPX-100 provides Normally Open, Normally Closed, and Common relay contacts for flexible wiring configurations. Built to perform in extreme temperatures ranging from -22°F to 159°F, it is suitable for virtually any climate. With its programmable functionality and durable construction, this keypad offers professional-grade access control at an economical price point.
- Relay 1: 5A @ 30VDC max (NO/NC/COM)
- Relay 2: 1A @ 30VDC max (NO/NC/COM)
- Ambient Temperature: -22°F to 159°F
- Humidity: 5–95% non-condensing
- 2-Year Limited Manufacturer Warranty
Technical Specifications
- Model: EMX-5400-2 (KPX-100)
- Users: 100 (Relay 1) / 10 (Relay 2)
- Input Power: 12–24VAC/DC
- Current Consumption: 15mA standby / 100mA (two relays activated)
- Environmental Rating: IP66
- Dimensions: 6.15” H x 4.1” W x 2.75” D
- Housing: Anodized steel with powder coat finish
- Faceplate: 1.5mm Stainless Steel
- Keypad: Cast metal backlit keys
