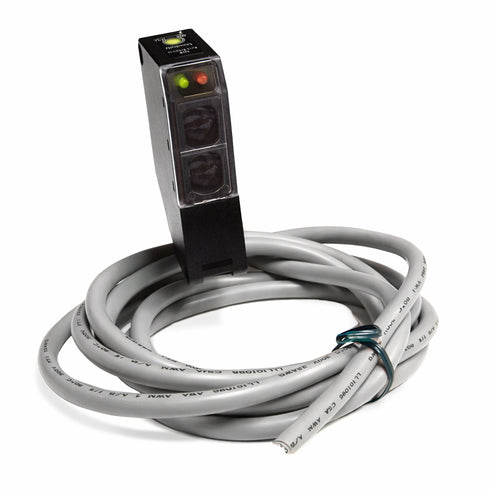

EMX-5200-K NIR Retro-Reflective Photo Eye Sensor for Gates and Doors
This retro-reflective photo eye sensor provides reliable entrapment protection for commercial gates, overhead doors, and parking barriers. It features a 30-foot sensing range, adjustable sensitivity, and fast response time for dependable operation. Designed with a compact IP66-rated enclosure, it withstands harsh outdoor environments. Flexible voltage compatibility supports a wide range of installations, making it suitable for new systems or upgrades requiring consistent safety detection.
Offers a 30-foot retro-reflective sensing range ideal for overhead doors, gates, and parking barriers.
Provides entrapment protection with precise sensitivity adjustment for tailored operation.
Encased in a watertight IP66-rated enclosure for reliable performance in harsh weather conditions.
Operates across a wide voltage range: 12–240V DC and 24–240V AC, ensuring system compatibility.
Features a rapid response time of 10 milliseconds to enhance safety and minimize delays.
Includes LED indicators for easy status monitoring and alignment during installation.
Kit version comes complete with photoeye and reflector hoods, plus mounting bracket and hardware.
Compact design with dimensions of 2.5" H x 1.5" D x 0.75" W fits into tight installation areas.
6-foot lead wire provided for flexible mounting and quick electrical connections.
Fail-safe relay output supports 125V AC (0.6A), 110V DC (0.6A), and 30V DC (2A) for secure integration.
Certified to CE standards, supporting regulatory compliance and international installation.
Supports straightforward DIY installation with included mounting accessories.
Available in sensor-only or complete kit configurations to match various installation needs.
Withstands operating temperatures from -20°C to +55°C (-4°F to +131°F), making it suitable for extreme environments.
Backed by a 2-year limited manufacturer warranty for peace of mind and product reliability.
| MODEL NAME | EMX 5200 NIR Retro-Reflective Photo Eye |
| SENSOR TYPE | Retro-reflective photoeye sensor |
| APPLICATION | Entrapment protection for commercial overhead doors, gates, and parking barriers |
| SENSING RANGE | 30 feet |
| ENCLOSURE RATING | IP66 Watertight |
| SENSITIVITY | Adjustable |
| INCLUDED IN KIT | Photoeye with hood, reflector with hood, mounting bracket with hardware |
| OPERATING TEMPERATURE | -20°C to +55°C (-4°F to +131°F) |
| OPERATING VOLTAGE | 12–240 Volts DC, 24–240 Volts AC |
| RESPONSE TIME | 10 ms maximum |
| FAIL SAFE RELAY OUTPUT | 125V AC 0.6A, 110V DC 0.6A, 30V DC 2A |
| CERTIFICATIONS | CE |
| DIMENSIONS | H = 2.5", D = 1.5", W = 0.75" |
| LEAD WIRE | 6 feet |
| MOUNTING TYPE | Bracket mount |
| ENVIRONMENTAL PROTECTION | Outdoor, watertight enclosure |
| VOLTAGE FLEXIBILITY | Operates on wide voltage range AC/DC |
| INDICATORS | LED indicators for alignment and status |
| UL COMPLIANCE | Not UL Compliant |
| WARRANTY | 2-Year Limited Manufacturer Warranty |
EMX 5200 NIR Retro-Reflective Photo Eye is designed for dependable entrapment protection in commercial gate, overhead door, and parking barrier applications. With a compact design and broad voltage compatibility, this sensor simplifies installation and maintenance while ensuring safety and performance across various site conditions.
High-Performance Sensing and Safety
Built for demanding environments, the EMX 5200 features a watertight IP66 enclosure and a robust 30' sensing range. Its retro-reflective design with adjustable sensitivity ensures reliable detection while minimizing false triggers. The kit version includes a photoeye and reflector with protective hoods and a mounting bracket for quick setup.
- 30-foot detection range
- Retro-reflective sensing with sensitivity adjustment
- IP66-rated watertight enclosure for outdoor use
- Available as photoeye only or full kit with reflector and bracket
- LED indicators for alignment and signal feedback
Flexible Installation and Compatibility
The EMX 5200 supports a wide operating voltage from 12–240V DC and 24–240V AC, making it compatible with most gate and access control systems. With a fast 10 ms response time and fail-safe relay output, it provides responsive and secure access control. Its durable, compact form is ideal for space-constrained installations in commercial or industrial settings.
- Overhead doors and parking gates
- Commercial gate systems
- Barrier arms and security perimeters
Installers and safety professionals rely on the EMX 5200 NIR Photo Eye for consistent performance and simplified installation in rugged outdoor environments. It’s a trusted component in modern access and safety solutions.
Technical Specifications
- Model: EMX 5200
- Detection Range: 30 feet
- Output: Fail-safe relay
- Voltage: 12–240V DC / 24–240V AC
- Response Time: 10 ms max
- Environmental Protection: IP66 rated
- Operating Temperature: -20°C to +55°C (-4°F to +131°F)
- Dimensions: H = 2.5", D = 1.5", W = 0.75"
- Lead Wire: 6 feet
- Certifications: CE
